JK Audio CON2X6
2x6 Switch Core

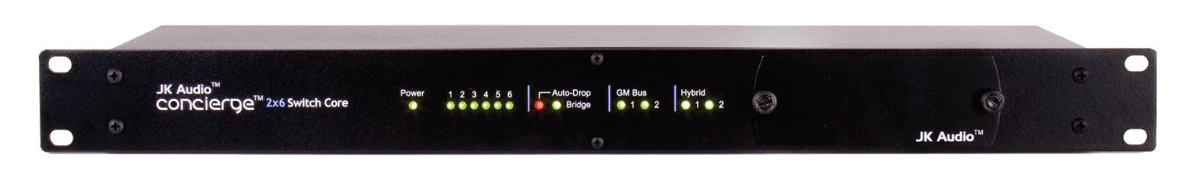

The JK Audio Conciergeâ„¢ 2x6 switch core allows connection of two hybrids across six phone lines.
Learn More
Our Price: $897.75
List Price: $945.00
You save 5%!
Write the first review.
JK Audio CON2X6
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The JK Audio Conciergeâ„¢ 2x6 switch core allows connection of two hybrids across six phone lines. The switch matrix routes six incoming analog phone lines to either one or two JK Audio innkeeper 1rxâ„¢ single channel Digital Hybrids, or one innkeeper 2â„¢ Digital Hybrid. A firmware upgrade is all that is required to make most older model INN 1x/INN 1rx and INN 2 hybrids compatible with this new system. See page 11 for innkeeper compatibility.

Concierge adds music on hold input, auxiliary phone integration, and intuitive call control. The end result is a powerful, flexible system featuring excellent call screening capabilities, while allowing two studios to share the phone lines.

Two Concierge switch cores can be bridged together, providing six additional phones lines for a 2 hybrid, 12 line system.

Up to eight Guest Module control surfaces can be added to provide remote control of the switch matrix over CAT5 cable. Guest Modules are hot swappable without losing calls, and feature line selection buttons that change color to indicate call status.

JK Audio Concierge 2x6 Specifications:

  • Phone Lines (6)
    • Connector: RJ-11C
    • Isolation: 1500 VAC
    • Ringer: 0.5B REN
  • Hold Audio Line Input
    • Connection: 3.5mm mono
    • Impedence: 20k ohms
    • Level: (-10 dBu) nom.
  • USB
    • Connector: Type B
    • Standard: v2.0
  • Power
    • Power: 120-240 VAC, 50-60 Hz, 25 Watts max
    • Connector: IEC320-C14
  • Dimensions
    • Size: 1.75 x 7.3 x 19" (4.5 x 18.6 x 48.3 cm)
    • Weight: 5.4 lbs (2.4 kg)
