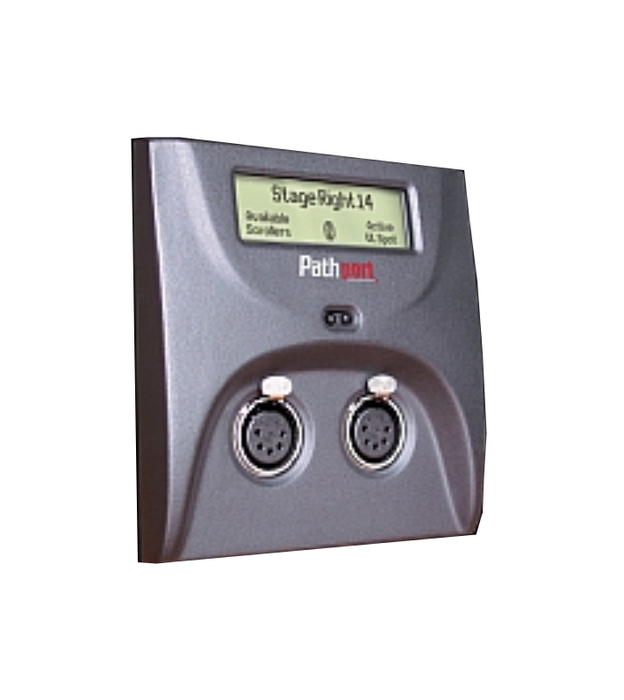

Pathway Connectivity 6202
Pathport C-Series Node With Two DMX Outputs

OUR PART #  P6202

Our Price: $768.66
List Price: $830.00
You save 7%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Patway Connectivity 6202 Pathport C-Series nodes are suitable for permanent wall installation or portable use.

Supports:

  • Strand ShowNet
  • Pathport
  • ArtNet
  • E1.31 streaming ACN (sACN/Net3)
  • ETC Net2 (output only)

Pathway Connectivity 6101 Features:

  • Supports ETC Net2 as an DMX output node
  • Crossfade between inputs on loss or gain of signal
  • E1.31 streaming ACN input priority and magic channel input selection
  • Works with both final draft and ANSI standard streaming ACN
  • Two DMX512 ports
  • Distribute up to 128 DMX universes
    • Powerful DMX routing capabilities
    • Patch on a universe or channel-by-channel basis
  • Fully compliant with E1.20 Remote Device Management standard
  • Discover up to 256 RDM-enabled devices per node
  • Many DMX network products in one:
  • Channel patch
  • Backup switch
  • Priority switch
  • Merger
  • Manager
  • LCD screen provides status feedback and soft-labelling capabilities
  • Powered directly over Ethernet Cat 5 cable (POE)
  • Easy system configuration
  • Low installed cost
  • Fits in a standard recessed 2 gang electrical backbox
  • ETL listed

Pathway Connectivity 6202
Pathport C-Series Node With Two DMX Outputs

OUR PART #  P6202

Product Information:

The Patway Connectivity 6202 Pathport C-Series nodes are suitable for permanent wall installation or portable use.

Supports:

  • Strand ShowNet
  • Pathport
  • ArtNet
  • E1.31 streaming ACN (sACN/Net3)
  • ETC Net2 (output only)

Pathway Connectivity 6101 Features:

  • Supports ETC Net2 as an DMX output node
  • Crossfade between inputs on loss or gain of signal
  • E1.31 streaming ACN input priority and magic channel input selection
  • Works with both final draft and ANSI standard streaming ACN
  • Two DMX512 ports
  • Distribute up to 128 DMX universes
    • Powerful DMX routing capabilities
    • Patch on a universe or channel-by-channel basis
  • Fully compliant with E1.20 Remote Device Management standard
  • Discover up to 256 RDM-enabled devices per node
  • Many DMX network products in one:
  • Channel patch
  • Backup switch
  • Priority switch
  • Merger
  • Manager
  • LCD screen provides status feedback and soft-labelling capabilities
  • Powered directly over Ethernet Cat 5 cable (POE)
  • Easy system configuration
  • Low installed cost
  • Fits in a standard recessed 2 gang electrical backbox
  • ETL listed
