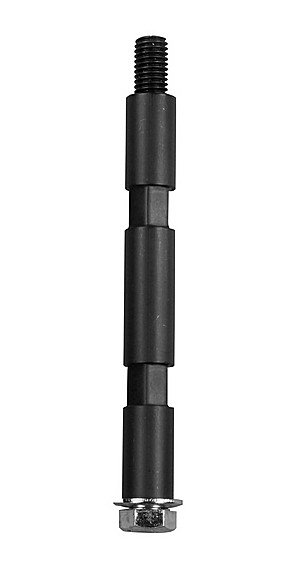

The Light Source MDDB36
36" Mega Drop Down in Black

OUR PART #  MDDB36

Our Price: $37.50
List Price: $47.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

A quick and inexpensive way to place a light fixture below piping or a grid, the Light Source's MDDB36 Mega-Drop Down features wrench flats for easy adjustment. The MDDB36 is made from solid .75" diameter aircraft-grade aluminum. The Mega-Drop Down has a 1/2"-13 tpi x 2" steel stud to fasten onto a Mega-Clamp, or similar clamp that has 1/2"-13 female threads. The Mega-Drop Down's lower end has 1/2-13 female threads to bolt the light fixture's yoke to the drop down with a 1/2"-13 x 1" grade 5 zinc-plated bolt and Belleville washer. When affixing the Drop Down to the Mega-Clamp, use Loctite Red or other permanent thread-locking compound to help ensure a secure connection.

The Light Source MDDB36 Specifications:

  • Safe Vertical Working Load: 600 lbs
  • Hardware:
    • 1/2-13 tpi x 2" Steel stud to fasten into a Mega-Clamp
    • 1/2"-13 × 1" grade 5 hex head zinc-plated cap screw with our HBW1 Belleville washer
  • Dimensions: 0.75" diameter x 36"
  • Weight: 1.7 lbs

The Light Source MDDB36
36" Mega Drop Down in Black

OUR PART #  MDDB36

Product Information:

A quick and inexpensive way to place a light fixture below piping or a grid, the Light Source's MDDB36 Mega-Drop Down features wrench flats for easy adjustment. The MDDB36 is made from solid .75" diameter aircraft-grade aluminum. The Mega-Drop Down has a 1/2"-13 tpi x 2" steel stud to fasten onto a Mega-Clamp, or similar clamp that has 1/2"-13 female threads. The Mega-Drop Down's lower end has 1/2-13 female threads to bolt the light fixture's yoke to the drop down with a 1/2"-13 x 1" grade 5 zinc-plated bolt and Belleville washer. When affixing the Drop Down to the Mega-Clamp, use Loctite Red or other permanent thread-locking compound to help ensure a secure connection.

The Light Source MDDB36 Specifications:

  • Safe Vertical Working Load: 600 lbs
  • Hardware:
    • 1/2-13 tpi x 2" Steel stud to fasten into a Mega-Clamp
    • 1/2"-13 × 1" grade 5 hex head zinc-plated cap screw with our HBW1 Belleville washer
  • Dimensions: 0.75" diameter x 36"
  • Weight: 1.7 lbs
