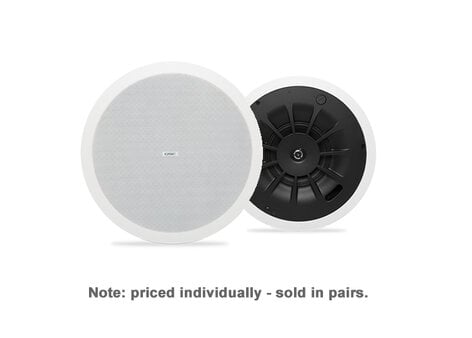

QSC AD-C6T-LP
Ceiling Speaker

OUR PART #  AD-C6T-LP

Our Price: $200.00
(Low Price Guarantee)

This product must be purchased in multiples of 2

Qty: Free Shipping Available Special Order Item

Usually ships in 7-14 business days.
Need it sooner? Call us!

The QSC AD-C6T-LP is a ceiling speaker with consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications. It also has DMT (Directivity Matched Transition™) waveguide which ensures smooth, uniform frequency response over the coverage area. Other features include snap-fit magnetic grille, and blemish-free removable logo.

QSC AD-C6T-LP Features:

  • Consistent tonal characteristics across the entire Acoustic Design™ family in both surface or ceiling applications
  • DMT (Directivity Matched Transition™) wave guide ensures smooth, uniform frequency response over the coverage area
  • Snap-fit magnetic grille
  • 3x double stepped, long travel dog-ear blind mount system
  • Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms, including CXD amplifiers
  • Low-saturation and low-loss 70/100V transformers with16 Ohm bypass
  • Blemish-free removable logo
  • Removable conduit cover plate, also available asaccessory for pre-install wiring
  • Complete EASE, CF2, CAD, & BIM information available online

QSC AD-C6T-LP Specifications:

  • Effective frequency range: 65 Hz – 20 kHz
  • Rated noise power / voltage: 60 watts / 31 volts(rms)
  • Sensitivity [dB]: 88
  • Rated coverage (-6 dB): 140° conical DMT
  • Directivity factor (Q): 6.5
  • Directivity index (DI) [dB]: 8
  • Maximum continuous SPL [dB]: 106
  • Maximum peak SPL [dB]: 112
  • Nominal impedance [ohms]: 16
  • Recommended amplifier: 120 watts
  • LF transducer: 165 mm [6.5 in] weather resistant paper cone woofer
  • HF transducer: 25 mm [1 in] aluminum dome tweeter
  • Input connector type: Euroblock connector with parallel output
  • Enclosure material: ABS baffle on powder coated steelback can
  • Grille material: Powder coated steel
  • Operating environment: Designed for indoor use
  • Operating temperature range: -20 to 50° C [-4 to 122°F]
  • Cutout dimension: Ø 305 mm [Ø 12 in]
  • Net weight: 4.2 kg [9.3 lb]
  • Product dimensions (Diameter x Height): Ø 340 x 100mm [Ø 13.37 x 3.95 in.]
  • Shipping weight: 13.3 kg [29.3 lb] (pair packed)
  • Shipping dimensions (H x W x D): 178 x 864 x 470 mm[7 x 34 x 18.5 in] (pair packed)
  • Included accessories: C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille

QSC AD-C6T-LP
Ceiling Speaker

OUR PART #  AD-C6T-LP

Product Information:

The QSC AD-C6T-LP is a ceiling speaker with consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications. It also has DMT (Directivity Matched Transition™) waveguide which ensures smooth, uniform frequency response over the coverage area. Other features include snap-fit magnetic grille, and blemish-free removable logo.

QSC AD-C6T-LP Features:

  • Consistent tonal characteristics across the entire Acoustic Design™ family in both surface or ceiling applications
  • DMT (Directivity Matched Transition™) wave guide ensures smooth, uniform frequency response over the coverage area
  • Snap-fit magnetic grille
  • 3x double stepped, long travel dog-ear blind mount system
  • Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms, including CXD amplifiers
  • Low-saturation and low-loss 70/100V transformers with16 Ohm bypass
  • Blemish-free removable logo
  • Removable conduit cover plate, also available asaccessory for pre-install wiring
  • Complete EASE, CF2, CAD, & BIM information available online

QSC AD-C6T-LP Specifications:

  • Effective frequency range: 65 Hz – 20 kHz
  • Rated noise power / voltage: 60 watts / 31 volts(rms)
  • Sensitivity [dB]: 88
  • Rated coverage (-6 dB): 140° conical DMT
  • Directivity factor (Q): 6.5
  • Directivity index (DI) [dB]: 8
  • Maximum continuous SPL [dB]: 106
  • Maximum peak SPL [dB]: 112
  • Nominal impedance [ohms]: 16
  • Recommended amplifier: 120 watts
  • LF transducer: 165 mm [6.5 in] weather resistant paper cone woofer
  • HF transducer: 25 mm [1 in] aluminum dome tweeter
  • Input connector type: Euroblock connector with parallel output
  • Enclosure material: ABS baffle on powder coated steelback can
  • Grille material: Powder coated steel
  • Operating environment: Designed for indoor use
  • Operating temperature range: -20 to 50° C [-4 to 122°F]
  • Cutout dimension: Ø 305 mm [Ø 12 in]
  • Net weight: 4.2 kg [9.3 lb]
  • Product dimensions (Diameter x Height): Ø 340 x 100mm [Ø 13.37 x 3.95 in.]
  • Shipping weight: 13.3 kg [29.3 lb] (pair packed)
  • Shipping dimensions (H x W x D): 178 x 864 x 470 mm[7 x 34 x 18.5 in] (pair packed)
  • Included accessories: C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille
