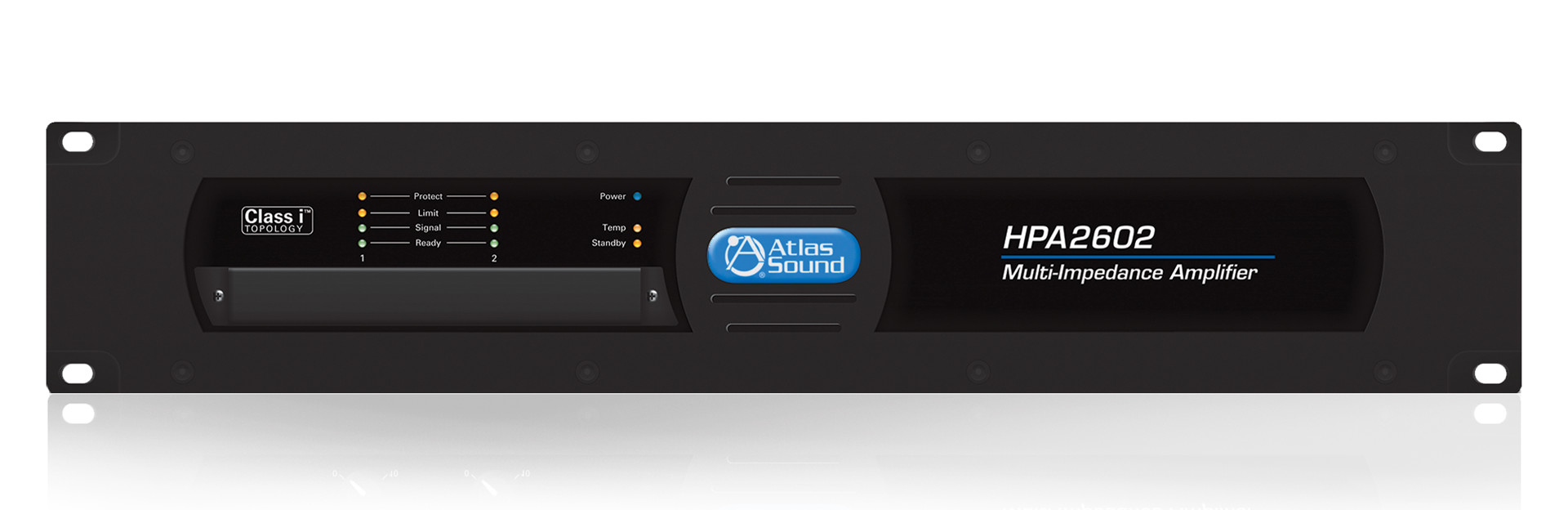

Atlas Sound HPA2602
3200 W High Performance, Dual Channel Commercial Amplifier

OUR PART #:  HPA2602

The Atlas Sound HPA2602 is a 3200 W high performance, dual channel commercial amplifier.
Learn More
Our Price: $1,392.50
List Price: $1,739.95
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound HPA2602
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound HPA2602 is a 3200 W high performance, dual channel commercial amplifier.

The AtlasIED High Power Amplifier “HPA” Series has been designed to be versatile for uses in both commercial 70V distributed systems and professional applications that require amplifiers to handle 4 and 2 ohm loads. The HPA is compact and lightweight in comparison to other models delivering the similar power levels. The HPA Series features generation II Class I Output topology that gives the efficiency close to a Class D amplifier with the sound quality of a Class AB amplifier. The power supply is switch mode global auto sensing gen 3 design that maintains a stable output during fluxuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and
current to virtually any loudspeaker load.

The HPA Series features front panel detented level controls with a security cover, remote turn on, balanced inputs, fault reporting and an accessory card slot for an optional Dante™ 2-channel digital audio interface. Cooling is not an issue because of the unique output stage low resistance direct couple thermal transfer design. HPA also is energy efficient and meets Energy Star standards with only drawing 1W of power in standby mode.

Atlas Sound HPA2602 Features:

  • 70.7V and 2 Ohm, 4 Ohm, and 8 Ohm Output Configurable
  • Balanced Inputs Euro Block Phoenix Style Connector
  • High Efficiency Fan Cooling
  • Remote Turn On
  • Accessory Card Slot for Optional Dante™ DigitalNetwork Audio Card
  • Short-Circuit, Temperature, and DC Offset Protection
  • Soft Clip Limiter Protection
  • Stepped Attenuators with Security Covers
  • Stereo, Bridge, or Parallel Operating Modes Selectablevia Rear Mounted Switch
  • Auto Sensing 120V/220V AC Mains Power Supply
  • Meets Energy Star Standards - 1W Standby Mode

Atlas Sound HPA2602 Specifications:

  • Power Output:
    • 70.7V: 2 x 1300W
    • 100V: NA
    • 8 Ohm: 2 x 800W
    • 4 Ohm: 2 x 1300W
    • 2 Ohm: 2 x 1800W
    • 8 Ohm Bridged: 1 x 2500W
    • 4 Ohm Bridged: 1 x 3200W
    • THD: < 0.05%
    • Frequency Response: 20 Hz - 20kHz
    • Signal to Noise Ratio: > 85dB
    • Channels: Two
    • Connector Type: Terminal Block &amp; Phoenix
    • Number of Fans: 1 - Variable Speed
    • BTU All Channels Driven AES: 4265 BTU (70.7V, 120VAC)
    • Max Current All Channels Driven Continuous: 30.7A
    • Rack Units  2 RU
    • Dimensions (H x W x D): 3.5 x 19 x 15" (89 x 483 x 381 mm)
    • Weight: 33 lbs. (15kg)
    • Finish: Black
