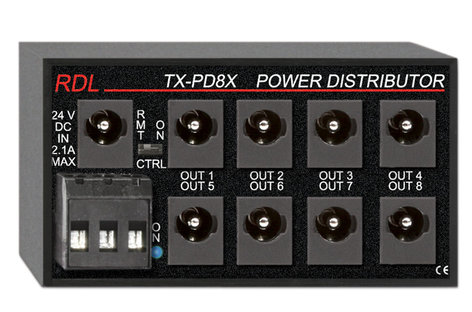

Radio Design Labs TX-PD8X
24 Vdc Switching Power Supply Distributor

OUR PART #  TX-PD8X

Our Price: $109.93
List Price: $152.11
You save 28%! (Low Price Guarantee)
In Stock

The RDL TX-PD8X is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to eight modules from a single power supply. The current limiting circuitry in many switching power supplies will cause the supply to shut down upon power-up when a high current capacitive load is connected. Upon application of power, the TX-PD8X ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. If reverse polarity is connected to the input, the TX-PD8X disconnects the load until the condition is corrected.

Radio Design Labs TX-PD8X Features:

  • Distribution of 24 Vdc Power
  • Soft-Start from Switching Supply
  • Outputs may be Activated by an External Switch
  • Outputs may be Activated by an Open-Collector closure to ground
  • Directly Controllable by RDL Remote Controls
  • Up to 8 Power Distribution Points
  • Voltage Presence Indication
  • Reverse Voltage Protection

Radio Design Labs TX-PD8X Specifications:

  • Input/Output Voltage: 24 Vdc @ 2 A (Intended for use with current limited switching supply)
  • Outputs (8): Total load current must not exceed 2 A
  • Indicator: POWER LED
  • Ambient Operating Environment: 32°-131°F (0°-55° C)
  • Power Requirement: 24 Vdc @ 25 mA plus connected loads
  • Package Type: Cardboard Box
  • Package Dimensions: 2" x 2" x 4"
  • Shipping Weight: 1.06 lbs.
  • Tariff code: 8518.29.0000
  • WEEE WeightL: 0.825 lbs

Radio Design Labs TX-PD8X
24 Vdc Switching Power Supply Distributor

OUR PART #  TX-PD8X

Product Information:

The RDL TX-PD8X is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to eight modules from a single power supply. The current limiting circuitry in many switching power supplies will cause the supply to shut down upon power-up when a high current capacitive load is connected. Upon application of power, the TX-PD8X ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. If reverse polarity is connected to the input, the TX-PD8X disconnects the load until the condition is corrected.

Radio Design Labs TX-PD8X Features:

  • Distribution of 24 Vdc Power
  • Soft-Start from Switching Supply
  • Outputs may be Activated by an External Switch
  • Outputs may be Activated by an Open-Collector closure to ground
  • Directly Controllable by RDL Remote Controls
  • Up to 8 Power Distribution Points
  • Voltage Presence Indication
  • Reverse Voltage Protection

Radio Design Labs TX-PD8X Specifications:

  • Input/Output Voltage: 24 Vdc @ 2 A (Intended for use with current limited switching supply)
  • Outputs (8): Total load current must not exceed 2 A
  • Indicator: POWER LED
  • Ambient Operating Environment: 32°-131°F (0°-55° C)
  • Power Requirement: 24 Vdc @ 25 mA plus connected loads
  • Package Type: Cardboard Box
  • Package Dimensions: 2" x 2" x 4"
  • Shipping Weight: 1.06 lbs.
  • Tariff code: 8518.29.0000
  • WEEE WeightL: 0.825 lbs
