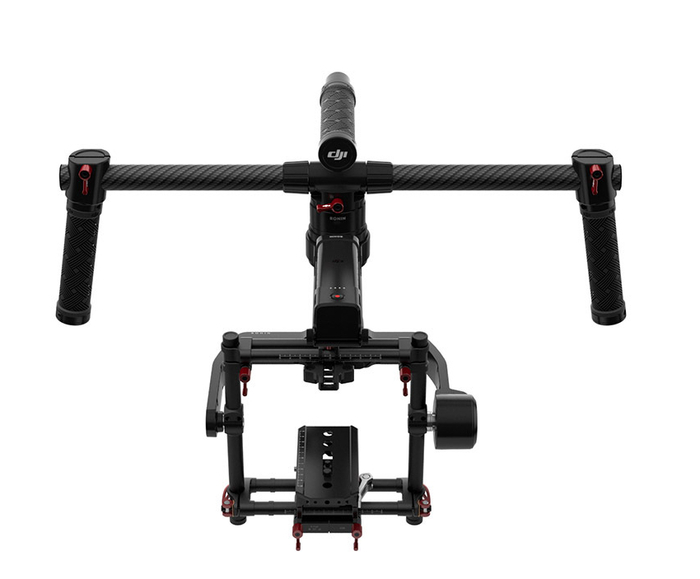

DJI Ronin-MX
Dual Use Gimbal with 10lbs Payload Capacity

OUR PART #:  RONIN-MX

Cinematic film making demands quick setup and a variety of camera configurations.
Learn More
Our Price: $1,599.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DJI Ronin-MX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Cinematic film making demands quick setup and a variety of camera configurations. The DJI Ronin-MX has been engineered to carry many of the cameras used daily on film and video sets worldwide, and its SmoothTrack™ algorithms ensure smooth movement in every configuration. A camera cage that locks mounted cameras in place at the top and at the bottom provides enhanced stability, and silent motors prevent on-set mics from picking up motor noise.

Powerful and Accurate
Made to resist high G-forces using IMUs and powerful motors, the Ronin-MX is engineered to maintain stability and hold horizon when mounted to a vehicle or aircraft. When it's mounted to the M600 aerial system (sold separately), it communicates directly with DJI’s flight controller. When attached to vehicles, it connects to an optional GPS module (sold separately), allowing it to actively stabilize, delivering a smoother shot.

Freedom to Move
A slip ring lets the Ronin-MX continuously rotate 360° when mounted to vehicles or aircraft, which can then open up more creative options for shooters. This is further enhanced by a tilt axis range from 90° straight down and beyond to 135°. Popular features of the Ronin series, such as the 3 modes of operation and SmoothTrack™ are also present, offering film makers a variety of creative movements and angles.

Wireless Control and Transmission
The Ronin-MX comes with support for Lightbridge 2, providing long-range HD video transmission from air to ground from up to 3.1miles (5km) away. If combined with the optional DJI Focus and Focus Expansion Module (both sold separately), focus or aperture can also be remotelyh pulled with the twist of the wrist. An optional Remote Start/Stop add-on (sold separately) provides the shooting control shooting on a range of airborne cameras.

Comprehensive App Control
DJI Assistant as well as the dedicated Assistant app for iOS and Android offer complete customization of the Ronin-MX and its behavior. If connected to Lightbridge 2, DJI's GO app can be used to control how the M600 flies, including Intelligent Flight Modes and remote control modes, along with moving the gimbal and the ability to view an HD live feed from the camera.

Refined Balance
The Ronin-MX's battery location is designed to assist with centering of the weight of the camera, thus minimizing instability when flying directly forwards, also dramatically increasing the Ronin-MX's agility and ability to handle rapid movements or high-G situations.

Magnesium Construction
Extensively built from lightweight magnesium, the Ronin-MX weighs in at just 6.11 lbs (2.77kg). This lightness allows for mounting to the M600 even when equipped with such advanced cameras as the RED EPIC, and to vehicles, while offering minimum impact on vehicle handling.

DJI Ronin-MX Features:

  • Compatible with DJI M600
  • Supports RED EPIC, ARRI ALEXA Mini and more cameras
  • Designed for stability in high G-force environments
  • 5 minute set-up
  • Professional 3-axis handheld stabilization
  • 3 modes of operation: Upright, Underslung, Briefcase
  • Auto Tune Stability (ATS) for rapid balancing
  • SmoothTrack™ movement smoothing

DJI Ronin-MX Specifications:

  • General:
    • Operation Modes:
      • Underslung Mode
      • Upright Mode
      • Briefcase Mode
      • Aerial Mode
      • Jib or Wirecam Mode
    • Built-in, independent IMU module
    • DJI Specialized Gimbal Drive Motors with Encoders
    • Bluetooth Module
    • USB Connection
    • 2.4 GHz Receiver
    • Temperature Sensor
    • DJI Advanced 32-Bit DSP Processor
    • D-Bus Receiver Supported
  • Peripheral:
    • Camera Tray Dimensions:
      • Maximum depth from the center of gravity on camera base plate: 120mm
      • Maximum height measured from top of camera base plate: 195mm
      • Maximum width: 160mm
    • Accessory Power Connections: 12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
    • GCU Input Power: 4S Ronin-M Battery
    • Connections: 2.4 GHz Remote Controller, Bluetooth 4.0, USB 2.0
    • PC Assistant Software Requirements: Windows XP or above; Mac OS X 10.9, or above
    • Mobile Assistant Software Requirements: iOS 7.1 or above; Android 4.3, or above
  • Mechanical & Electrical Characteristics:
    • Working Current: Static current: 300mA (@16V)
    • Dynamic current: 600mA (@16V)
    • Locked motor current: Max 10A (@16V)
    • Operating Temperature: 5° F ~ 120° F (-15° C ~ 50° C)
    • Weight:
      • Including handle bar: 6.11 lb (2.77 kg)
      • Including vibration absorber: 4.74 lb (2.15 kg)
    • Gimbal Dimensions:
      • Excluding handle bar: approx. 11" W x 14.5" D x 13.5" H (280 x 370 x 340mm)
      • Including handle bar: approx. 22" W x 14.5" D x 17.5" H (560 x 370 x 440mm)
  • Working Performance:
    • Load Weight (Reference Value): 10 lbs (4.5 kg)
    • Angular Vibration Range: ± 0.02°
    • Maximum Controlled Rotation Speed:
      • Pan axis: 200°/s
      • Tilt axis: 100°/s
      • Roll axis: 30°/s
    • Mechanical Endpoint Range:
      • Pan axis control: 360°
      • Tilt axis control: +270° to -150°
      • Roll axis control: ± 110°
    • Controlled Rotation Range:
      • Pan axis control: 360°
      • Tilt axis control: +45° to -135°
      • Roll axis control: ± 25°
