Liberty AV 18-CMP-VID-COAX-BLK 1000 ft. Serial Digital RG6 Dual Shield 4.5 GHz Plenum Coaxial Cable, Black

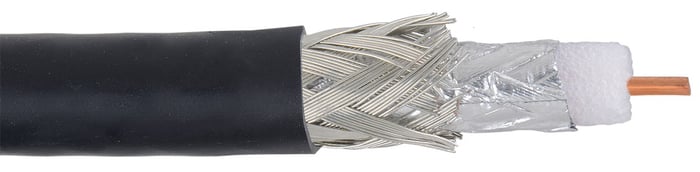

Liberty AV's 18-CMP-VID-COAX-BLK is a dual shielded RG6 serial digial coax cable with an 18 AWG solid bare copper conductor and Plenum PVC jacket.

Liberty AV 18-CMP-VID-COAX-BLK RG6 Coaxial Cable Features:

• 18 AWG solid annealed bare copper conductor
• Gas-injected cellular fluoropolymer dielectric
• 100% coverage aluminum/poly/aluminum foil inner shield
• 95% coverage tinned copper braid shield
• Plenum rated PVC jacket
• 4.5 GHz sweep, very low loss, excellent SRL
• NEC CMP, CEC CMP FT6, RoHS compliant
• 1000 foot spool
• Applications:
  • SMPTE Serial Digital Video, AES3id Digital Audio
  • S/PDIF digital audio, Subwoofer audio
  • All Base Band Video and Unbalanced Analog Audio
  • RF Modulated Signals, CATV, DBS, MATV

Note:

For technical specifications, please view the spec sheet located on the Documentation tab.
