Barco R9004677

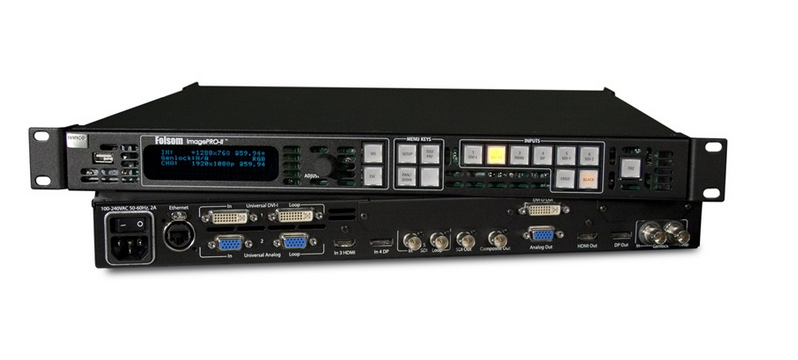

Barco ImagePRO-II All-in-One Video Scaler, Scan Converter and Switcher

OUR PART #:  R9004677

The Barco R9004677 ImagePRO-II is an advanced high performance all-in-one video scaler, scan converter...
Learn More
Sale Price: $5,895.94
List Price: $6,990.00
You save 16%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Barco R9004677
Qty:

Similar Products

The Barco R9004677 ImagePRO-II is an advanced high performance all-in-one video scaler, scan converter, switcher and transcoder converting any input signal format to any output format. ImagePRO-II supports Universal Analog, DVI single and dual link, HDMI, DisplayPort and SD/HD/3G SDI signal formats. Loop-through outputs are provided for the Analog, DVI and SDI input and genlock signals. With features like HDCP and EDID management, USB back up and restore, multiple video effects and web page interface, ImagePRO-II is the most advanced and flexible signal processor in the industry.

Barco R9004677 Features:

  • Inputs/outputs:
    • Dual-link DVI/HDCP I/O
    • 3Gbit HDSDI I/O
    • HDMI/HDCP I/O
    • DisplayPort/HDCP I/O
    • Universal analog I/O
    • Loop-through on DVI, SDI & analog inputs
  • User interface:
    • ImagePRO-3G front panel control
    • Web browser & tablet remote control
    • Encore suite of controllers
    • LED setup and configuration
  • Processing:
    • 12-bit processing
    • Resolution up to WQXGA (2560x1600)
    • Frame rate up to 120 Hz for 1080p
    • System configuration and restore via USB

Barco R9004677 Specifications:

  • Video inputs:
    • Input 1: DVI-I
      • Digital formats; all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 Specification and all dual-link DVI formats up to 300 Mhz; Max H Active: 4096 Max V Active: 3072
      • Analog formats: NTSC/PAL composite and Y/C video, SD YPbPR with bi-level sync, HD YPbPr with tri-level sync, RGBHV/RGBS/RGsB computer video with bi-level sync
      • Analog sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to 1920x1200p, 2048x1080p
      • Active loop-through output of all input signals, including HDCP and EDID
      • EDID version 1.3 compatible HDCP version 1.4 compatible
    • Input 2: HD-15 VGA
      • Format: NTSC/PAL composite and Y/C video SD YPbPr with bi-level sync HD YPbPr with tri-level sync per SMPTE 274, RGBHV/RGBS/RGsB computer video with bi-level sync
      • Sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to: 1920x1200p, 2048x1080p
      • Active loop-through output of all input signals
      • EDID version 1.3 compatible
    • Input 3: HDMI (type A) (not available on ImagePRO-II Jr)
      • Formats: RGB and YCbCr; Resolutions up to 2048x1080p @ 60 Hz per HDMI 1.4 specification and 1,920 x 1,200p @ 60 Hz
      • EDID version 1.3 compatible
      • HDCP version 1.4 compatible
      • Deep color (30/36 bits)
    • Input 4: DisplayPort (not available on ImagePRO-II Jr)
      • Formats: resolutions up to 2560x1600 @ 60Hz (30 bits) per DisplayPort 1.1a specification
      • HDCP version 1.4 compatible
    • Input 5 & 6 (dual output option): SD/HD/3G SDI on BNC
      • Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424
      • Re-clocked loop-through output
      • Dual link HDSDI per SMPTE 372 (dual output option)
  • Video outputs:
    • SD/HD/3G and BarcoLink SDI:
      • Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424
      • Dual link HDSDI per SMPTE 372 (dual output option)
    • NTSC/PAL composite video CVBS on BNC connector
    • DVI-D:
      • Formats all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 specification
      • All dual-link DVI formats up to 330 Mhz
      • EDID version 1.3 compatible
      • HDCP version 1.4 compatible
    • HD-15 VGA
      • Formats: NTSC/PAL composite on green, NTSC/PAL Y/C video with bi-level sync on Y only, (Y: Green, C: Red); SD YPbPr with bi-level sync; HD YPbPR with tri-level sync per SMPTE 274; RGBHV/RGBS/RGsB computer video with bi-level sync
      • EDID version 1.3 compatible
    • HDMI (type A) (not available on ImagePRO-II Jr)
      • Formats: RGB and YCbCr at 4:4:4, YCbCr at 4:2:2, per HDMI 1.4 specification; Resolutions up to 2,048 x 1,080p @ 60Hz and 1,920 x 1,200 @ 60Hz
      • EDID version 1.3 compatible
      • HDCP version 1.4 compatible
    • Output 3: DisplayPort (not available on ImagePRO-II Jr)
      • Formats: resolutions up to 2560x1600 @ 60Hz (30 bits) per DisplayPort 1.1a
      • HDCP version 1.4 compatible
  • Genlock: Analog Ref Input/Loop/Output on BNC connectors; Bi-level and Blackburst at SD and Tri-level at HD or locked to any input
  • Remote control:
    • USB 1.1
    • Ethernet RJ-45, 10/100 Mbps Autosense
    • Computer, tablet, smartphone, or external Encore or ScreenPRO-II Controller via Ethernet link.
    • Control functions include: source input configuration, output format selection, test pattern selection, transition effect selection and control
  • Dimensions:
    • Height: 1.75" (4.4 cm) - 1 RU Rackmount
    • Width: 17" (43.2 cm)- without chassis handles, 19.06 in (48.4cm) with chassis handles attached
    • Depth: 17.09" (43.4 cm) from front panel to rear panel, 18.51 in (47 cm) overall
  • Weight: 15.75 lbs (7.144 kg)
  • Input power: Power 100-240 VAC, 47-63 Hz, auto-selecting 2.0A maximum
  • Environmental temperature: 0°-40°C
  • Environmental humidity: 0-95% noncondensing
  • Warranty: Full three-year parts and labor warranty
