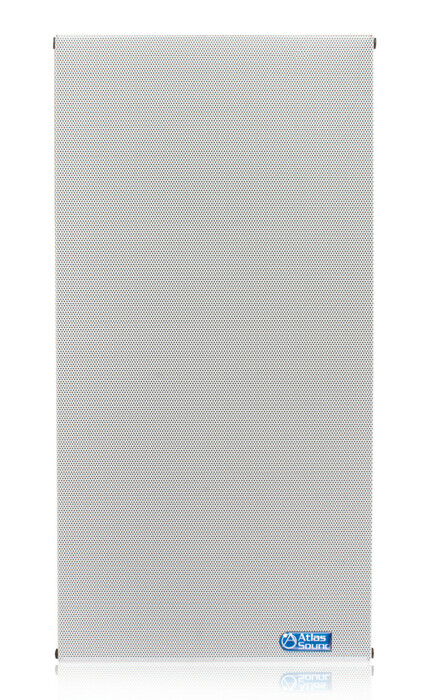

Atlas IED I128SYS+ PoE+ 1' x 2' IP Loudspeaker System For Suspended Ceiling Systems

AtlasIED I128SYS+ 1’ x 2’ suspended ceiling mount IP loudspeakers leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large loudspeakers with high output to overcome high ambient noise areas or large spaces.

AtlasIED I128SYS+ registers as a communication endpoint directly within InformaCast, and SA-Announce Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.

When used within a Cisco Environment, these same IP loudspeakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and loudspeakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

Where 3rd party notification applications are not required, the I128SYS+ loudspeakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications.

Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

AtlasIED I128SYS+ Features:

• Network Features
  • Dynamic or Static IP Address
  • IEEE802.3 10/100Base-T Ethernet
  • IEEE 802.1q Tagging
  • IEEE 802.11AT Compliant
  • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.729 Wideband Audio (64 kbit/s)
  • Auto Provisioning: DHCP Option 66, 150, or TFTP Server or DHCP Option 72 for HTTP Server
  • Auto Registration: SLP for InformaCast or DHCP Option 72 for SA-Announce or GCK
  • Static Configuration: HTTP GUI for Static Configuration or Cisco SRST
• Audio Features
  • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
  • Aux Audio Line-In Unbalanced (2.8Vpp 10K)
  • Aux Audio Line-Out Unbalanced (2.8Vpp 10K)
• Additional Features
  • 2 General Purpose Inputs
  • 1 General Purpose Output (2A @ 30 VDC)
  • Phone/Night Loud Ringer
  • External Power Supply Option

AtlasIED I128SYS+ Specifications:

• Sensitivity: 94 dB
• Dispersion: 105°
• Dimensions (H x W x D): 23.67 x 11.94 x 4.89" (601 x303 x 124 mm)
• Shipping Weight: 12.80 lbs (5.81 kgs)
