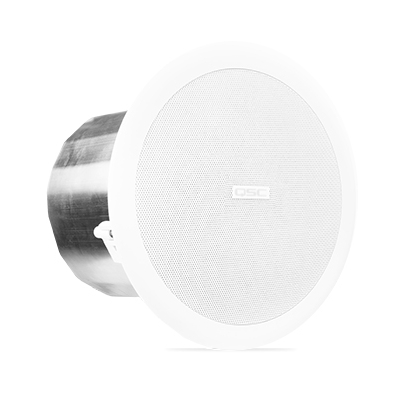

QSC AC-C6T
6" Two-way ceiling speaker, 70/100V

OUR PART #  AC-C6T

Our Price: $115.00
(Low Price Guarantee)

This product must be purchased in multiples of 2

Qty: Free Shipping Available

In Stock

The QSC AcousticCoverage™ AC-C6T is a ceiling-mounted 6” two-way loudspeaker with 70/100V transformer, suitable for a wide variety of voice paging and background music sound reinforcement applications.

AcousticCoverage™ is designed to offer integrators a cost-effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products.

The high quality 6-inch polypropylene cone transducer with butyl rubber surround and the sensitivity matched coaxially mounted .86-inch silk dome tweeter offers pristine clarity through the critical vocal range for increased speech intelligibilty. With 110 degrees of conical coverage, the AC-C6T reduces the number of loudspeakers required for even coverage in low ceiling applications.

The easy-to-install blind mount assembly features a ported baffle which optimally tunes the galvanized steel backcan for added musicality, creating low frequency extension down to 65 Hz. To maintain this frequency response, the AC-C6T utilizes a 30-watt low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8O bypass. The rotary tap selector switch is accessible under the painted steel grille.

To further enhance performance and speed of install with optimum result, advanced voicing via QSC Intrinsic Correction™ techniques are obtainable using Q-Sys™ networked audio processing platforms, including CXD amplifiers for a complete QSC systems solution.

Installers will appreciate the 4-pole Euroblock connector for loop-thru wiring, located under a quick access swivel plate. Eliminating the termination hassles of star topology wiring designs, the generous Euroblock of the AC-C6T can accept four 18AWG pairs.

A safety tether tab is affixed to the adjustable conduit clasp plate for seismic-sensitive installations. C-ring and tile rails are included with each pair packed assembly, complete with joining screws and cut-out template.

The AC-C6T baffle and grille are QSC standard white (RAL 9010) to match complimenting QSC product families and includes UV inhibitors to prevent discoloration over time. The AC-C6T may also be painted to match any décor.

QSC AC-C6T Features:

  • High quality transducers provide exceptional clarity through the critical voice range.
  • Improved musicality often not seen in typical BGM class products.
  • Ported baffle for increased low frequency extension down to 65 Hz.
  • Low saturation 70/100V transformers with 8 ohm bypass.
  • 4-pole Euroblock connector eases system wiring.
  • Advanced voicing via QSC Intrinsic Correction™, applied using Q-Sys processing or CXD amplifier platforms.
  • White (RAL 9010) with UV inhibitors to match complimenting QSC product families.

QSC AC-C6T Specifications:

  • Effective frequency range: 65 Hz to 20 kHz
  • Rated noise power / voltage: 30 watts / 15.5 volts(rms)
  • Broad-band sensitivity: 89 dB SPL
  • Coverage angle (-6 dB): 110° (500 Hz to 5 kHz)
  • Maximum continuous SPL: 104 dB
  • Maximum peak SPL: 110 dB
  • Rated impedance: 8 ohms
  • Transformer taps:
    • 70 V: 30, 15, 7.5, 3.7, 1.9 watts and 8-ohm bypass
    • 100V: 30, 15, 7.5, 3.8, watts and 8-ohm bypass
  • HF Transducer: .86" silk dome tweeter, coaxially mounted
  • LF Transducer: 6" Polypropylene cone with butylrubber surround
  • Input connector type: Euroblock connector with parallel output terminals
  • Baffle material: Painted ABS polymer
  • Grille material: Powder coated steel
  • Back can material: Galvanized steel
  • Testing: Listed UL1480, UL2043 safe for use in air handling space
  • Net weight: 7.6 lb / 3.5 kg
  • Product dimensions : 10.24" Ă— 8.4” (260 Ă— 213 mm)
  • Cut-out Dimensions: 9" (229 mm)
  • Ceiling Capture Thickness: 0.25" to 1.5" (6.35 to38.1 mm)
  • Shipping weight: 21 lb / 9.5 kg pair packed
  • Shipping dimensions: 24.5" Ă— 12.5" Ă— 12.8" (622 Ă— 318Ă— 324 mm)
  • Included accessories: Rails and C-ring for ceiling tile installation

QSC AC-C6T
6" Two-way ceiling speaker, 70/100V

OUR PART #  AC-C6T

Product Information:

The QSC AcousticCoverage™ AC-C6T is a ceiling-mounted 6” two-way loudspeaker with 70/100V transformer, suitable for a wide variety of voice paging and background music sound reinforcement applications.

AcousticCoverage™ is designed to offer integrators a cost-effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products.

The high quality 6-inch polypropylene cone transducer with butyl rubber surround and the sensitivity matched coaxially mounted .86-inch silk dome tweeter offers pristine clarity through the critical vocal range for increased speech intelligibilty. With 110 degrees of conical coverage, the AC-C6T reduces the number of loudspeakers required for even coverage in low ceiling applications.

The easy-to-install blind mount assembly features a ported baffle which optimally tunes the galvanized steel backcan for added musicality, creating low frequency extension down to 65 Hz. To maintain this frequency response, the AC-C6T utilizes a 30-watt low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8O bypass. The rotary tap selector switch is accessible under the painted steel grille.

To further enhance performance and speed of install with optimum result, advanced voicing via QSC Intrinsic Correction™ techniques are obtainable using Q-Sys™ networked audio processing platforms, including CXD amplifiers for a complete QSC systems solution.

Installers will appreciate the 4-pole Euroblock connector for loop-thru wiring, located under a quick access swivel plate. Eliminating the termination hassles of star topology wiring designs, the generous Euroblock of the AC-C6T can accept four 18AWG pairs.

A safety tether tab is affixed to the adjustable conduit clasp plate for seismic-sensitive installations. C-ring and tile rails are included with each pair packed assembly, complete with joining screws and cut-out template.

The AC-C6T baffle and grille are QSC standard white (RAL 9010) to match complimenting QSC product families and includes UV inhibitors to prevent discoloration over time. The AC-C6T may also be painted to match any décor.

QSC AC-C6T Features:

  • High quality transducers provide exceptional clarity through the critical voice range.
  • Improved musicality often not seen in typical BGM class products.
  • Ported baffle for increased low frequency extension down to 65 Hz.
  • Low saturation 70/100V transformers with 8 ohm bypass.
  • 4-pole Euroblock connector eases system wiring.
  • Advanced voicing via QSC Intrinsic Correction™, applied using Q-Sys processing or CXD amplifier platforms.
  • White (RAL 9010) with UV inhibitors to match complimenting QSC product families.

QSC AC-C6T Specifications:

  • Effective frequency range: 65 Hz to 20 kHz
  • Rated noise power / voltage: 30 watts / 15.5 volts(rms)
  • Broad-band sensitivity: 89 dB SPL
  • Coverage angle (-6 dB): 110° (500 Hz to 5 kHz)
  • Maximum continuous SPL: 104 dB
  • Maximum peak SPL: 110 dB
  • Rated impedance: 8 ohms
  • Transformer taps:
    • 70 V: 30, 15, 7.5, 3.7, 1.9 watts and 8-ohm bypass
    • 100V: 30, 15, 7.5, 3.8, watts and 8-ohm bypass
  • HF Transducer: .86" silk dome tweeter, coaxially mounted
  • LF Transducer: 6" Polypropylene cone with butylrubber surround
  • Input connector type: Euroblock connector with parallel output terminals
  • Baffle material: Painted ABS polymer
  • Grille material: Powder coated steel
  • Back can material: Galvanized steel
  • Testing: Listed UL1480, UL2043 safe for use in air handling space
  • Net weight: 7.6 lb / 3.5 kg
  • Product dimensions : 10.24" Ă— 8.4” (260 Ă— 213 mm)
  • Cut-out Dimensions: 9" (229 mm)
  • Ceiling Capture Thickness: 0.25" to 1.5" (6.35 to38.1 mm)
  • Shipping weight: 21 lb / 9.5 kg pair packed
  • Shipping dimensions: 24.5" Ă— 12.5" Ă— 12.8" (622 Ă— 318Ă— 324 mm)
  • Included accessories: Rails and C-ring for ceiling tile installation
