Martin Professional 90732190
M-Series Playback II Module

OUR PART #:  90732190

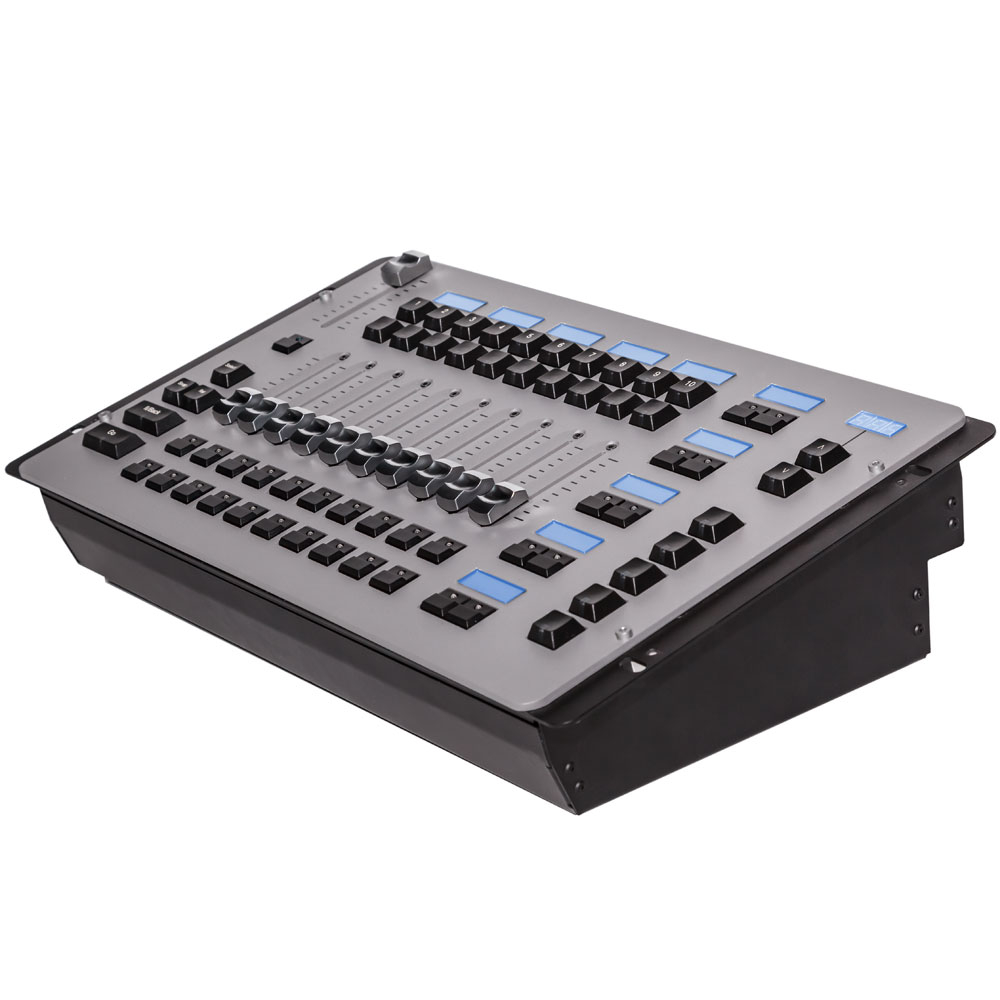

The Martin Professional 90732190 M-Series Playback II Module extends the playback capabilities of any M-Series console by adding ten motorized faders and ten PlayPaired buttons.
Learn More

Call for price! Not available online.
List Price: $6,700.00

Similar Products

The Martin Professional 90732190 M-Series Playback II Module extends the playback capabilities of any M-Series console by adding ten motorized faders and ten PlayPaired buttons. Cuelist information is displayed on ten LCD displays, five Fast Keys for quick access to banks and other functionality, a Master Go section and a Grand Master fader with flash.

Martin Professional 90732190 Includes:

  • 1.5 m power cable, 3-pin IEC: P/N 11501012
  • Ethercon patch cable: P/N 11840144
  • USB cable: P/N 11840066

Martin Professional 90732190 Features:

  • Ten motorized playback faders
  • Ten pause/back buttons
  • Ten go buttons
  • Ten flash buttons
  • Ten PlayPaired buttons
  • Ten LCD displays
  • Three-digit display for actual bank number
  • Five Fast Keys for quick access to banks or other functions
  • Master Go section
  • Grand Master fader with flash button
  • Tabletop and 19” rackmount format

Martin Professional 90732190 Specifications:

  • Physical:
    • Length: 10.9" (275 mm)
    • Width: 19.1" (483 mm)
    • Height: 5.1" (128 mm)
    • Weight: 10.2 lbs. (4.6 kg)
  • Control/User Interface:
    • Ten motorized playback faders, each with one dynamically labeled LCD button (to identify/activate playback) and two function-assignable buttons
    • Ten pause/back buttons
    • Ten go buttons
    • Ten flash buttons
    • Five LCD navigation buttons with scroll wheel Master Go section
  • Connections:
    • M-Series™ Module link USB: Neutrik locking RJ45 Ethercon sockets
    • USB input: USB device socket
    • USB devices: USB host socket
    • Desk lamp: 2.5 mm DC bayonet
    • AC power input: 3-pin IEC male socket
    • AC power throughput: 3-pin IEC female socket
  • Electrical:
    • AC power: 100-240 V nominal, 50/60 Hz
    • Power supply unit: Auto-ranging electronic switch-mode
    • Main fuse: 2 AT (slow blow)
    • Desk lamp output: 12 V
    • AC power output: Unswitched, unfused, max. 6 A
  • Approvals:
    • EU safety: EN 60950
    • EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
    • US safety (pending): ANSI/UL 60950-1
    • Canadian safety (pending): CSA C22.2 No. 60950-1
  • P/N: 90732190
