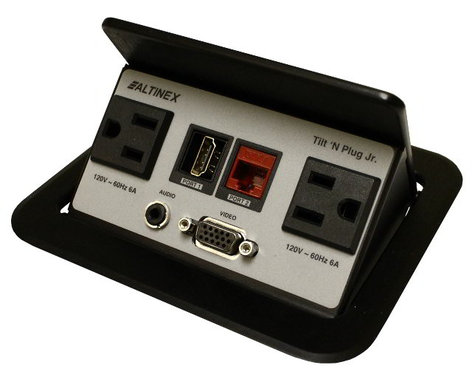

Altinex TNP328 Tilt 'N Plug Jr. Interconnect Box with VGA, Audio, HDMI, RJ45, and (2) Power

The TNP328 from Altinex is a compact interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system. Inputs are accessed by pushing down on the top cover allowing the unit to tilt open. The inputs are hidden by pressing down on the top cover until the latching mechanism engages. In the closed position, the top cover lays almost flush with the tabletop. This tabletop solution offers up to dual 12 Amps from the AC sockets with computer video/audio, HDMI, and network pass through cables. The passive cables are 6 ft and are bundled together for organized cable management. The power cable is split to deliver power to both outlets on the tabletop from one AC plug.

Altinex TNP328 Tilt 'N Plug Jr. Interconnect Box Features:

• High quality matte black finish
• Pre-configured, compact hybrid interconnect solution with HDMI and VGA
• Dual AC sockets rated at 12A
• Simple, drop-in installation
• Gas spring for smooth operation
• UL listed

Altinex TNP328 Tilt 'N Plug Jr. Interconnect Box Specifications:

• Max. Table Thickness: 2.25" (57 mm)
• Dimensions: 6.4" H x 5.7" W x 5.2" D (163 x 145 x 132 mm)
• Finish: Matte Black
• Weight: 2.75 lbs (1.25 kg)
• Shipping Weight: 5.5 lbs (2.5 kg)
• Operating Temperature: 10ºC to 35ºC
• Max. Operating Temperature: 40ºC
• Humidity: 90% non-condensing
• Power Rating (Pass-through AC Power): 120 VAC, 60 Hz, Up to 12A total
• Connections:
  • Power: (2) NEMA Socket-Plugs
  • Computer Video: (1) 15-pin HD F-M
  • Computer Audio: (1) 3.5mm F-M
  • HDMI: (1) HDMI F-M
  • Network: (1) CAT6 (RJ45) F-M
• Included Hardware: Mounting screws, brackets, cable clamps, screws
