Tripp Lite SRW21UG
21RU SmartRack Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window

OUR PART #  SRW21UG

Our Price: $658.00
List Price: $846.00
You save 22%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

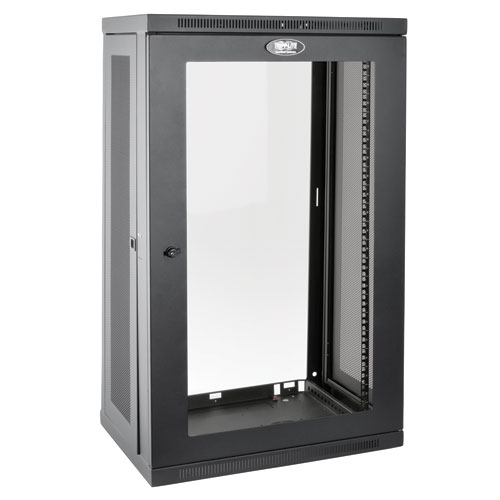

Tripp Lite's SRW21UG SmartRack 21RU Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is well-suited for storing EIA-standard 19" rack equipment in network closets, retail locations, classrooms, and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs.

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

To ensure your valuable equipment stays secure, the side panels and front door lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet to keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

The SRW21UG comes fully assembled and ready to mount to the wall (or use Tripp Lite’s optional SRCASTER caster kit (sold separately) to make it a mobile rolling rack). Square and threaded mounting holes and numbered rack spaces make equipment installation simple. The vertical mounting rails adjust in 7/8" increments to accommodate equipment up to 16.5" deep.

Tripp Lite SRW21UG SmartRack 21RU Wall-Mount Enclosure Cabinet Includes:

  • SRW21UG SmartRack 21RU Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
  • (44) M6 screws
  • (44) M6 cage nuts
  • (44) M6 cup washers
  • (44) 12-24 screws
  • Removable mounting plate
  • (3) Mounting plate screws
  • (2) Keys
  • Owner’s manual

Tripp Lite SRW21UG SmartRack 21RU Wall-Mount Enclosure Cabinet Features:

  • Saves Valuable Workspace
    • Well suited for network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way
    • Houses EIA-standard 19" rack equipment in 21RU of space
    • Maximum load capacity of 200 lbs
  • Shatter-Resistant Clear Acrylic FrontWindow
    • Lets you monitor equipment without unlocking the enclosure
    • Prevents equipment tampering
    • Reduces acoustic noise
    • Provides extra visual flair
  • Keeps Important Equipment Secure
    • Side panels and front door lock securely
    • Vented panels allow generous airflow that keeps equipment cool
    • Rotate cabinet 180° before mounting to open reversible front door left or right
    • Convenient ports with removable covers allow cable routing through top and bottom
  • Easy Enclosure and EquipmentInstallation
    • Ships fully assembled for quick installation
    • Mounts to wall or rolls on floor with Tripp Lite’s optional SRCASTER caster kit (sold separately)
    • Wall-mounting holes spaced 16" apart to accommodate standard wall stud placement
    • Vertical mounting rails adjust in 7/8" increments to house equipment up to 16.5" deep
    • Rails adjust easily - unscrew them, slide them to desired depth, and screw them back in
    • Rails support square-hole or threaded-hole mounting
    • Rack spaces numbered for easy reference
  • Meets Payment Card Industry Standards
    • Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

Tripp Lite SRW21UG SmartRack 21RU Wall-Mount Enclosure Cabinet Specifications:

  • Physical Specifications:
    • Rack Height: 21RU
    • Maximum Device Depth: 16.5"
    • Minimum Device Depth: 3"
    • Shipping Dimensions: 45.94" H x 26.10" W x 20.27" D
    • Shipping Weight: 69.3 lbs
    • Unit Dimensions: 40.87" H x 23.63" W x 17.72" D
    • Unit Weight: 51.2 lbs
    • Color: Black
    • Weight Capacity - Stationary: 200 lbs
    • Cable Access Hole Measurement: 9.812" L x 2.35" W
  • Special Features:
    • Grounding Lug: Front and Back door frames
  • Certifications:
    • Certifications: UL/CSA 60950-1, EIA-310-E
    • NOM (Mexico): Tested to NOM (Mexico)
    • Approvals: RoHS
    • Warranty: 5-year limited warranty

Tripp Lite SRW21UG
21RU SmartRack Wall-Mount Rack Enclosure Cabinet with Clear Acrylic Window

OUR PART #  SRW21UG

Product Information:

Tripp Lite's SRW21UG SmartRack 21RU Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is well-suited for storing EIA-standard 19" rack equipment in network closets, retail locations, classrooms, and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs.

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

To ensure your valuable equipment stays secure, the side panels and front door lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet to keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

The SRW21UG comes fully assembled and ready to mount to the wall (or use Tripp Lite’s optional SRCASTER caster kit (sold separately) to make it a mobile rolling rack). Square and threaded mounting holes and numbered rack spaces make equipment installation simple. The vertical mounting rails adjust in 7/8" increments to accommodate equipment up to 16.5" deep.

Tripp Lite SRW21UG SmartRack 21RU Wall-Mount Enclosure Cabinet Includes:

  • SRW21UG SmartRack 21RU Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
  • (44) M6 screws
  • (44) M6 cage nuts
  • (44) M6 cup washers
  • (44) 12-24 screws
  • Removable mounting plate
  • (3) Mounting plate screws
  • (2) Keys
  • Owner’s manual

Tripp Lite SRW21UG SmartRack 21RU Wall-Mount Enclosure Cabinet Features:

  • Saves Valuable Workspace
    • Well suited for network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way
    • Houses EIA-standard 19" rack equipment in 21RU of space
    • Maximum load capacity of 200 lbs
  • Shatter-Resistant Clear Acrylic FrontWindow
    • Lets you monitor equipment without unlocking the enclosure
    • Prevents equipment tampering
    • Reduces acoustic noise
    • Provides extra visual flair
  • Keeps Important Equipment Secure
    • Side panels and front door lock securely
    • Vented panels allow generous airflow that keeps equipment cool
    • Rotate cabinet 180° before mounting to open reversible front door left or right
    • Convenient ports with removable covers allow cable routing through top and bottom
  • Easy Enclosure and EquipmentInstallation
    • Ships fully assembled for quick installation
    • Mounts to wall or rolls on floor with Tripp Lite’s optional SRCASTER caster kit (sold separately)
    • Wall-mounting holes spaced 16" apart to accommodate standard wall stud placement
    • Vertical mounting rails adjust in 7/8" increments to house equipment up to 16.5" deep
    • Rails adjust easily - unscrew them, slide them to desired depth, and screw them back in
    • Rails support square-hole or threaded-hole mounting
    • Rack spaces numbered for easy reference
  • Meets Payment Card Industry Standards
    • Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

Tripp Lite SRW21UG SmartRack 21RU Wall-Mount Enclosure Cabinet Specifications:

  • Physical Specifications:
    • Rack Height: 21RU
    • Maximum Device Depth: 16.5"
    • Minimum Device Depth: 3"
    • Shipping Dimensions: 45.94" H x 26.10" W x 20.27" D
    • Shipping Weight: 69.3 lbs
    • Unit Dimensions: 40.87" H x 23.63" W x 17.72" D
    • Unit Weight: 51.2 lbs
    • Color: Black
    • Weight Capacity - Stationary: 200 lbs
    • Cable Access Hole Measurement: 9.812" L x 2.35" W
  • Special Features:
    • Grounding Lug: Front and Back door frames
  • Certifications:
    • Certifications: UL/CSA 60950-1, EIA-310-E
    • NOM (Mexico): Tested to NOM (Mexico)
    • Approvals: RoHS
    • Warranty: 5-year limited warranty
