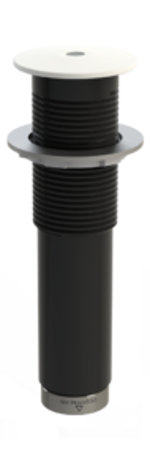

Earthworks IMB30-W
Omni Boundary Layer Installation Microphone, White - 200Hz-3


Our Price: $769.00
List Price: $961.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Earthworks IMB30-W
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Earthworks IMB Boundary Layer Microphones provide a pristine sounding microphone solution for permanent installations when keeping a low profile is of the utmost importance. Extended high frequency response to 30kHz and True Semisphere™ polar response allow those speaking to maintain the same intelligibility at the front and sides of the microphone without a loss of high frequencies. In addition, the extremely fast diaphragm settling time allows more subtle details of the human voice to be reproduced, which adds to the microphones' amazing clarity.Primary applications include teleconferencing, distance learning, surveillance, boardrooms, government facilities, and ambient room miking.

Earthworks IMB30-W Features:

  • Only 1.4375 inch (3.6cm) in diameter
  • True Semisphere™ Polar Response
    • Near-perfect frequency response at 0°, 45°, & 90°
  • 60Hz to 30kHz frequency response
  • LumiComm™ Programmable LED Touch Ring (with red and green LEDs)
  • Can be installed in conference tables(includes locknut)
  • Very high intelligibility
  • RF Shielding against cell phones and other RF devices
  • More gain before feedback
  • Requires 48V Phantom Power

Earthworks IMB30-W Specifications:

  • Frequency Response: 60Hz to 30kHz ±2dB at 45° incidence to the surface
  • Integrated Low Cut Filter Attenuation: -15 dB at 60Hz
  • Polar Pattern: True Semisphere™
  • Sensitivity: 70mV/Pa at 1kHz
  • Power Requirements: 48V Phantom, 10mA
  • Max Acoustic Input: 136dB SPL
  • Output: XLR-3 (pin 2+)
  • Output Impedance: 100 Ohm balanced (50-Ohm each pins 2& 3)
  • Min Output Load: 1K between pins 2 & 3
  • Noise: 19.5 dBA (Typical)
  • Microphone Color: White
  • Weight: 0.28 lbs. (125g)
