Atlas IED FS12T-BT60 12" Light Weight Coaxial Horn Loudspeaker 90° Conical

OUR PART #: FS12T-BT60 MFR #: FS12T-BT60

Copied to clipboard

Atlas IED FS12T-BT60 12” Lightweight Coaxial Horn Loudspeaker, 90° Conical An all-weather full range loudspeaker for indoor/outdoor paging and music. ...Read more

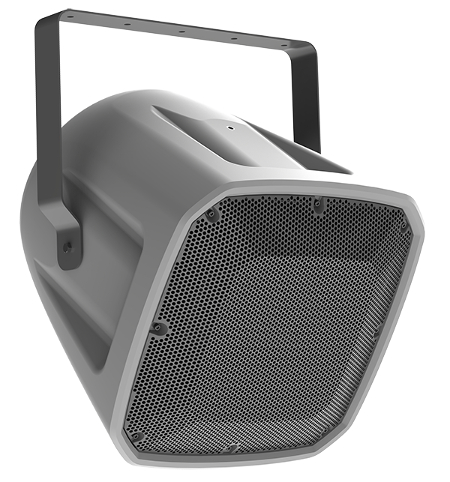

Atlas IED FS12T-BT60 12" Light Weight Coaxial Horn Loudspeaker 90° Conical Image 1
Atlas IED FS12T-BT60 12" Light Weight Coaxial Horn Loudspeaker 90° Conical Image 2
Atlas IED FS12T-BT60 12" Light Weight Coaxial Horn Loudspeaker 90° Conical Image 3
Atlas IED FS12T-BT60 12" Light Weight Coaxial Horn Loudspeaker 90° Conical Image 4
Atlas IED FS12T-BT60 12" Light Weight Coaxial Horn Loudspeaker 90° Conical
Our Price: $750.99
List Price: $935.99
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$21/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Atlas IED FS12T-BT60 12” Lightweight Coaxial Horn Loudspeaker, 90° Conical

An all-weather full range loudspeaker for indoor/outdoor paging and music.

The FS12T-BT60 is a two-way, full range speaker designed for nearfield applications. It uses a 12” low frequency driver and a 1” high frequency driver mounted concentrically to a high-directivity waveguide to provide 90-degree conical coverage with optimal voice and music reproduction.

The enclosure is made from linear low-density polyethylene (LLDPE), to create a remarkably strong yet lightweight unit and includes a stainless-steel U-bracket and fly points for easy mounting. The FS12T-BT60 can handle up to 200 watts of power and offers 70.7V transformer or 8-ohm inputs.

Atlas IED FS12T-BT60 Features:

  • All weather construction for long-term reliability in all seasons
  • Constant directivity design for controlled coverage of 90° conical
  • 200 watts power handling
  • 12” cast frame woofer with concentrically mounted 1” HF driver
  • Built-in high efficiency 200 watt 70.7V transformer
  • Convenient recessed terminal block on back of loudspeaker for easy weather resistant connection
  • 4 eyebolt inserts for multiple mounting options
  • Heavy-duty stainless-steel mounting bracket for easy mounting to almost any flat surface
  • Easy service design allows field-servicing of transducers without uninstalling enclosure from mount

Atlas IED FS12T-BT60 Specifications:

  • POWER TAPS: 200, 100, 50, 25 Watts & 8Ω bypass
  • SENSITIVITY: 93.5dB SPL
  • FREQUENCY RESPONSE: 62Hz - 14kHz
  • HEIGHT: 19.56" (49.78 cm)
  • DRIVER TYPE: 1" HF and 12" LF
  • DEPTH: 18.5" (46.9 cm)
  • DISPERSION: 90º Conical
  • ENVIRONMENT: IP45
  • MAX SPL: 116.5dB SPL
  • WIDTH: 18.5"(46.9 cm)
  • WEIGHT: 39.00 lbs (17.69 kgs)
  • COLOR: Pantone 423 C - RAL 7045
