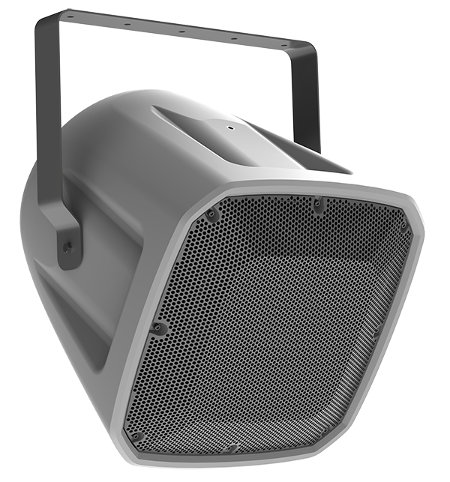

Atlas Sound FS12T-94
12" Light Weight Horn Loudspeaker 90° x 40°

OUR PART #:  FS12T-94

The Atlas Sound FS12T-94 is two-way, full-range loudspeaker system engineered to provide excellent voice and music reproduction in applications requiring weather resistance.
Learn More
Our Price: $713.99
List Price: $891.99
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound FS12T-94
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound FS12T-94 is two-way, full-range loudspeaker system engineered to provide excellent voice and music reproduction in applications requiring weather resistance. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability.

It incorporates a 12" LF driver and 1" exit HF compression driver concentrically mounted to a high-directivity waveguide. It provides 90° x 40° coverage and is tuned for optimal source reproduction.

The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. Input is via an integrated 70.7V transformer with low insertion loss and full frequency response with power taps up to 400-watts including an 4O bypass. The transformer is discretely mounted under the rear cover for weather protection. The finish is neutral “battle ship grey” that is UV resistant and allows for years of durability.

Atlas Sound FS12T-94 Features:

  • All-Weather Construction Ensures Long-Term Reliability Through Varying Seasons
  • 400 Watts Power Handling
  • Constant Directivity Design Offers Controlled Coverage of 90º Horizontal by 40 º Vertical (2kHz Octave Band)
  • Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver
  • Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker
  • Includes a Built-In, High Efficiency 400 Watt 70.7V Transformer
  • Four Eyebolt Inserts for Multiple Mounting Capabilities
  • Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
  • Easy Service Design Allows Transducers to be Serviced in the Field withoutUninstalling the Enclosure from the Mount

Atlas Sound FS12T-94 Specifications:

  • Impedance: 400, 200, 100, 50 Watts & 4O bypass
  • Sensitivity: 102.5dB SPL
  • Frequency Response: 80Hz - 17.6kHz
  • Height: 19.56" (49.78 cm)
  • Driver Type: 1" HF and 12" LF
  • Depth: 18.5" (46.9 cm)
  • Dispersion: 90º H x 40º V
  • Environment: IP45
  • MAX SPL: 128.5dB SPL
  • Width: 18.5"(46.9 cm)
  • Weight: 48.00 lbs (21.77 kgs)
  • Color: Pantone 423 C - RAL 7045
