Focusrite Pro RedNet PCIeR Card 128x128 Dante Interface PCIe Card for PC and Mac

OUR PART #: REDNET-PCIE-R-CARD MFR #: AMS-REDNET-PCIE-REDUNDANT

Copied to clipboard

Focusrite RedNet PCIeR combines extremely low latency with Ethernet redundancy for maximum system performance and reliability. ...Read more

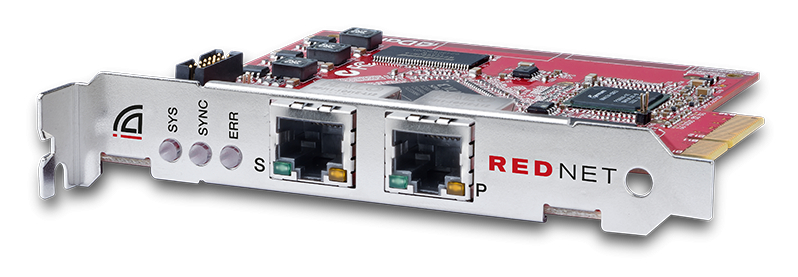

Focusrite Pro RedNet PCIeR Card 128x128 Dante Interface PCIe Card For PC And Mac Image 1
Focusrite Pro RedNet PCIeR Card 128x128 Dante Interface PCIe Card For PC And Mac Image 2
Focusrite Pro RedNet PCIeR Card 128x128 Dante Interface PCIe Card For PC And Mac
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Focusrite RedNet PCIeR combines extremely low latency with Ethernet redundancy for maximum system performance and reliability. The card requires a standard PCIe slot in a Windows or Mac computer and delivers up to 128 channels I/O with under 3ms latency. Dual RJ45 Gigabit Ethernet connectors switch automatically according to network availability and link the audio computer to the rest of the network.

The RedNet PCIeR is a dedicated 128x128 Dante audio interface for Mac and Windows PCs. Featuring a primary and secondary Ethernet port, RedNet PCIeR delivers high channel counts at very low latency with the utmost reliability. The 4x PCIe card operates with ASIO or Core Audio applications

Features

  • Dual Ethernet ports for full redundancy
  • 128 channels in and 128 channels out at 96kHz and below
  • 64 channels in and 64 channels out at 176.4kHz and 192kHz
  • Compatible with any Dante network
  • Up to 192kHz sample rate
  • Under 3ms analogue-to-analog round-trip latency through DAW with Focusrite RedNet A-D/D-A
  • ASIO and Core Audio drivers
  • Thunderbolt PCIe chassis compatible

Specifications

  • Computer Connectivity: Dante Network
  • Simultaneous I/O: 128 x 128 (up to 96kHz), 64 x 64 (192kHz)
  • I/O Location: PCIe RedNet card
    • Digital Inputs: RJ45 Gigabit Ethernet
    • Digital Outputs: RJ45 Gigabit Ethernet
