Tascam BD01U Rackmount Blu Ray Player Instant Rebate
Our Price: $399.99
Instant rebate: $50.00
Your Price: $349.99... read more

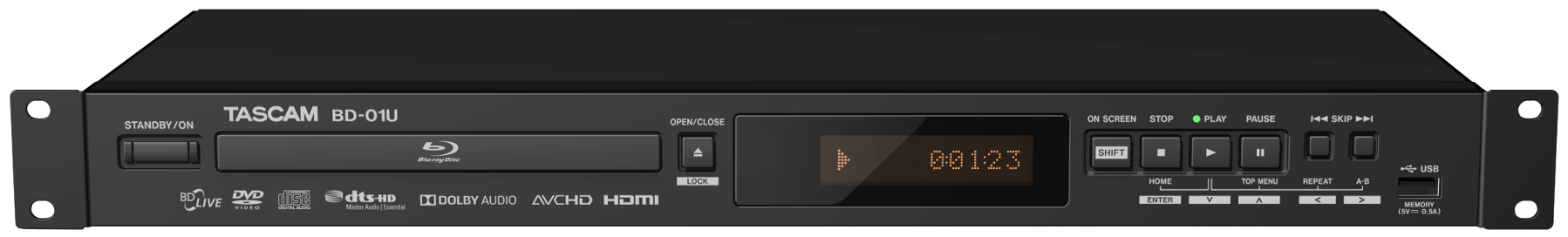

Tascam BD01U
Blu Ray Player


Sale Price: $349.99
List Price: $499.99
You save 30%!
In Stock

A rugged, professional, single-rackspace Blu-Ray player for installation and studio use, TASCAM's BD-01U builds on the success of the install-standard DV-D01U. This Hi-Definition player features control via LAN, RS-232C, and included wireless remote. It also supports DVD, WAV, MP3, DTS, and Dolby playback from optical and USB flash drives. Media can be played back at up to 130% speed.

A pair of balanced XLR and RCA unbalanced outputs are all provided on its rear panel, as well as an HDMI audio/video output. The analog outputs allow attenuation up to -12dB. Additionally, both optical and coaxial digital audio outs are provided. Other professional touches include defeatable on-screen display, chapter repeat function, and JPEG slideshow. TASCAM brings the years of experience gained with the DV-D01U to offer the ultimate source playback for house of worship, education, boardroom, and other high-stress installs.

There's no substitute for the TASCAM BD-01U for demanding installations that require the most reliable video playback player available.

TASCAM BD-01U Includes:

  • BD01U Unit
  • IR remote controller
  • AAA Battery x2
  • Rack-mounting kit (screw x4, Washer x4)
  • Owner's manual (The warranty is included at the end of this manual)

TASCAM BD-01U Specifications:

  • File format:
    • WAV:
      • BD/DVD/USB:
           ›Sampling frequency: 8k/11.025k/12k/16k/22.05k/24k/32k/44.1k/48k/64k/88.2k/96k/176.4k/192k Hz
           ›Quantization bit rate: 8-bit/16-bit/24-bit
      • CD:
           ›Sampling frequency: 8k/11.025k/12k/16k/22.05k/24k/32k/44.1k/48k Hz
           ›Quantization bit rate: 8-bit/16-bit
      • MP3/WMA:
           ›Sampling frequency: 32k/44.1k/48k Hz
           ›Playback bit rate:
               -MP3: 112k to 320kbps
               -WMA: 48k to 192kbps
      • JPEG:
           ›Number of pixels: 32x32 to 4096x4096
           ›Max file size: 12MB
           ›Disc format: UDF, ISO9660, JOLIET
  • Folder/File limitation:
    • BD/DVD/USB:
      • Folder: 999 (Group)
      • File: 9,999
    • CD:
      • Folder: 255 (Group)
      • File: 999
  • HDMI Output:
    • Connector: HDMI 19-pin Type A
    • Video format:
      • USA/JAPAN: 480p/720p/1080i/1080p/1080p24
      • EU: 480p/576p/720p/1080i/1080p/1080p24
  • Digital audio inputs:
    • COAXIAL:
      • Connector: RCA pin jack
      • Format: IEC60958-3(S/P DIF)
      • Output impedance: 75 ohm
    • OPTICAL :
      • Connector: TOS (JEITA RC-5720C)
      • Format: IEC60958-3(S/P DIF)
  • Analog audio outputs:
      • Connector: XLR-3-32(1:GND, 2:HOT, 3:COLD)
        Output impedance: 100 ohms
      • Standard output level: +4dBu (1.23 Vrms)
      • Maximum output level: +20dBu (7.75Vrms)
    • UNBALANCED:
      • Connector: RCA pin jacks
      • Output impedance: 200 ohms
      • Standard output level: -10dBV (0.316 Vrms)
      • Maximum output level: +6dBV (2.0Vrms)
  • RS-232C:
    • Connector: D-sub 9-pin
    • Format: RS-232C compliant
  • ETHERNET:
    • Connector: RJ45
    • Supported standards: 10BASE-T/100BASE-TX
  • USB:
    • Connector: USB A-type
    • Protocol: USB2.0 compliant
  • Signal system:
    • NTSC Color (for USA/Canada/Japan models)
    • NTSC/PAL Color (for Europe models)
  • Power:
    • Requirement: AC 120V, 60Hz
    • Consumption: 16.5W
  • Physical:
    • Dimensions (WxHxD): 483mm × 45mm × 257.8mm
    • Weight: 2.26 kg
  • Operating temperature: 5° to 35°C

Audio performance:

  • Frequency response: 20Hz - 20kHz, +/-1.0dB (playback, JEITA)
  • THD: 0.01% or less (playback, JEITA)
  • S/N ratio: 90dB or more (playback, JEITA)
  • Dynamic range: 90dB or more (playback, JEITA)
  • Interchannel crosstalk: 90dB or more (playback, JEITA)

Media & Disc type & File format:

  • Media:
    • Blu-ray:
      • BD-RE (V2.1): First layer/Second layer, Format: BDMV, JPEG, MP3, WMA, WAV
      • BD-R (V1.1/1.2/1.3): First layer/Second layer, Format: BDMV, JPEG, MP3, WMA, WAV
      • BD-Video (USA/JAPAN: Region A, EUR: Region B)
    • DVD:
      • DVD-RW, Format: VR, AVCHD, JPEG, MP3, WMA, WAV
      • DVD-R, Format: VR, AVCHD, JPEG, MP3, WMA, WAV
      • DVD-Video (USA: Region 1, All, JAPAN/EUR: Region 2,All)
    • CD:
      • CD-RW, Format: JPEG, MP3, WMA, WAV
      • CD-R, Format: JPEG, MP3, WMA, WAV
      • CD-DA, Format: JPEG, MP3, WMA, WAV
    • USB memory: FAT16/FAT32 (USB2.0), Format: JPEG, MP3, WMA, WAV
    • SD:
      • FAT16:SD/miniSD/microSD, Format: AVCHD, JPEG, MP3, WMA, WAV
      • FAT32:SDHC/miniSDHC/microSDHC, Format: AVCHD, JPEG, MP3, WMA,WAV
        Note: SD card can be played by connecting a USB card reader (not supplied) to this unit.

Click to download

Tascam BD01U Rackmount Blu Ray Player Instant Rebate

Our Price: $399.99
Instant rebate: $50.00

Your Price: $349.99

Until December 1st, when you purchase your BD01U from Full Compass you will Save $50 Instantly!

The price shown on the BD01U product page reflects the instant rebate. For more information on this or any Tascam products please contact your Sales Pro at 800-356-5844.

Tascam BD01U Rackmount Blu Ray Player Instant Rebate
Offer good between 10/15/2016 and 12/01/2016 Learn More About the BD01U!
