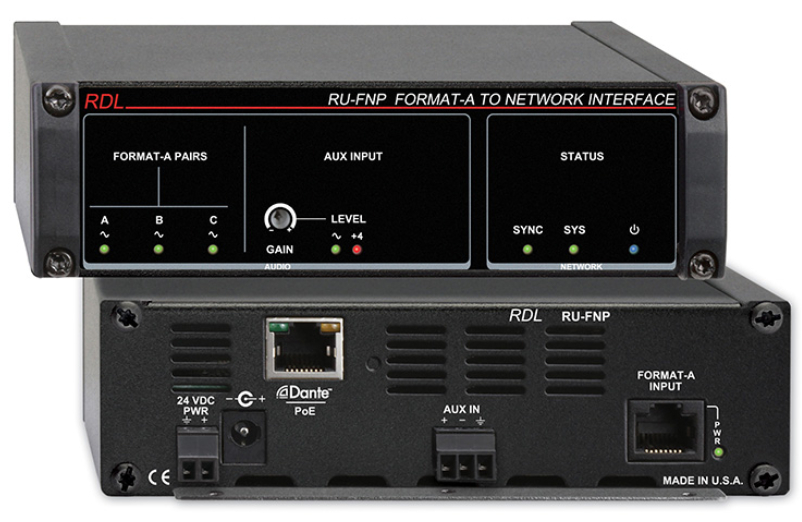

Radio Design Labs RU-FNP
Format-A to Network Interface

OUR PART #  RU-FNP

Our Price: $503.23
List Price: $721.25
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The RU-FN modules are Dante audio network interface products compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.

The RU-FN is an RDL Format-A receiver that connects to a Dante-enabled network. It converts the three Format-A audio pairs to Dante networked digital audio channels. Each network channel corresponds to Pair A, B or C of the Format-A input. The unit converts a fourth input, balanced or unbalanced line-level AUX, to Dante.

The RU-FNP is equipped for PoE which powers the RU-FN and the connected Format-A senders.

Radio Design Labs RU-FNP Features:

  • Converts RDL Format-A and Aux Source to Four DanteNetwork Channels
  • Easy Installation with Format-A Connections on RJ45through CATx Cable
  • Format-A Audio Sources from Pairs A, B and CConverted to Dante
  • Fourth Dante Audio Channel Fed from Unbalanced orBalanced Aux Line Input
  • Front-Panel Gain Adjustment with Dual-LED VU Meterfor Aux Input
  • Signal LEDs Indicate Audio for Each of the ThreeFormat-A Pairs
  • High Resolution 24 Bit Analog to Digital Conversion
  • Legendary RDL Analog Filtering Enhances Superb AudioPerformance
  • Powers Remote Format-A Senders through Format-A InputJack
  • LED Indicators Show Network Sync Status
  • Normal or Hot-Standby Operation from PoE (ModelRU-FNP)
  • Compatible with Wide Array of RDL Format-A Active andPassive Senders
  • Equipped for Rack Mounting or Surface Mounting

Radio Design Labs RU-FNP Specifications:

  • Network Connector: RJ45 with Link and Speed indicators
  • Digital Audio Ethernet Protocol: Dante
  • Transmission Rate: 100 Mbps
  • Frequency Response: 20 Hz to 20 kHz (+/- 0.5 dB)
  • THD+N: < 0.1%
  • Dimensions (W x H x D): 5.8 x 1.7 x 5.2"  (15 x 4.3 x 13.2 cm)
  • Package Dimensions: 6 x 6 x 2.625 in.
  • Shipping Weight: 1.61 lbs
