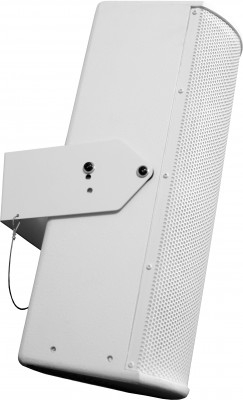

Galaxy Audio LA4DPM
Permanent Mount Line Array Speaker

OUR PART #:  LA4DPM

The Galaxy Audio LA4DPM Series Permanent Mount Powered Line Array speaker is the latest in the line of CORE speakers from Galaxy Audio.
Learn More
Selected Model Price: $299.99
List Price: $479.99
Save up to 38%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Galaxy Audio LA4DPM
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The Galaxy Audio LA4DPM Series Permanent Mount Powered Line Array speaker is the latest in the line of CORE speakers from Galaxy Audio. With an integrated 100 watt amplifier, the Galaxy Audio LA4DPM Line Array is designed to take advantage of the unique sound dispersion characteristics of multiple stacked drivers. The vertical line array design allows for maximum coverage from a slim, unobtrusive speaker cabinet. The LA4DPM is designed for permanent installation with built in mounting points. Self contained and with a small footprint, the LA4DPM is the perfect solution for hassle free PA installations, even in acoustically challenging rooms.

The LA4DPM has both an XLR input with +48 volt phantom power, a balanced 1/4" input, and a 1/8" TRS summing input for MP3 players etc. With a two band EQ control and built in Compressor/Limiter.

Galaxy Audio LA4DPM Features:

  • Multiple mounting provisions
  • Internal 100 Watt Amp
  • +48V Phantom Power
  • XLR, 1/4" and 1/8" Summing Input
  • Built-In Compressor
  • 2 Band EQ
  • Can be Flown or Wall Mounted
  • Universal Power Supply
  • Vocal Clarity
  • Light Weight
  • 118 dB Output
  • Solid wood construction

Galaxy Audio LA4DPM Specifications:

  • Frequency Response: (+/- 3 dB): 150 Hz - 17 kHz
  • Output/Peak: 100 Watts
  • Sensitivity: 98 dB, 1 W @1 m
  • Speaker Compliment: Four 4.5" Full Range Drivers
  • Nominal Coverage Pattern: 120┬║ H x 60┬║ V
  • Input Connections: One Balanced XLR with +48 VDC, One 1/4" Balanced/Unbalanced, One 1/8" Summing
  • Controls: Level, High Frequency, Low Frequency, 20 dB Pad, Phantom Power
  • Indicators: Input, Compression
  • Protection: Compressor/Limiter
  • Power Supply:  100/240 VAC 50/60 Hz, 1A
  • Enclosure Material: 15 mm Plywood, Steel Grille
  • Rigging: Fourteen 1/4-20 T-nut Mounting Points
  • Dimensions  (H x W x D) : 21.5 x 7 x 7.5" (546 x 178 x 191 mm)
  • Weight: 14.35 lbs (6.5kgs)
