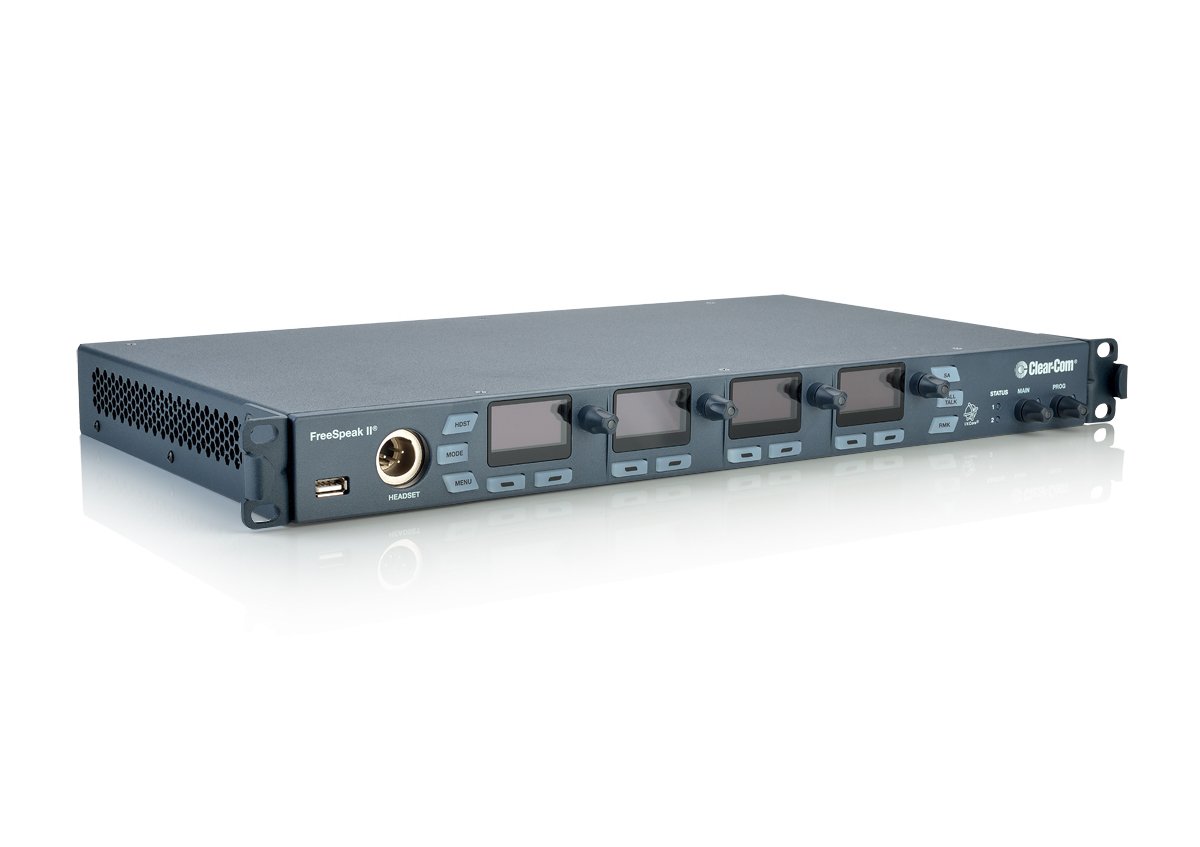

Clear-Com FreeSpeak II-BASE-II
FS II Digital Wireless Base Station


Call for price! Not available online.
List Price: $10,290.00

Related Products

The Clear-Com FreeSpeak II-BASE-II is a base station for the wireless FreeSpeak II 1.9GHz and 2.4GHz active transceiver and beltpacks with four 2-wire analog partyline connections, four 4-wire audio connections and four digital displays with soft keys. The base station can operate  a mix of up to 25 1.9GHz and/or 2.4 GHz beltpacks on a single system. The base station can be used in Main Station mode with Talk and Call soft keys or as a Headset Station for communication and monitoring from the panel.The base station's digital displays allow easy system configuration directly from the base station or through the browser-based Core Configuration Manager tool.

Clear-Com FreeSpeak II-BASE-II Features:

  • Routing and configuration of up to 25 FSII beltpacks
  • Browser-based configuration tool
  • Four 2-wire ports with call signal, auto-nulling
  • Four 4-wire ports with call signal
  • One dry contact relays
  • Multi-mode user interface with monitoring, setup and main station modeswith assignable soft keys
  • Dedicated front panel keys for remote mic kill, stage announce and alltalk
  • Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
  • Matrix and partyline configurations support up to 12 channelsand/orgroups

Clear-Com FreeSpeak II-BASE-II Specifications:

  • Base-to-Beltpack Frequency Response: 100 Hz - 7.1 kHz
  • No. of Beltpacks per Base Station: 25
  • No. of Transceiver/ Antennas Supported by Base: 10
  • No. of Active Transceiver Ports: 2, one port can remotely power up to 1FSII splitter or 1 FSII transceiver
  • PC Programming Port: 2 LAN RJ45
  • Relay Port: DB15, supports 1 set of relays and 2 GPI
  • Partyline A ,B,C,D (each): XLR-3F, on/off termination switch, Clear-Comand RTS compatible
  • Partyline Power On/Off: A/B, C/D paired
  • Partyline Output Voltage: 26 - 28 VDC, 850 mA per pair (A/B or C/D)
  • Four-Wire/Matrix Connection: 4 RJ-45
  • Program Input: XLR-3F, transformer isolated, line-level input
  • Stage Announce Output: XLR-3M, transformer isolated, line-level output
  • Front Panel Headset: 4-pin male and 5-pin female options
  • Front Panel Displays: 4 OLED’s with encoders and assignable soft keys
  • Front Panel Indicators: Antenna Status, Beltpack Status
  • External Power Supply Connection: 12VDC
  • Base Station Programming/Editing: Push-to-enter rotary encoder
  • Dimensions (H x W x D): 1.75 x 19.0 x 10.2 in (44 x 483 x 258 mm)
  • Weight: 5.57 lbs (2.5 kg)
