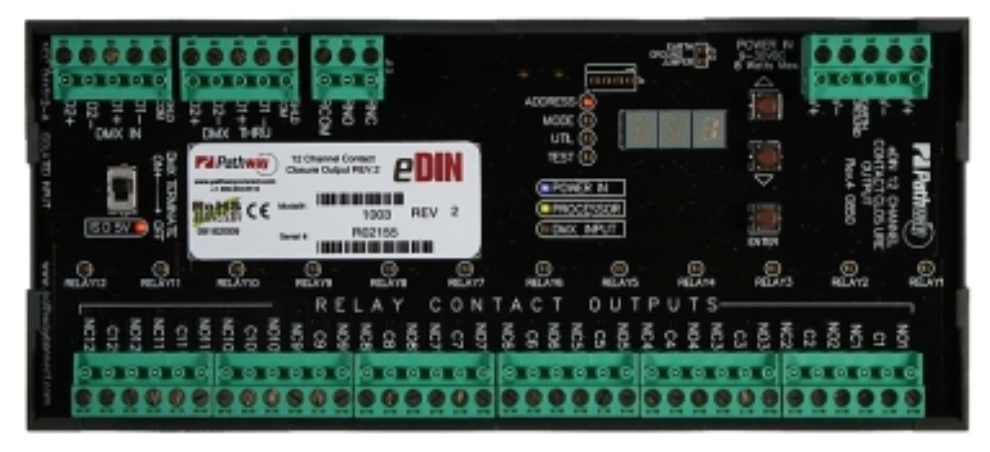

Pathway Connectivity 1003 12-Channel eDIN Contact Closure

The Pathway Connectivity 1003 eDIN Contact Closure Interface provides twelve DMX-controlled dry contact closures for both power and signal level switching.

Multiple operating modes include momentary, maintained, 6-channel split and single channel select, where the DMX level of the start channel determines which relay is active.

Pathway Connectivty P1003 Features:

• 12 DMX controllable form-C switch closures
• Momentary or maintained operation
• ‘DMX Present’ relay function
• DMX level display
• 6-channel alternate mode
• DMX-select mode, where DMX level corresponds to a triggered relay
• DMX start address easily set
• LED display and pushbuttons for configuration
• 2500V DMX input opto isolation
• 250V DMX fault protection
• End-of-line termination switch
• Status LEDs for power, DMX input, relay state
• Pluggable screw terminals for all connections
• DMX pass-thru connector
• Snap-on DIN rail housing
• DIN rail mounting section included

Pathway Connectivty P1003 Specifications:

• Relay Contact Rating: 2A per relay, at up to 30VDC
• Power Supply: 9-30 VDC, 5W supply required (Use eDIN 1001 power supply or equal)
• Isolation:
  • 2500V opto isolation
  • 250V fault protection
• Size: 3.5” x 8” x 1.25” (90mm x 200mm x 30mm )
• Mounting: 35mm x 7.5mm DIN rail (included)
