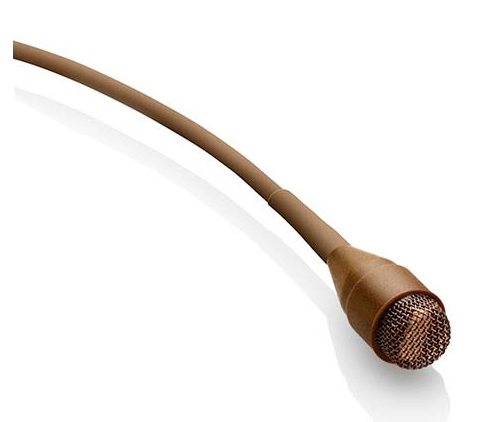

DPA Microphones SC4061-C03
Miniature Omnidirectional Microphone With 3-Pin Lemo For Sennheiser, Brown

OUR PART #:  SC4061-C03

The DPA Microphones SC4061-C03 is a miniature omnidirectional microphone with a hardwired 3-pin Lemo connector for Sennheiser wireless systems and offers a very clearn...
Learn More
Our Price: $529.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones SC4061-C03
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA Microphones SC4061-C03 is a miniature omnidirectional microphone with a hardwired 3-pin Lemo connector for Sennheiser wireless systems and offers a very clearn, detailed and natural sound quality.

Originally designed for use with wireless systems in theater, television and close-miked instrument applications, the d:screet™ 4061 Miniature Omnidirectional Microphone, Lo-Sens is highly unobtrusive. Because of its small size, it exhibits an exceedingly accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup.

This microphone is acoustically identical to the d:screet™ 4060 Miniature Omnidirectional Microphone, Hi-Sens, but the sensitivity is adjusted to match some of the more sensitive transmitters on the market.

It is up to the user to decide on the correct placement to achieve the desired timbre. The mic can handle 144 dB peak before clipping, allowing the microphone to be used even for snare drums, guitar/bass speaker cabinets or other high SPL sound sources.

DPA Microphones SC4061-C03 Features:

  • Extremely rugged and reliable
  • Exceptional audio quality
  • Low noise and high sensitivity
  • Large selection of accessories
  • Modular adapter system fits most professional wireless systems

DPA Microphones SC4061-C03 Specifications:

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, +/- 2 dB: Soft boost grid: 20 Hz -20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dBboost at 12 kHz
  • Sensitivity, nominal, +/- 3 dB at 1 kHz: Sensitivity, nominal, +/- 3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re.20 µPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dBSPL): 68 dB(A)
  • Total harmonic distortion (THD): < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
  • Dynamic range: Typ. 97 dB
  • Max. SPL, peak before clipping: 144 dB
  • Output impedance: 30 - 40 Ohm
  • Cable drive capability: Up to 300 m (984 ft)
  • Power supply (for full performance): For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001
  • BC/DAD6024/DAD4099: 48 V phantom power +/- 4 V for full performance
  • Connectors: MicroDot
  • Weight: 7.5 g (0.26 oz) including the cable and MicroDot connector
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: 12.7 mm (0.5 in)
  • Cable length: 1.8 m (5.9 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
