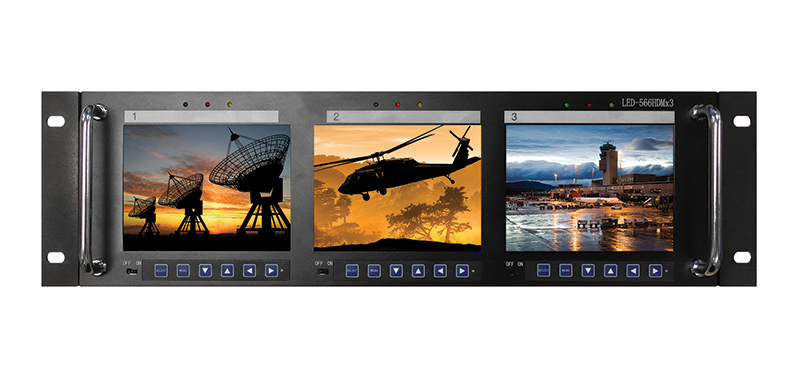

ToteVision LED-566HDMx3
5.6” Rack-Mount LCD Monitor

OUR PART #  LED-566HDMx3

Our Price: $718.00
List Price: $957.00
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The ToteVision's LED-566HDMx3 is three 5.6” rack mount monitors feature the latest screen imaging technology for enhanced clarity and sharpness. Both analog and digital video will benefit by being viewed on these monitors, and they are the best match for displaying higher resolution megapixel imagery.

ToteVision LED-566HDMx3 Features:

  • LED backlight: brighter picture using less power
  • Switchable 4:3 and 16:9 aspect ratios
  • Multi-featured: Underscan, Blue Gun, RGB adjustable
  • Monochrome and color peaking modes for fine control optimizing focus
  • DSLR Scaling when connected to a still photography camera
  • On-board memory retains last input source when power is off
  • Sturdy metal housing
  • Automatic scaling of signal resolution
  • Excellent electromagnetic shielding
  • Front controls allow the user to make adjustments via the On-Screen Display (OSD)

ToteVision LED-566HDMx3 Specifications:

  • Mount: Rack Mount
  • Display: 5.6" TFT LCD
  • Resolution: 640 x 480 (displays 480i/p ~ 1080i/p)
  • Native Aspect Ratio: 4:3
  • Visible Screen Size: 4.4” x 3.3” (112.9 x 84.7mm)
  • Back Light: LED (20K)
  • HD Compatible: Yes
  • Anti-Glare Coating: Yes
  • Brightness: 350 cd/m² (Nit)
  • Contrast: 500:1
  • Dot Pitch: 0.0588mm x 0.1764mm
  • Color Depth: 5600K ~ 6500K (User Adjustable)
  • Response Time: 10/15ms (Rising/Falling)
  • Viewing Angle: 70°/70°/50°/70°
  • Audio Power / Speakers: 2 Watts
  • HDMI: Three Inputs
  • Composite:
    • Three BNC Inputs
    • Three BNC Ouputs
  • Audio:
    • Three 3.5mm Inputs
    • Three 3.5mm Outputs
  • Power: 2.1mm DC Input
  • Operating Temp: -4° ~ 140°F (-20° ~ 60°C)
  • Humidity: 20% ~ 80%
  • Power Requirements: 12VDC; 2A
  • Power Consumption: 5 Watts (Max)
  • Dimensions: 18.89” x 5.24” x 2.36” (480 x 133 x 60mm)
  • Case: Durable Metal
  • Additional Information: Electromagnetic Shielding Auto Power On function Mirror Image function Automatic Signal Resolution Scaling Auto-sensing NTSC/PAL
  • Dimensions Rack Mount: 3RU

ToteVision LED-566HDMx3
5.6” Rack-Mount LCD Monitor

OUR PART #  LED-566HDMx3

Product Information:

The ToteVision's LED-566HDMx3 is three 5.6” rack mount monitors feature the latest screen imaging technology for enhanced clarity and sharpness. Both analog and digital video will benefit by being viewed on these monitors, and they are the best match for displaying higher resolution megapixel imagery.

ToteVision LED-566HDMx3 Features:

  • LED backlight: brighter picture using less power
  • Switchable 4:3 and 16:9 aspect ratios
  • Multi-featured: Underscan, Blue Gun, RGB adjustable
  • Monochrome and color peaking modes for fine control optimizing focus
  • DSLR Scaling when connected to a still photography camera
  • On-board memory retains last input source when power is off
  • Sturdy metal housing
  • Automatic scaling of signal resolution
  • Excellent electromagnetic shielding
  • Front controls allow the user to make adjustments via the On-Screen Display (OSD)

ToteVision LED-566HDMx3 Specifications:

  • Mount: Rack Mount
  • Display: 5.6" TFT LCD
  • Resolution: 640 x 480 (displays 480i/p ~ 1080i/p)
  • Native Aspect Ratio: 4:3
  • Visible Screen Size: 4.4” x 3.3” (112.9 x 84.7mm)
  • Back Light: LED (20K)
  • HD Compatible: Yes
  • Anti-Glare Coating: Yes
  • Brightness: 350 cd/m² (Nit)
  • Contrast: 500:1
  • Dot Pitch: 0.0588mm x 0.1764mm
  • Color Depth: 5600K ~ 6500K (User Adjustable)
  • Response Time: 10/15ms (Rising/Falling)
  • Viewing Angle: 70°/70°/50°/70°
  • Audio Power / Speakers: 2 Watts
  • HDMI: Three Inputs
  • Composite:
    • Three BNC Inputs
    • Three BNC Ouputs
  • Audio:
    • Three 3.5mm Inputs
    • Three 3.5mm Outputs
  • Power: 2.1mm DC Input
  • Operating Temp: -4° ~ 140°F (-20° ~ 60°C)
  • Humidity: 20% ~ 80%
  • Power Requirements: 12VDC; 2A
  • Power Consumption: 5 Watts (Max)
  • Dimensions: 18.89” x 5.24” x 2.36” (480 x 133 x 60mm)
  • Case: Durable Metal
  • Additional Information: Electromagnetic Shielding Auto Power On function Mirror Image function Automatic Signal Resolution Scaling Auto-sensing NTSC/PAL
  • Dimensions Rack Mount: 3RU
