Blackmagic Design CTRMDAQDSDI

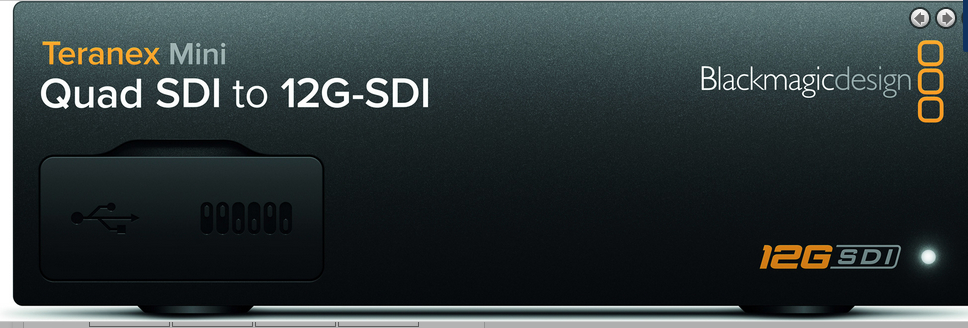

CONVNTRM/DA/QDSDI Teranex Mini - Quad SDI to 12G


The Blackmagic Design Teranex Mini - Quad SDI to 12G-SDI converts Quad Link SDI to 12G-SDI.
Learn More
Our Price: $470.25
List Price: $495.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Blackmagic Design CTRMDAQDSDI
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Blackmagic Design Teranex Mini - Quad SDI to 12G-SDI converts Quad Link SDI to 12G-SDI. This allows for equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDI equipment.

Blackmagic Design CTRMDAQDSDI Includes:

  • Teranex Mini - Quad SDI to 12G-SDI
  • SD card with software and manual

Blackmagic Design CTRMDAQDSDI Specifications:

  • SDI Video Input: Four 12G-SDI SD/HD/2K/4K auto switching
  • SDI Video Output: 12G-SDI output
  • Multi Rate Support: Automatic switching between SD/HD/2K and 4K
  • Updates and Configuration: USB or Ethernet
  • Re-Clocking: Yes
  • SD Format Support: 525i29.97 NTSC, 625i25 PAL
  • HD Format Support:
    • 720p50, 59.94, 60
    • 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1080PsF23.98, 24, 25
    • 1080i50, 59.94, 60
  • 2K Format Support:
    • 1080p23.98, 24, 25
    • 1080PsF23.98, 24, 25
  • Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60,
  • 4K Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
  • SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
  • SDI Color Space: YUV & RGB
  • Software Control: Mac OS X™ and Windows™ software upgrade via USB and Ethernet
  • Internal Software Upgrade: Via included updater application
  • Operating Systems:
    • Mac OS X 10.10 Yosemite,
    • Mac OS X 10.11 El Capitan or later
    • Windows 8.1 or Windows 10
  • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
  • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons
  • Power Supply: Built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input
  • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet)
  • Power Consumption: 16 Watts
  • Operational Voltage Range: 90 - 240V AC
  • Dimensions (WxHxD): 5.51" x 1.75" x 6.69"
  • Weight: 1.28 lb
  • Operating Temperature: 32°-104°F (0°-40°C)
  • Storage Temperature: --4°-140°F (20°-60°C)
  • Relative Humidity: 0% to 90% non-condensing
  • Warranty: 3 year Limited Manufacturer’s Warranty
