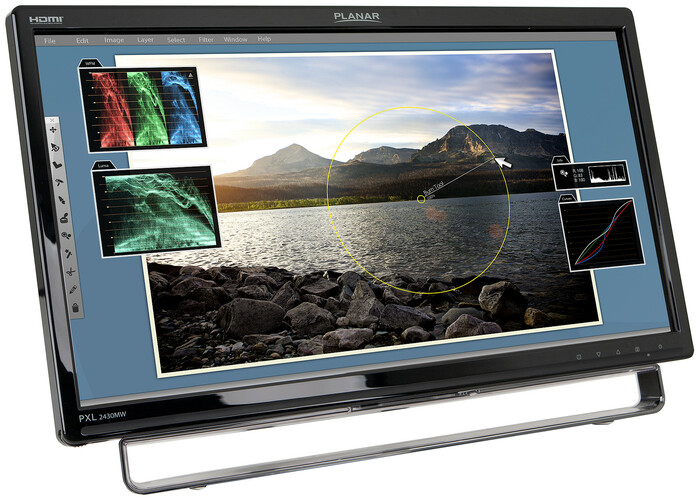

Planar PXL2430MW 24" Optical Touchscreen Monitor
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Designed to take full advantage of the features of Microsoft Windows® 10, the Planar® PXL2430MW 24" LED dual-touch LCD monitor provides an optical dual-touch screen and USB touch screen interface and has been optimized for education, consumer multimedia, as well as computer labs and classroom applications.

Planar PXL2430MW Includes:

  • PXL2430MW Monitor
  • Power Cord
  • VGA Cable
  • DVI
  • Cable
  • USB Cable
  • Audio-In Cable
  • User Manual

Planar PXL2430MW Features and Benefits:

  • 23.5" LED LCD monitor with 1920 x 1080 resolution
  • Compatible with Microsoft Windows® 10
  • Energy-saving mercury-free LED backlit display
  • Compatible with mounting options that use 100mm VESA standard

Planar PXL2430MW Specifications:

  • Product Name: PXL2430MW
  • Planar Part Number: 997-6399-00
  • Viewable Size: 23.6" diagonal (20.52" horizontal x 11.54" vertical)
  • Aspect Ratio: 16:9
  • Contrast Ratio (typical): 1000:1
  • Viewing Angle (typical): 170° Horizontal and 160° Vertical
  • Response Time (typical): 5 ms
  • Brightness (typical): 250 cd/m²
  • Display Type: Edge-Lit LED LCD
  • Display Resolution: 1920 x 1080
  • Tilt Range: 0° to +20°
  • Palette: 16.7 million colors
  • Pixel Pitch: 0.272 mm
  • Refresh Rate: 56-75 Hz (60 Hz recommended)
  • Physical:
    • Dimensions (WxHxD): 21.9" x 15.5" x 4.3" (555.8 x 393.6 x 108.0 mm)
    • Dimensions without Stand (WxHxD): 21.9" x 13.7" x 2.2" (555.8 x 346.8 x 56.1 mm)
    • Weight With Stand: 12.6 lb (5.7 kg) (net)
    • Weight without Stand: 11.4 lb (5.2 kg) (net), 16 lbs (7.3 kg) (shipping)
  • Video Inputs: Analog, DVI-D, HDMI (HDMI cable not included)
  • Audio Output: 2W
  • External Connections: D-sub 15-pin, DVI-D 24-pin, HDMI 19-pin, USB-B,Audio Port
  • Compatibility: Windows® 7
  • Power:
    • Power Supply: Internal
    • Power Consumption (max): 35W
    • Power Requirements: 100-240 VAC, 50/60 Hz
  • VESA Compatible/Location: Built-in 100 mm VESA, Back of monitor
  • Product Approvals: UL/cUL, FCC-B, CE, RoHS
  • Service and Support: 3-Year Customer First™ Warranty featuring FREE 2-Day Advance Replacement (US only)
  • Options / Features: Optical Touch technology, multi -touch capability, compatible with Microsoft Windows® 7 operating system, HID compliant - no drivers needed for touchscreen operation. Includes a built in stylus.
  • UPC: 8 10689 06399 5
