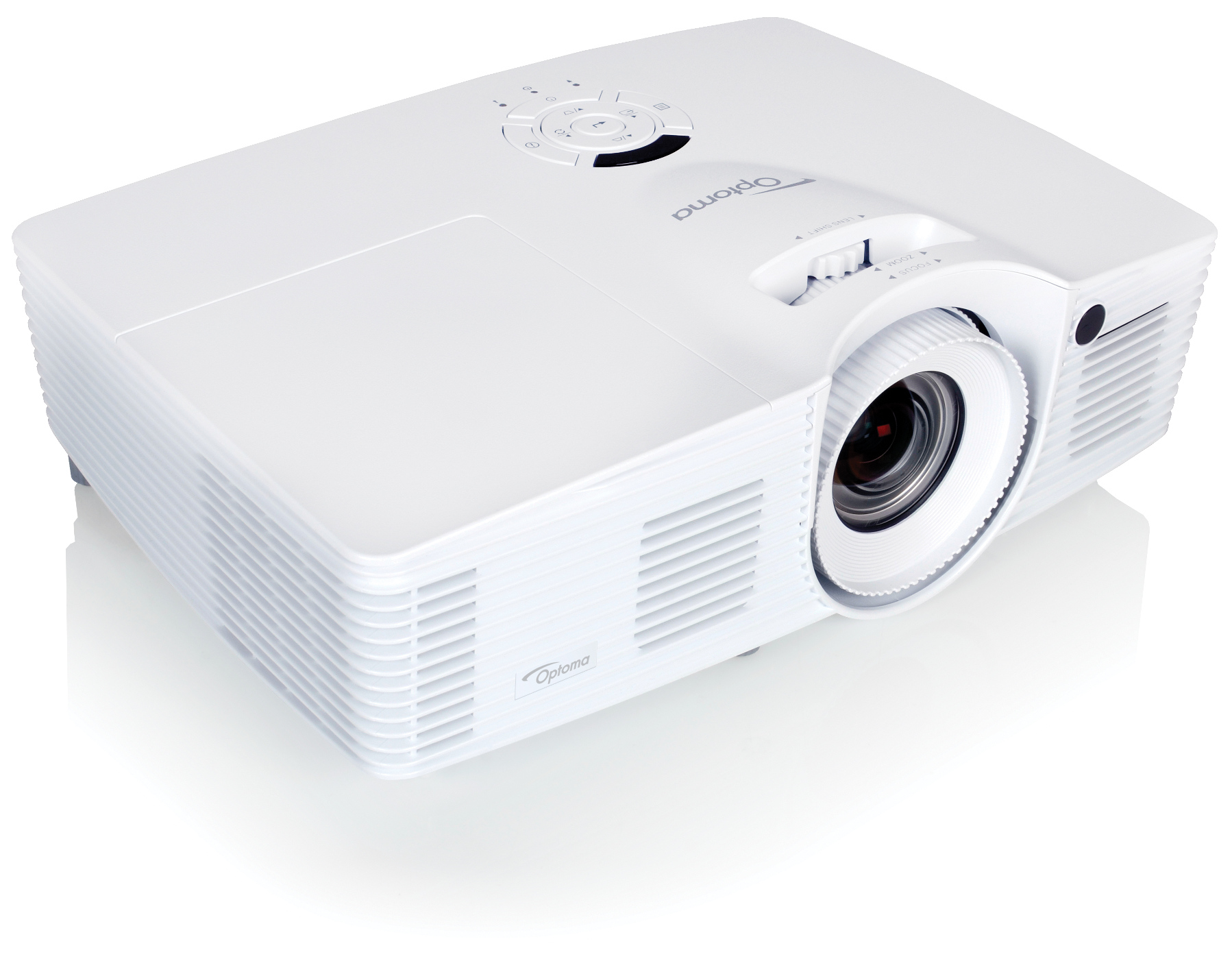

Optoma EH416
4200 Lumens HDMI, UXGA, SVGA Projector


Our Price: $899.00
List Price: $1,499.00
You save 40%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories
Projection Calculator

Regardless of the ambient light level, with Optoma's EH416 projector you can project high resolution visuals. Engineered for businesses and professional installation situations, this powerful and compact projector can be installed or taken with you on the go. It's ideal for small edge-blending and stacking projects.

With multiple inputs, including (2) HDMI, MHL, VGA, as well as an onboard 10W speaker, it's easy to connect, and with it, you can even present wirelessly using the HDCast Pro (sold separately), or you can employ its USB Power to connect and power HDMI dongles like the Google Chromecast.

For more complex installations, this projector comes with a large 1.6x zoom range, vertical lens shift, and networking features which provide remote monitoring and control.

Optoma EH416 Includes:

  • EH416 Unit
  • AC power cord
  • Remote control
  • 2x AAA batteries
  • Quick start card
  • CD user manual

Optoma EH416 Features:

  • Large zoom range
    This enables a wide range ofplacement options at a variety of distances from the projection screen. Anadvantage to this is that expensive interchangeable lens projectors can be substituted with a more cost effective solution, and yet still retain adiverse choice of positioning possibilities.
  • MHL
    By connecting your smartphone or tablet with asingle cable using MHL, you can turn your projector into a smart display; now you'll be able to view presentations and documents, as well as stream videos, and share photos on the big screen. You can even use MHL to connect and power the HDCast Pro (sold separately).
  • Eco+
    Eco+ technology merges high contrast, improved lamp life, and energy saving features that are easy to use while reducing power consumption.
  • Eco AV mute
    Lets you stay in control of your presentation. You can direct your audience's attention away from the screen by blanking the image when no longer needed, also reducing power consumption byup to 70%, for further prolonging of your lamp life.
  • Auto power off
    There may be situations when the projector is left running, but not in use. The "Auto Power Off" feature automatically turns off the projector after a set period of time to help save energy, and lower total operating cost.
  • High contrast
    This high contrast projector delivers added depth to your image, with brighter whites and ultra-rich blacks, so images come alive and text appears crisp and clear - great for business and education applications.
  • Full 3D
    It comes with the capability to display true3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting, and the latest generation games consoles. Its support for 144Hz rapid refresh rate provides ultra-smooth flicker-free images.
  • Long lamp life ¹ ²
    A lamp life of up to 6500hours helps reduce the number of lamp changes.
  • Remote Control
    A Full Function Remote with Laser Pointer is provided.
  • Vertical lens shift
    Vertical lens shift provides a wider range of projector placement possibilities, offering simplified installation, making it easier to position the projector in your room, and enabling a wider range of screen size options.
  • USB power
    You can use onboard USB-Power to power an HDMI dongle, such as Google Chromecast (availableseparately).
  • Integrated speaker
    An integrated speaker delivers exceptional audio support. It's easy to set up with no need for costly external speakers.
  • Energy saving
    You can reduce the power consumption by up to 70% using the specially designed lamp modes. Each lamp mode also has a positive effect on the lamp life, while reducing maintenance, and lowering the total cost of ownership.
  • Quick resume
    Quick resume lets the projector beinstantly powered on again, in case it's accidentally switched off.
  • Wireless functionality
    Wirelessly stream Full 1080p 3D content to your projector, eliminating the extra cost and hassle of installing long cables. The WHD200 (sold separately) lets you instantly connect a Blu-ray™ player, set-top box, gaming console, or AV receiver.
  • Remote mouse and laser
    Keep your audience’s attention focused on the right things using the powerful, yet simple remote with USB mouse control and built-in laser pointer.
  • Networking and control
    Featuring a wide range of options you can remotely control and monitor the projector.
    • RS232
      Optoma projectors come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
    • AMX Compatibility
      Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
      LAN Control
      Using the compatible RoomView® software you can power on/off, monitor, manage, and control up to 250 projectors simultaneously from any computer.
      • Schedule the projectors to power on/off.
      • Control and alter the projector settings using the simple web browser.
      • Emergency text broadcast capabilities for urgent or important announcements.
      • Automatically receive email updates for lamp maintenance.
  • Amazing colors
    For natural looking, vibrant images, BrilliantColor™ multi-color processing technology is also featured.
  • Feature highlights:
    • Full HD 1080p, compact and powerful
    • Bright 1080p projector – 4200 ANSI Lumens
    • Installation flexibility – Vertical lens shift and 1.6x zoom
    • Ultimate Control - Full support for Crestron, Extron, AMX, PJ-Link, and Telnet LAN commands
    • Easy connectivity - HDMI, MHL, VGA, 10W speaker

Optoma EH416 Specifications:

  • Display Technology: Single 0.65” DarkChip 3 1080p DLP® Technology by Texas Instruments
  • Native Resolution: 1080p 1920 x 1080
  • Brightness¹: 4200 ANSI Lumens
  • Contrast Ratio: 20,000:1
  • Lamp Life ¹ ² Eco+/Dynamic/Eco/Bright: 7000/6000/5000/3000 (hrs)
  • Throw Ratio³: 1.4 - 2.24:1
  • Zoom Type: 1.6x Manual
  • Lens Shift: +17% Vertical
  • I/O Connectors:
    • 2 x HDMI (1.4a 3D support) + MHL v2.2
    • VGA (YPbPr/RGB)
    • Composite
    • 2 x Audio in 3.5mm
    • VGA out
    • Audio out 3.5mm
    • RS232
    • RJ45
    • USB-A Power
    • USB mouse/service
  • Speaker: 10 W
  • Keystone Correction: ± 40° Vertical
  • Physical:
    • Dimensions: 314mm W x 224mm H x 114mm D
    • Weight: 6.4 lbs (2.9 kg)
  • Aspect Ratio: 16:9 Native, 4:3 Compatible
  • Offset: 99% ~ 116%
  • Projection Screen Size: 26.21" - 303.3" (0.67 – 7.7m) Diagonal
  • Projection Distance: 1.3 - 9.4m
  • Projection Lens: F/2.5~3.26; f=20.91~32.62mm
  • Uniformity: 75%
  • Computer Compatibility: UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
  • Video Compatibility: PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p
  • 3D Support:
    • Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
  • 3D Compatibility:
    • Side-by-Side:1080i50 / 60, 720p50 / 60
    • Frame-pack: 1080p24, 720p50 / 60
    • Over-Under: 1080p24, 720p50 / 60
  • Horizontal Scan Rate: 15 - 91kHz
  • Vertical Scan Rate: 24 - 120Hz
  • Displayable Colors: 1.07 Billion
  • Noise Level (Eco mode): 32dB
  • Power Supply: 100-240V, 50-60Hz
  • Power Consumption: 309W Bright mode / 249W Eco mode (<0.5W Standby)
  • Lamp Type: 260W
  • Security: Kensington lock, password protection
  • On Screen Display: 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek, Norwegian/Danish, Hungarian, Czech, Arabic, Turkish, Farsi, Romanian
  • Optional Wireless: Yes (required Smart Device sold separately
  • Warranty: 3 Years
  • RoHS: Compliant
  • Warranty: 3-Year optoma Express Service, 1-Year on Lamp

¹ Lamp-based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
² Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions.
³  +/- 5% tolerance.
