Martin Professional 90506520
20° Exterior Gobo Projector

OUR PART #:  90506520

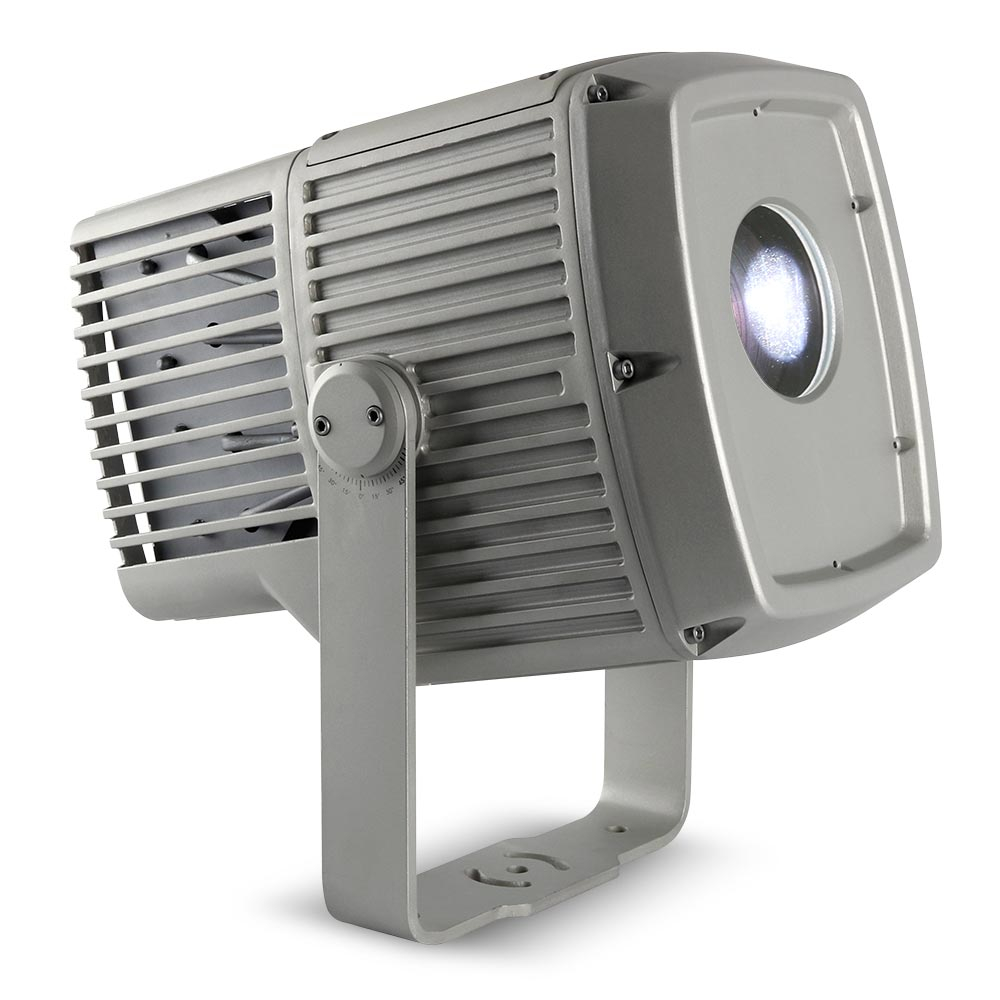

The Martin Professional 90506520 Exteriorâ„¢ Projection 500 is a powerful fixture for integrating textures, patterns and graphics in outdoor lighting designs.
Learn More
Our Price: $4,450.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Martin Professional 90506520
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Martin Professional 90506520 Exteriorâ„¢ Projection 500 is a powerful fixture for integrating textures, patterns and graphics in outdoor lighting designs. The fixture can be used for bright and dynamic logo projection as well as precision framing.

Using advanced LED technology, it stands out for its energy efficiency, compact size and unlimited creative opportunities.

Martin Professional 90506520 Features:

  • Very bright 6500 Lumen output with four beam anglesfrom narrow to wide beam
  • It is possible to make powerful projection both atshort and long distances
  • Flat field, high contrast image projection based onhigh power LED engine
  • Four layers of dynamic effects (colors, gobos,animation, prisms/frost)
  • Super crisp image projection
  • It is possible to achieve a lot of different and everchanging looks
  • Fully convection cooled IP66 housing
  • Minimal maintenance – low total cost of ownership

Martin Professional 90506520 Specifications:

  • Physical:
    • Length: 16.2" (410 mm)
    • Width: 9.9" (250 mm)
    • Height: 12.2" (310 mm)
    • Weight: 33.1 lbs. (15 kg)
  • Dynamic Effects:
    • Color wheel: 8 interchangeable colors + open
    • Gobo wheel: 6 gobo slots + open , gobo indexing, continuous gobo rotation
    • Gobo animation: Variable speed animation effect
    • Prism: Prism wheel with two interchangeable prisms, prism rotation and indexing
    • Focus: Motorized, 9.8 ft. (3 m) to infinity
    • Frost: Variable
    • Dimming: Electronic, 0-100%
  • Control and Programming:
    • Control options: DMX, RDM, standalone
    • DMX channels: 13
    • Configuration, adressing and status: Onboard control panel with OLED display
    • Control resolution: 8-bit (DMX) control of each color
    • DMX compliance: USITT DMX512-A
    • RDM compliance: ANSI/ESTA E1.20
  • Optics:
    • Light source: 240 W white light LED engine
    • Color temperature: 7 500 K
    • LED lifetime: 60 000 hours (to >70% luminous output)
  • Photometric Data:
    • Cut-off angle: 10°, 20°, 35° or 46°
    • Luminous output: 7000 lumens
  • Construction:
    • Material: Cast aluminum
    • Front glass: 0.2" (5 mm) anti-reflection coated tempered glass
    • Color: Grey
    • Ingress protection: IP66
    • Impact resistance: IK08
    • EPA (Effective Projected Area): 0.15 m2
    • RoHS compliant
  • Gobos:
    • Material: Metal or glass
    • Outside diameter: 1.2" +0/-0.02" (30.0 mm +0/-0.3 mm)
    • Maximum image diameter: 1.0" (25 mm)
    • Maximum thickness: 0.08" (2 mm)
  • Installation:
    • Orientation: Max. ± 40° from horizontal recommended
    • Minimum distance to illuminated surfaces: 0.6 ft. (0.2 m)
  • Connections:
    • Power cable entry: IP68 cable gland
    • Power connection: 5.9 ft. (1.8 m) cable tail with bare ends
    • Data cable entry: IP68 cable gland
    • Data connection: 5.9 ft. (1.8 m) combined input + output cable tail with bare ends
  • Electrical:
    • AC power: 100-120/200-277 V nominal, 50/60 Hz
    • Power supply: Auto-ranging electronic switch-mode
  • Typical Power and Current:
    • 120 V, 60 Hz: 300 W, 1.5 A, PF 0.98
    • 230 V, 50 Hz: 300 W, 1.5 A, PF 0.98
  • Thermal:
    • Cooling: Convection
    • Maximum ambient temperature (Ta max.): 113° F (45° C)
    • Minimum ambient temperature (Ta min.): -22° F (-30° C), power must be maintained below 32° F (0° C)
  • Approvals:
    • EU safety: EU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1
    • EU EMC: EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5
    • US safety (pending): ANSI/UL 1598
    • US EMC: CRF 47 Part 15 Class A
    • Canadian safety (pending): CSA C22.2 No 250.0
    • Australia/NZ (pending): RCM
