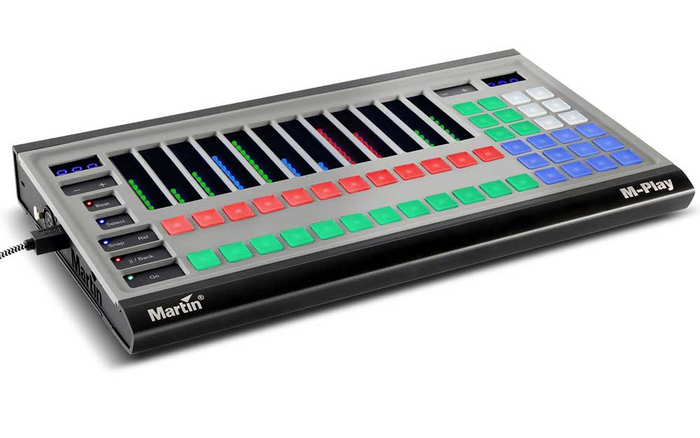

Elation Pro Lighting M-Play
Lighting Control Surface

OUR PART #:  M-PLAY

The Elation M-Play control surface is a great companion for both M-PC and M-Touch.
Learn More
Our Price: $480.00
List Price: $600.00
You save 20%!

5.0 / 5

★★★★★ 1 Review. Write Yours
Elation Pro Lighting M-Play
Qty:
In Stock

Related Products

The Elation M-Play control surface is a great companion for both M-PC and M-Touch. Featuring a truly innovative control surface with 12 FSR faders that let you control playbacks, while 48 velocity-controlled pads let you access playbacks and any function key. Elation M-Play comes with one DMX 512 universe for direct control of any compatible DMX device.

Elation M-Play Features:

  • 12 Force Fade for playback control with LED visual feedback
  • 24 Playback Force Touch velocity pad
  • 24 Playback Force Touch velocity pad or Function keys
  • Dual bank system (2 X 24) with 2 selectors and 3digits bank indicator
  • Dedicated Beat trigger button
  • Select, Snap, Release, Pause and Main Go touch buttons

Elation M-Play Specifications:

  • Ordering Information:
    • Elation M-Play: P/N 90737030
  • Physical:
    • Length: 15.5" (394 mm)
    • Width: 8.6" (219 mm)
    • Height: 1.9" (47 mm)
    • Weight: 4.0 lbs. (1.8 kg)
  • Control/User Interface:
    • Bank navigation: Up/Down with numerical display (Section 1)
    • Bank navigation: Up/Down with numerical display (Section 2)
    • Main Go section: Snap, Release, Pause and Go buttons
    • Beat and Select button
  • Playback:
    • 12 Playback Touch faders with 1 button (Velocity Pad), Playback section 1
    • 12 Playback buttons (Velocity Pad), Playback section 1
    • 24 Playback buttons (Velocity Pad), Playback section 2
  • IP Rating: IP20
  • Connections:
    • DMX universe output: 5-pin locking XLR
    • USB 2.0 input
  • Electrical:
    • Power: 5 VDC over USB
    • Maximum current: 500 mA
  • Thermal:
    • Maximum ambient temperature (Ta Max.): 104° F (40° C)
    • Minimum ambient temperature (Ta min.): 32° F (0° C)
  • Included Items: 4.9 ft (1.5 m) USB cable
