Product Overview

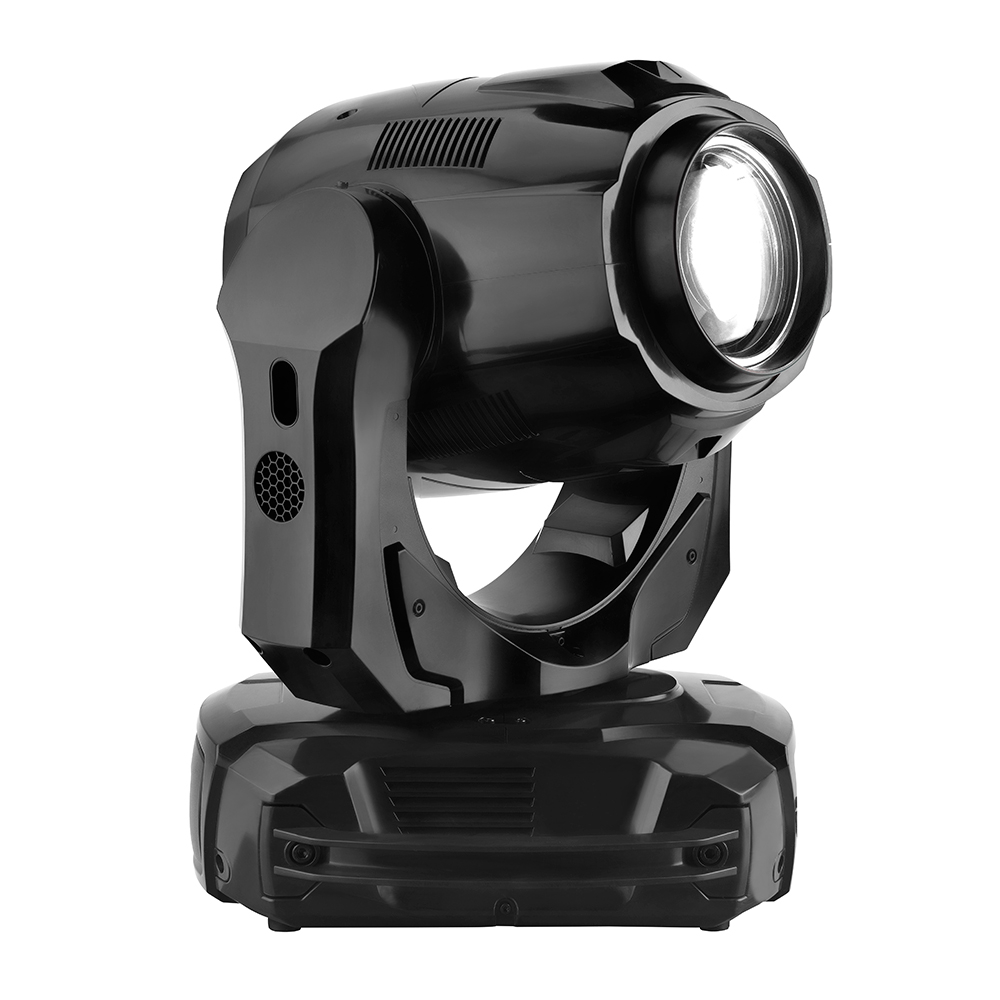

Martin's MAC Axiom™ Hybrid is a true all-in-one product, combining beam and spot into one compact unit that also offers diffused wash functionality. The high-precision optical system offers exceptional contrast, both in mid-air and projection as well as a surprisingly flat field, usually not seen with this short-arc lamp technology. The implementation of the MAC Viper CMY color palette gives designers the advantage of unlimited choice from subtle pastel shades to deep and saturated colors. All this comes in a small footprint and lightweight product which delivers superior performance in the best feature vs. size and weight ratio available in the market.
Martin 90490000 MAC Axiom™ Hybrid Includes:
- Two mounting brackets with quarter-turn fasteners
- Flightcase for 2 x MAC Axiom Hybrid: P/N 91515037
- Power Cables: Power input cable, 14 AWG, SJT, 1.5 mm², H05VV-F, with female PowerCon TRUE1 NAC3FX-W power input connector, 3 m (9,8 ft.): P/N 11541513
- Power Connectors: Neutrik PowerCon TRUE1 NAC3FX-W Cable connector, power input, female: P/N 05323416
- Installation hardware: Half-coupler clamp: P/N 91602005 G-clamp (suspension with yoke vertically downwards only): P/N 91602003 Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007 Safety wire, safe working load 50 kg (110 lbs.): P/N 91604003
Martin 90490000 MAC Axiom™ Hybrid Features:
- Zoom: 2-44° (continuous, no Beam/Spot modes)
- 16 000 lumens wide / 14 000 lumens narrow
- 31 000 000 cd high-intensity narrow beam
- Low weight: 24.8 kg / 54.7 lbs.
- Very compact
- Real CMYC color mixing (MAC Viper color palette)
- Independent 16-slot color wheel
- Two gobo wheels (9 rot. & 16 stat.) with super-crisp projection and high contrast on surfaces and in mid-air
- Animation effects integrated into fixed gobo wheel
- Independent 3- and 8-facet prisms with unique patented dynamic ‘prism lineator’ zoom effect
- Beamsmoother (for flat field projection)
- Frost (for wash effect)
- Backlit LCD onboard display with auto-flip
- PowerCon TRUE1 mains input connector
- 5-pin XLR DMX connectors
- RDM functionality
- 100-240 V operation, 600 W total power consumption
Martin 90490000 MAC Axiom™ Hybrid Specifications:
- Physical:
- Length (base): 399 mm (15.8")
- Width (across yoke): 414 mm (16.3")
- Height (head straight up): 616 mm (24.3")
- Height (maximum): 630 mm (24.9")
- Weight: 24.8 kg (54.7 lbs.)
- Dynamic Effects:
- Color mixing: CMYC (MAC Viper color palette), independently
- variable 0 - 100%
- Color wheel: 16 dichroic filters + open, indexing, continuous rotation, random color
- Rotating gobo wheel: 9 interchangeable rotating gobos + open, gobo indexing, continuous rotation and shake
- Fixed gobo wheel: 16 static gobos + open, gobo animation effect
- Prism 1: 3-facet rotating prism with dynamic prism zoom effect (”prism lineator”)
- Prism 2: 8-facet rotating prism with dynamic prism zoom effect (”prism lineator”)
- Frost filter for wash effect
- Beamsmoother for flat field projection
- Mechanical dimmer/shutter: 0 - 100% dimming, strobe effect 2 - 10 Hz, pulse effects, instant open and blackout
- Focus: 2 m (6.6 ft.) to infinity
- Zoom: 2° - 44° continuous (no Beam or Spot modes)
- Pan: 540°
- Tilt: 260°
- Position correction system: Absolute position monitoring
- Control and Programming:
- Control platform: DMX and RDM
- DMX channels: 23
- Configuration and addressing: Onboard control panel or via DMX
- 16-bit control: Focus, pan and tilt
- Onboard display panel: Backlit LCD with auto-flip
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Receiver: Isolated RS-485
- Firmware update: Windows PC and USB-DMX hardware interface
- Lamp:
- Type: 440 W short-arc discharge
- Color temperature: 7000 K
- CRI (Color rendering index): >80
- Average lifetime: 1500 hours
- Approved lamp: Osram Sirius HRI 440 W
- Photometric Data:
- Max. output, wide: 16 000 lm
- Max. output, narrow: 14 000 lm
- Max. luminous intensity: 31 000 cd
- Fixture identification: User-settable fixture ID number
- Construction:
- Color(s): Black
- Housing: Alloy, steel, UV-resistant fiber-reinforced composite
- Reflector: Glass, cold light
- Protection rating: IP20
- Installation:
- Mounting points: Four quarter-turn locking points
- Orientation: Any
- Minimum distance to illuminated surfaces: 15 m (49.3 ft.)
- Minimum distance to combustible materials: 0.2 m (0.7 ft.)
- Connections:
- AC power input: Neutrik PowerCon TRUE1
- DMX and RDM data in/out: 5-pin locking XLR
- Electrical:
- AC power: 100-240 V nominal, 50/60 Hz
- Typical power consumption: 600 W
- Power supply unit: Auto-ranging electronic switch-mode
- Typical Power and Current:
- 110 V, 60 Hz: 5.5 A, 600 W, PF > 0.9 typical
- 230 V, 50 Hz: 2.7 A, 600 W, PF > 0.9 typical
- Thermal:
- Cooling: Filtered forced air (temperature-regulated, low noise)
- Maximum ambient temperature (Ta max.): 104° F (40° C)
- Maximum surface temperature, steady state, at 40° C ambient: 90° C (194° F) Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz): 2050 BTU/hr
- Approvals:
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55015; EN 55032; EN 55103-1,-2; EN 61000-3-2,-3; EN 61000-4-2, -4, -5; EN 61547
- US safety (pending): UL 1573
- US EMC: CFR 47 Part 15 Class A
- Canadian safety (pending): CSA C22.2 No. 166
- Canadian EMC: ICES-003 Class A
- Australia/NZ (pending): RCM
