Martin Professional 90280110 RUSH MH 8 Mini Profile
18w White LED Compact Moving Head Profile

OUR PART #:  RUSH-MH8-MINI

Our Price: $499.00
List Price: $623.75
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Martin Professional 90280110 RUSH MH 8 Mini Profile
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

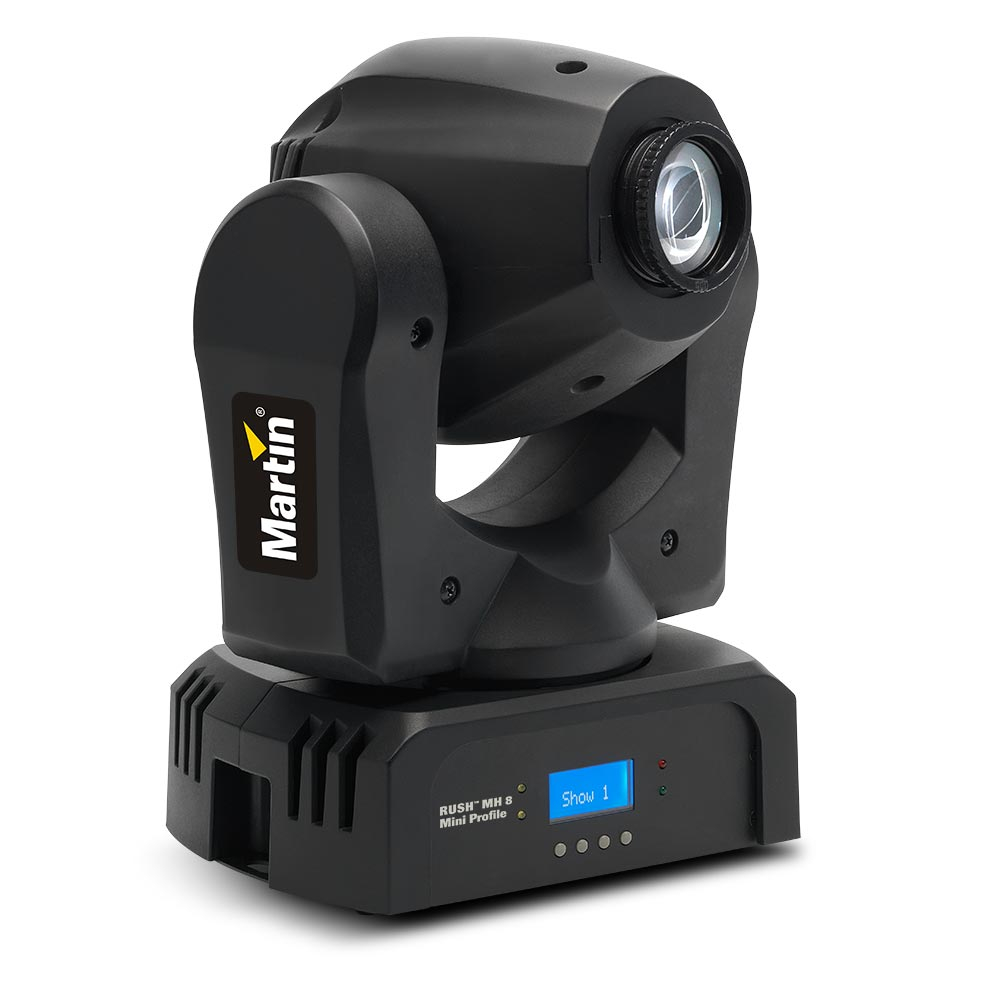

Martin's 90280110 RUSH MH 8 Mini Profile is Martin Professionals smallest moving head to date with super sharp optics which delivers a high output that punches above its class. High speed pan & tilt with separate color and gobo wheels allows designers maximum flexibility from the lounge bar to the high energy dance floor all within an affordable price bracket.

The MH 8 Mini Profile uses the latest 18W White LED Technology that delivers super sharp optics with over 800 Lumens via a 14° beam angle. 8 individual gobos and colors are available with electronic strobe/dimming, manual focus and high speed Pan and Tilt via DMX or Audio Trig. This compact moving head only weighs 4.5KG.

Accessories:

  • G-clamp: P/N 91602003
  • Half-coupler clamp: P/N 91602005
  • Quick-trigger clamp: P/N 91602007
  • Safety cable, safe working load, 50 kg (110 lbs.): P/N 91604003

Martin 90280110 Includes:

  • Power cable, 1.9 m (6.3 ft.) without mains plug
  • Power cable, 1.9 m (6.3 ft.) with US plug
  • Bracket for rigging clamp attachment

Martin 90280110 Features:

  • Super Sharp Optics
  • Gobo projection is crisp and flat which is classleading in this product category
  • High Output
  • Latest generation Osram 18W LED allows >800 Lumenswhich is class leading in this category.
  • Separate Color and Gobo Wheel
  • Allows designers maximum flexibility

Martin 90280110 Specifications:

  • Physical:
    • Length: 6.1" (157 mm)
    • Width: 9.3" (237 mm)
    • Height: 12.9" (327 mm)
    • Weight: 9.9 lbs. (4.5 kg)
  • Dynamic Effects:
    • Color wheel: 8 colors plus open, variable and random rotation
    • Gobo wheel: 8 static gobos plus open, variable and random rotation
    • Strobe: Variable from 3 - 20 Hz, pulse effects and random strobe
    • Electronic dimming: 0 - 100%, four dimming curve options
    • Pan: 540°
    • Tilt: 230°
  • Control and Programming:
    • Control options: DMX, 4 stand-alone shows, master/slave
    • DMX channels: 10
    • Stand-alone trigger: Auto, music
    • DMX compliance: USITT DMX512/1990
    • Interface: Control panel with backlit LCD display
  • Optics:
    • Light source: 18 W OSRAM LE UW Q8WP LED
    • Minimum LED lifetime: 50 000 hours (to >70% luminous output)
    • Beam angle: 14°
    • Focus: Manual
  • Construction:
    • Color: Black
    • Housing: High-impact flame-retardant thermoplastic
    • IP rating: IP 20
  • Installation:
    • Mounting points: Bracket for rigging clamp
    • Location: Dry location only, must be fastened to surface or structure
    • Orientation: Vertical (head down if suspended)
    • Minimum distance to illuminated surfaces: 8" (200 mm)
    • Minimum distance to combustible materials: 4" (100 mm)
    • Minimum clearance around fans and vents: 4" (100 mm)
  • Connections:
    • AC power input: IEC
    • DMX data in/out: 3-pin and 5-pin locking XLR
  • Electrical:
    • AC power: 100-240 V nominal, 50/60 Hz
    • Power supply unit: Auto-ranging electronic switch mode
    • Fuse: T 2.0 A
  • Typical Power and Current:
    • 120 V, 60 Hz: 52 W, 0.8 A
    • 230 V, 50 Hz: 50 W, 0.5 A
    • Typical half-cycle RMS inrush current: 6.4 A
  • Thermal:
    • Cooling: Forced air (temperature-regulated, low noise)
    • Maximum ambient temperature (Ta max.): 104° F (40° C)
    • Minimum ambient temperature (Ta min.): 32° F (0° C)
    • Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 180 BTU/hr.
  • Approvals:
    • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
    • EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-4-2, EN 61547
    • US safety: UL 1573 US EMC: CFR Title 47 Part 15 Class A
    • Canadian safety: CSA C22.2 No. 166
    • Canadian EMC: ICES-003 Class A
    • Australia/NZ (pending): RCM
