West Penn 254245
1000 ft CAT5E Network Plenum Cable

OUR PART #  254245-1000

Selected Model Price: $165.48
List Price: $242.62

Save up to 32%! (Low Price Guarantee)
Select model: (shipping times are approximate)

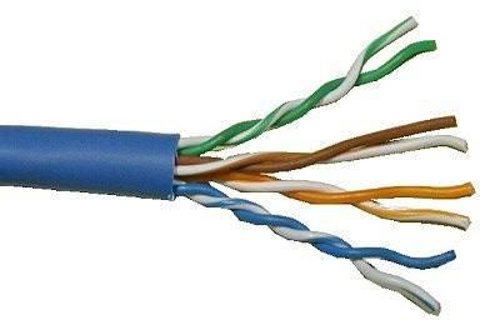

West Penn's 254245 is an unshielded CAT5E network plenum cable with 4 pairs of 24 AWG solid bare copper conductors and an overall plenum PVC jacket. Applications include Ethernet, IP cameras, digital integration, and more.

West Penn 254245 CAT5E Network Plenum Cable Specifications:

Construction Specifications:

  • Conductor: 24 AWG Bare Copper
  • Stranding: Solid
  • Number of Conductors: 8 (4 Pair)
  • Insulation: Dual Insulation FEP - 0.008"
  • Shield: None
  • Drain: None
  • Jacket Material: Plenum PVC
  • Overall Cable Diameter: 0.190'' Nom.
  • Approximate Cable Weight: 25 lbs/1M' Nom.
  • Flame Rating: NFPA 262

Electrical & Environmental Specifications:

  • Operating Temperature Rating: -20°C to +60°C
  • Operating Voltage Rating: 300 V RMS
  • DC Resistance per Conductor @ 20ºC: 9.38 Ohms/100m Nom.
  • Mutual Capacitance: 14pf/ft Nominal
  • Nominal Impedance: 100 Ohms+/-15% (1-100 Mhz)
  • Velocity of Propogation: 66% Nominal
  • Delay Skew: 45ns/100m MAX
  • Standards: TIA/EIA568-C.2
  • Insulation Colors: 1.Blue/White-Blue, 2. Orange/White-Orange, 3.Green/White-Green, 4. Brown/White-Brown
  • RoHS Compliant: Yes
  • NEC Rating: CMP
  • Approvals: (UL) C(UL) Listed or c(ETL)us Listed

West Penn 254245
1000 ft CAT5E Network Plenum Cable

OUR PART #  254245-1000

Product Information:

West Penn's 254245 is an unshielded CAT5E network plenum cable with 4 pairs of 24 AWG solid bare copper conductors and an overall plenum PVC jacket. Applications include Ethernet, IP cameras, digital integration, and more.

West Penn 254245 CAT5E Network Plenum Cable Specifications:

Construction Specifications:

  • Conductor: 24 AWG Bare Copper
  • Stranding: Solid
  • Number of Conductors: 8 (4 Pair)
  • Insulation: Dual Insulation FEP - 0.008"
  • Shield: None
  • Drain: None
  • Jacket Material: Plenum PVC
  • Overall Cable Diameter: 0.190'' Nom.
  • Approximate Cable Weight: 25 lbs/1M' Nom.
  • Flame Rating: NFPA 262

Electrical & Environmental Specifications:

  • Operating Temperature Rating: -20°C to +60°C
  • Operating Voltage Rating: 300 V RMS
  • DC Resistance per Conductor @ 20ºC: 9.38 Ohms/100m Nom.
  • Mutual Capacitance: 14pf/ft Nominal
  • Nominal Impedance: 100 Ohms+/-15% (1-100 Mhz)
  • Velocity of Propogation: 66% Nominal
  • Delay Skew: 45ns/100m MAX
  • Standards: TIA/EIA568-C.2
  • Insulation Colors: 1.Blue/White-Blue, 2. Orange/White-Orange, 3.Green/White-Green, 4. Brown/White-Brown
  • RoHS Compliant: Yes
  • NEC Rating: CMP
  • Approvals: (UL) C(UL) Listed or c(ETL)us Listed
