West Penn 25226B-1000-BLK
1000 ft of 2 Conductor 14 AWG Plenum Cable in Black

OUR PART #  25226B-1000-BLK

Our Price: $288.08
List Price: $454.14
You save 37%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

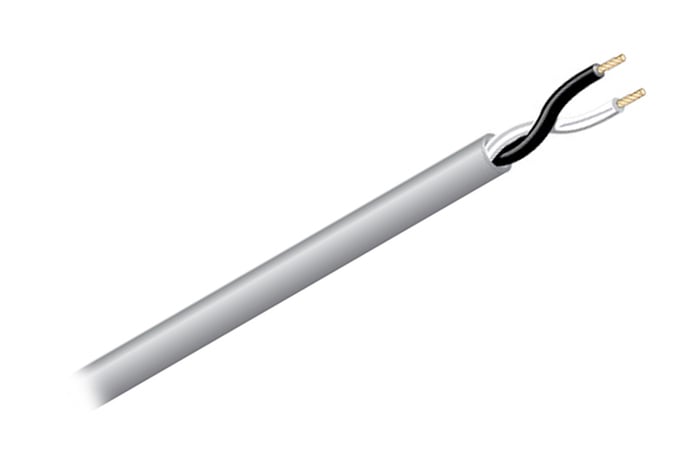

West Penn's 25226B is an unshielded plenum communication cable with 1 pair of 14 AWG stranded bare copper conductors and an overall PVC jacket.

West Penn 25226B Plenum Communication Cable Specifications:

Construction Specifications:

  • Conductor: 14 AWG Bare Copper
  • Stranding: 19x27
  • Insulation Material: Flex Plenum PVC
  • Insulation Thickness: 0.010'' Nom.
  • Number of Conductors: 2
  • Shield: None
  • Drain: None
  • Jacket Material: Flex Plenum PVC
  • Jacket Thickness: 0.015'' Nom.
  • Overall Cable Diameter: 0.218'' Nom.
  • Approximate Cable Weight: 36 Lbs/1M' Nom.
  • Flame Rating: NFPA 262 Flame Test

Electrical & Environmental Specifications:

  • Temperature Rating: -10°C To +60°C
  • Operating Voltage: 150 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 34 pf/ft Nom.
  • DC Resistance per Conductor @ 20ºC: 2.7 Ohms/1M' Nom.
  • Insulation Colors: Black, Red
  • Jacket Color: Gray, Black
  • RoHS Compliant: Yes
  • NEC Rating: CL2P, NEC Article 725
  • Approvals: (UL) or (ETL)us Listed

Mechanical Specifications:

  • Max. Recommended Pull Tension: 84 lbs
  • Min. Bend Radius (Install): 2.25"

West Penn 25226B-1000-BLK
1000 ft of 2 Conductor 14 AWG Plenum Cable in Black

OUR PART #  25226B-1000-BLK

Product Information:

West Penn's 25226B is an unshielded plenum communication cable with 1 pair of 14 AWG stranded bare copper conductors and an overall PVC jacket.

West Penn 25226B Plenum Communication Cable Specifications:

Construction Specifications:

  • Conductor: 14 AWG Bare Copper
  • Stranding: 19x27
  • Insulation Material: Flex Plenum PVC
  • Insulation Thickness: 0.010'' Nom.
  • Number of Conductors: 2
  • Shield: None
  • Drain: None
  • Jacket Material: Flex Plenum PVC
  • Jacket Thickness: 0.015'' Nom.
  • Overall Cable Diameter: 0.218'' Nom.
  • Approximate Cable Weight: 36 Lbs/1M' Nom.
  • Flame Rating: NFPA 262 Flame Test

Electrical & Environmental Specifications:

  • Temperature Rating: -10°C To +60°C
  • Operating Voltage: 150 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 34 pf/ft Nom.
  • DC Resistance per Conductor @ 20ºC: 2.7 Ohms/1M' Nom.
  • Insulation Colors: Black, Red
  • Jacket Color: Gray, Black
  • RoHS Compliant: Yes
  • NEC Rating: CL2P, NEC Article 725
  • Approvals: (UL) or (ETL)us Listed

Mechanical Specifications:

  • Max. Recommended Pull Tension: 84 lbs
  • Min. Bend Radius (Install): 2.25"
