AJA Video Systems Inc OG-3G-AM
openGear 8-Channel AES Embedder/Disembedder

OUR PART #:  OG-3G-AM

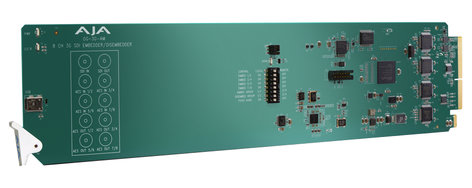

The AJA Video Systems Inc. OG-3G-AM is a state-of-the-art, openGear-compatible, 8-channel AES audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p/60.
Learn More
Our Price: $795.00
Write the first review.
AJA Video Systems Inc OG-3G-AM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The AJA Video Systems Inc. OG-3G-AM is a state-of-the-art, openGear-compatible, 8-channel AES audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p/60. Simple user controls allow channel enabling and mapping. A 10 BNC rear Open Gear connector module is included.

AJA Video Systems Inc. OG-3G-AM Features:

  • 3G-SDI Embedder / Disembedder in one board
  • Input:
    • 3G-SDI, BNC connector
    • Four AES, BNC connector (2 channels per input)
  • Outputs:
    • 3G-SDI, BNC connector
    • Four AES, BNC connector (2 channels per output)
  • Local and Remote modes
  • Pass or drop non-audio HANC packets
  • Configure via USB and Mini-Config software or DIP switch
  • Power: 5.0 watts
  • Hot swap capable
  • Compatible with DFR-8321 and OG3 openGear frames

AJA Video Systems Inc. OG-3G-AM Specifications:

  • Video Formats:
    • 3Gb SDI (level A or B):
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080i 25, 29.97, 30
      • (HD) 1280 x 720p 50, 59.94, 60
    • 1.5Gb SDI
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
      • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080i 25, 29.97, 30
      • (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 270Mb SDI:
      • (SD) 625i
      • (SD) 525i
  • Video Input Digital: 3G-SDI BNC, SMPTE-259/292/424
  • Video Output Digital: 3G-SDI BNC, SMPTE-259/292/424
  • Audio Input Digital: Four BNC
  • Audio Output Digital:
    • SDI embedded audio, 24-bit, 8-Channel
    • Four BNC
  • Audio Data Formats:
    • AES3 2003
    • SMPTE ST 337
  • Digital Audio Converters: 24-bit
  • Embedded Audio:
    • SDI embedded audio, 24-bit, 16-channel*
    • SMPTE ST 272 (SD): 20-bit, 48 KHz synchronous
    • SMPTE ST 299 (3G/HD): 24-bit, 48 KHz synchronous
    • Incoming embedded audio can be passed, removed, or overridden
  • Embed Path Audio Latency (Time measured between audio input and video output connector):
    • 1500 usec (SRC ON)
    • 400 usec (SRC OFF)
  • Disembed Path Audio Latency (Time measured between video input and audio output connector): 210 usec
  • User Interface: AJA Mini-Config Software (via USB on front panel)
  • Slots: Two slots required for each card
  • Size (w x d x h):
    • openGear standard form-factor, front slot and rear card
    • Rear Card: OG-10-BNC-Rear
      • Ten BNC, SMPTE-259/292/424
  • Weight: 0.5 lb (0.3 kg)
  • Power: openGear frame compatible, 5.0 watts max per card
  • Environment:
    • Safe Operating Temperature: 32°-104°F (0°-40°C)
    • Safe Storage Temperature (Power OFF): -40°-140°F (-40°-60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <10,000 feet (<3,000 meters)

*NOTE: 2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8-Channels embedded audio
