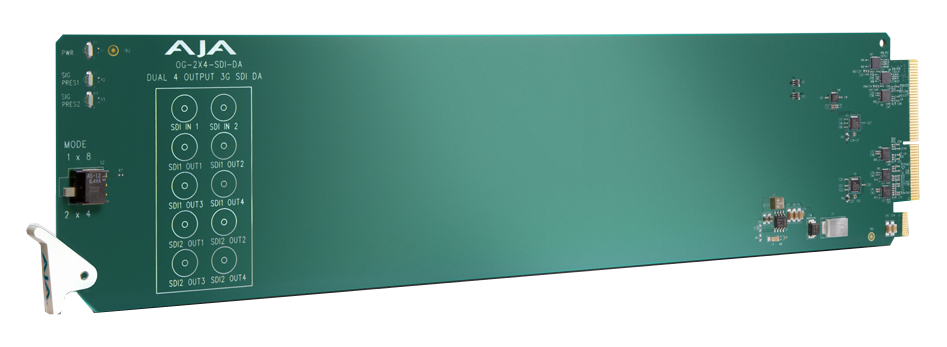

AJA Video Systems Inc OG-2X4-SDI-DA
openGear dual 1x4 3G-SDI Distribution Amplifier

OUR PART #:  OG-2X4-SDI-DA

The AJA Video Systems Inc.'s OG-2x4-SDI-DA is an openGear-compatible, state of the art 3G-SDI distribution amplifier.
Learn More
Our Price: $550.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc OG-2X4-SDI-DA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA Video Systems Inc.'s OG-2x4-SDI-DA is an openGear-compatible, state of the art 3G-SDI distribution amplifier. The incoming 3G-SDI signals on the two input channels are reclocked and distributed to four 3G-SDI outputs each, or alternatively can function as a 1 x 8-Channel DA, allowing the same signal to be sent to eight destinations simultaneously. This dual input capability allows double the number of DAs in limited frame space. A 10 BNC rear Open Gear connector module is included.

AJA Video Systems Inc. OG-2x4-SDI-DA Features:

  • Input:
    • Two 3G-SDI, BNC connector (2 x 4 mode)
    • 3G-SDI, BNC connector (1 x 8 mode)?
  • Outputs:
    • Four 3G-SDI each DA, BNC connector (2 x 4 mode)
    • Eight 3G-SDI, BNC connector (1 x 8 mode)
  • Automatic cable equalizer and automatic reclocker bypass
  • Automatic detection and reclocking of 270Mb, 1.5Gb, and 3Gb SDI data rates
  • Advanced jitter input tolerance and low jitter reclocked outputs
  • Power: 2.0 watts max per card
  • Hot swap capable
  • Compatible with DFR-8321 and OG3 openGear frames

AJA Video Systems Inc. OG-2x4-SDI-DA Specifications:

  • Video Formats: 100 Mbps - 3 Gbps, format agnostic
  • Video Input Digital:
    • 8 Mode (Single 1x8 DA)
    • 3G-SDI BNC, SMPTE-259/292/424
    • Two 4 Mode (Dual 1x4 DA)
    • Two 3G-SDI BNC, SMPTE-259/292/424
  • Video Output Digital:
    • 8 Mode (Single 1x8 DA)
    • Eight 3G-SDI, SMPTE-259/292/424
    • Four outputs noninverting
    • Two 4 Mode (Dual 1x4 DA)
    • Eight 3G-SDI, SMPTE-259/292/424
    • Two outputs noninverting (each DA)
  • Cable Equalization (Belden 1694A coax):
    • 270 Mbps, 350m
    • 1.5 Gbps, 200m
    • 3 Gbps, 120m
  • Reclocking:
    • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked
  • Size (w x d x h):
    • openGear standard form-factor, front slot and rear card
    • Slots: Two slots required for each card
    • Rear Card: OG-10-BNC-Rear
    • Ten BNC, SMPTE-259/292/424
  • Weight: 0.2 lb (0.1 kg)
  • Power: openGear frame compatible, 2.0 watts max per card
  • Environment:
    • Safe Operating Temperature: 32°-104°F (0°-40°C)
    • Safe Storage Temperature (Power OFF): -40°-140°F (-40°-60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <10,000 feet (<3,000 meters)
