AJA Video Systems Inc KONA-IP-R0
IP Video/Audio I/O card

OUR PART #:  KONA-IP-R0

AJA Video Systems Inc.'s KONA IP is desktop video and audio I/O for professional IP-based workflows.
Learn More
Our Price: $2,495.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc KONA-IP-R0
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

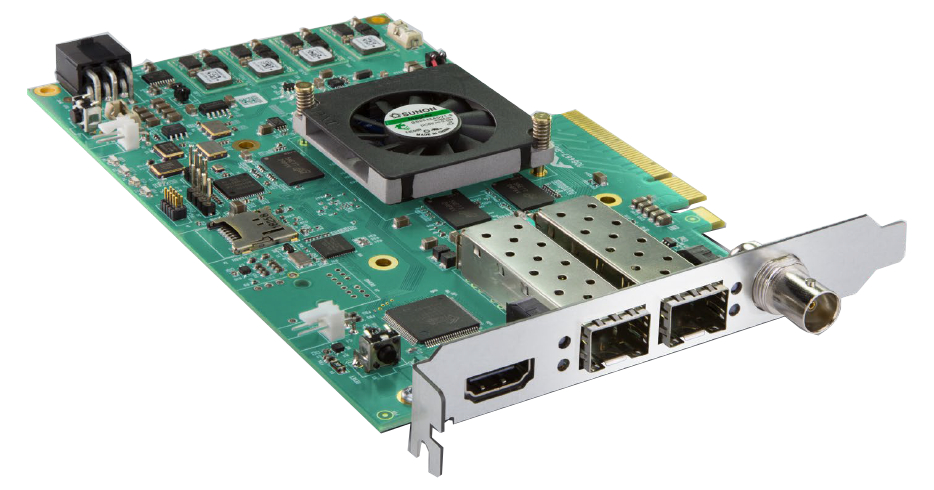

AJA Video Systems Inc.'s KONA IP is desktop video and audio I/O for professional IP-based workflows. KONA IP is the next generation of AJA’s industry-leading KONA line of PCIe capture and playback cards, and works with AJA's Control Room, Control Panel software and SDK tools, providing support for leading third party content creation applications. Designed as a flexible platform with support for SMPTE 2022-6 uncompressed IP video needs, KONA IP offers you the flexibility to keep current as the IP transition proceeds.

AJA Video Systems Inc. KONA-IP-R0 Specifications:

  • Video Formats:
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 25, 29.97
    • (HD) 720P 50, 59.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Media Transport Interface for 2022-6:
    • Two x SFP+ Cages - SFPs not included.
      • Recommended SFP Modules:  Finisar's FTLX1471D3BCL? and Avago AFBR-709SMZ
  • Video Output Digital:
    • HDMI v1.4
      • 30/36 bits/pixel, RGB or YUV, 2.25 Gbps
      • UltraHD with HFR support up to 60p 4:2:0 8-bit
      • 2K/HD/SD
  • Audio Input Digital: 16-Channel SDI embedded audio, 24-bit per channel, 48 kHz synchronous
  • Audio Output Digital:
    • 16-Channel SDI embedded audio, 24-bit per channel, 48 kHz sample rate, synchronous
    • 8-Channel HDMI embedded audio, 48 kHz sample rate, synchronous
  • Downstream Keyer:
    • Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte
  • Reference and LTC I/O: BNC assignable to reference video or LTC input
  • Reference:
    • Analog Color Black (1V) or Composite Sync (2 or 4V)
    • Nonterminating
  • User Interface: 8-lane PCIe 2.0
  • Size (WxDxH): 0.75" x 8.25" x 5.0" (19.05mm x 209.55mm x 127mm)
  • Weight: 0.7 lb (0.4 kg)
  • Power: 25W typical, 27W maximum
  • Environment:
    • Safe Operating Temperature: 32°-104°F (0°-40°C)
    • Safe Storage Temperature (Power OFF): --40°-140°F (40°-60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
