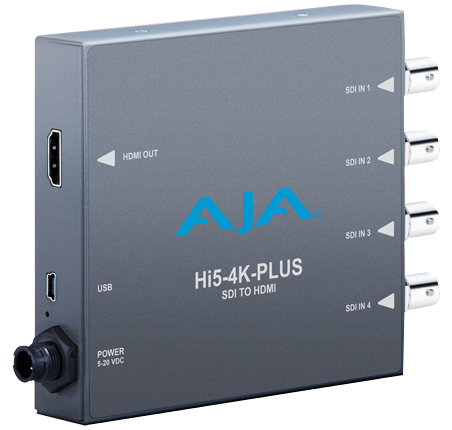

AJA Video Systems Inc HI5-4K-PLUS-R0
Convert 4K/UltraHD SDI Signals to HDMI

OUR PART #:  HI5-4K-PLUS-R0

AJA Video Systems Inc’s Hi5-4K-Plus preserves your vision with pristine image fidelity and HFR support up to 60p for 4K/UltraHD SDI to HDMI 2.0 conversion needs.
Learn More
Our Price: $695.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc HI5-4K-PLUS-R0
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AJA Video Systems Inc’s Hi5-4K-Plus preserves your vision with pristine image fidelity and HFR support up to 60p for 4K/UltraHD SDI to HDMI 2.0 conversion needs. Hi5-4K-Plus provides a simple monitoring connection from professional 4K devices using Quad 3G-SDI, Quad 1.5G-SDI, or Dual 3G-SDI outputs to new displays with HDMI 2.0 inputs, for cost-effective monitoring for 4:2:2/4:4:4 60p professional workflows.

AJA Video Systems Inc Hi5-4K-Plus Features:

  • Four 3G-SDI inputs
  • Support for 4:2:2/4:4:4 HDMI 2.0 output
  • HD conversion supported
  • Embedded audio support]
  • Configure via USB port and supplied MiniConfig software
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • 5-year warranty

AJA Video Systems Inc Hi5-4K-Plus Specifications:

  • Video Formats: (4K/UltraHD formats support Two Sample Interleave (2SI) and Quadrant source mapping)
  • Four x 3 Gb SDI (Level A or B-Dual Link):
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
  • Four x 1.5 Gb SDI:
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
  • Two x 3 Gb SDI (Level B-Dual Stream):
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
  • Three Gb SDI (Level A or B-Dual Link):
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080i 25, 29.97, 30
    • (HD) 1280 x 720p 50, 59.94, 60
  • 1.5 Gb SDI:
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080i 25, 29.97, 30
    • (HD) 1280 x 720p 50, 59.94, 60
  • 270 Mb SDI:
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Video Input Digital:
    • Four x 3G-SDI BNC
    • SMPTE-259/292/424
  • Video Output Digital:
    • HDMI Type A connector
      • HDMI v1.4a 4K/UltraHD 4:2:2 up to 30fps, 4:2:0 up to 60fps
      • HDMI v2.0 4K/UltraHD 4:2:2/4:4:4 up to 60fps
  • HDCP:
    • The Hi5-4K-PLUS does not encode the HDMI with HDCP encryption.  By definition, HD-SDI inputs to the Hi5-4K are unencrypted
    • The HDMI specification requires HDMI monitors to support unencrypted inputs
  • Audio Input Digital: SDI embedded audio, 24-bit, 8-Channel
  • Audio Output Digital: SDI embedded audio, 24-bit, 8-Channel
  • Size (w x d x h): 4.020" x 5.765" x 0.9" (102.108mm x 146.431mm x 22.86mm)
  • Weight: 0.5 lb (0.3 kg)
  • Power: 5-20VDC regulated, 8 watts, power supply required, included with purchase
  • Environment:
    • Safe Operating Temperature: 32°-104° F (0°-40°C)
    • Safe Storage Temperature (Power OFF): -40°-140°F (-40°-60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <10,000 feet (<3,000 meters)
