Product Overview

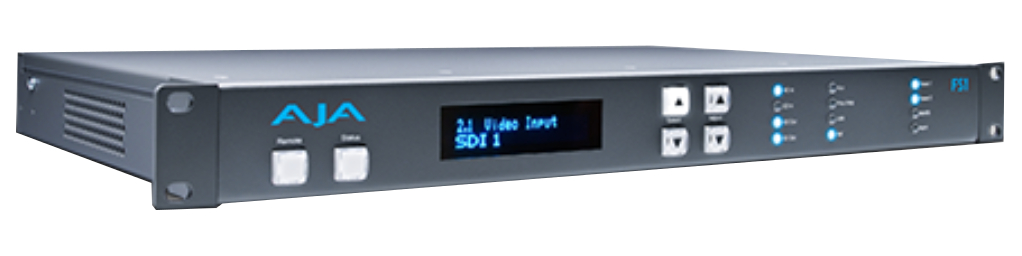

The FS1 from AJA is a single channel HD/SD Frame Sync and Up/Down Cross-Converter that is loaded with comprehensive I/O. This lets it handle the widest range of analog and digital signals - and convert between them. With the powerful and flexible FS1 you now have a frame synchronizer and high quality converter that helps you work with mismatched signal types to establish a consistent format for post production or broadcast.
Featuring a flexible input, output, and control architecture, the FS1 Universal HD/SD Audio/ Video Frame Synchronizer and Converter can simultaneously work with both HD and SD video all in full 10-bit broadcast quality video and 24-bit audio. Supporting virtually any input or output, analog or digital, HD or SD, FS1 can up or down-convert between SD and HD, and provide simultaneous HD and SD outputs. Up, down, cross-conversion between HD formats are also supported, with simultaneous output of both formats.
These qualities make the FS1 ideal for use in broadcast and post production environments, as it also features Dual HD/SD-SDI inputs and outputs, comprehensive multi-channel audio connections and I/O for analog video equipment, including HD and SD component. For audio, FS1 supports 8-channel AES, balanced analog, or 16-channel embedded audio with full flexibility and audio processing controls. You can choose from any of the 4 groups of embedded audio for 8-channel output on the AES or analog audio.
Features
- Flexible input, flexible output
- AJA hardware conversion technology
- Digital and analog I/O flexibility
- Remote configuration and control
- Closed caption conversation
- Active format description
- Composite SD Analog I/O
- Up, down, cross-conversion
Specifications
- Video Formats:
- 1080i 25, 29.97, 30
- 1080PsF 23.98, 24
- 720p 50, 59.94, 60
- 625i 25
- 525i 29.97
- Digital Video Input:
- Dual SD/HD SDI, SMPTE-259/292/296, 8 or 10-bits: Single Link 4:2:2 (1 x BNC each)
- Analog Video Input:
- HD component YPbPr, SMPTE-274 (3 x BNC)
- 12-bit A/D, 2 x oversampling
- SD Component (3 x BNC)
- SMPTE/EBU N10, Betacam 525 line, Betacam 525J
- 12-bit A/D, 4 x oversampling
- +/- .25 dB to 5.5 mHz Y frequency response
- +/- .25 dB to 2.5 mHz C frequency response
- .5% 2T pulse response
- < 2 ns Y/C delay inequity
- SD Composite/YC (S-Video): 12-bit A/D, 4 x oversampling
- Digital Video Output:
- Dual SD/HD SDI, SMPTE-259/292/296, 8 or 10-bits
- Single Link 4:2:2 (1 x BNC each)
- Analog Video Output:
- HD component YPbPr/RGB, SMPTE-274 (3 x BNC)
- 12-bit D/A, 2 x oversampling
- SD Component (3 x BNC)
- SMPTE/EBU N10, Betacam 525 line, Betacam 525J
- 12-bit D/A, 4 x oversampling
- +/- .25 dB to 5.5 mHz Y frequency response
- +/- .25 dB to 2.5 mHz C frequency response
- .5% 2T pulse response
- < 2 ns Y/C delay inequity
- SD Composite/YC (S-Video): 12-bit D/A, 4 x oversampling
- Digital Audio Input:
- 16-Channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
- 8-Channel, 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (4 x BNC)
- Analog Audio Input:
- 8-Channel, 24-bit A/D analog audio, 48 kHz sample rate, balanced (8 x XLR via 25-pin breakout cable)
- +12dBu, +15dBU, +18dBu, +24dBu (Full ScaleDigital)
- +/- 0.2db 20 to 20 kHz frequency response
- Digital Audio Output:
- 16-Channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
- 8-Channel, 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (4 x BNC)
- Analog Audio Output:
- 8-Channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced (8 x XLR via 25-pin breakout cable)
- +12dBu, +15dBU, +18dBu, +24dBu (Full ScaleDigital)
- +/- 0.2db 20 to 20 kHz frequency response
- Up-Conversion:
- Hardware 10-bit
- Anamorphic: fullscreen
- Pillarbox 4:3: results in a 4:3 image in center of screen with black sidebars
- Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
- Zoom Letterbox: results in image zoomed to fill full screen
- Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change
- Down-Conversion:
- Hardware 10-bit
- Anamorphic: fullscreen
- Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
- Crop: image is cropped to fit new screen size
- Cross-Conversion:
- Hardware 10-bit
- 1080i to 720P
- 720p to 1080i
- 720p to 1080PsF
- SD to SD Aspect Ratio Conversion:
- Letterbox: This transforms SD anamorphic material to a letterboxed image
- H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
- SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
- V Crop: Will transform SD letterbox material to an anamorphicimage
- Timecode: SDI RP188 via SDI BNC
- Reference Input:
- Analog Color Black (1V) or Composite Sync (2 or 4V)
- Looping, nonterminating
- Network Interface:
- 10/100 Ethernet (RJ-45)
- Embedded web server for remote control
- VTECS™ protocol for Remote Control Panel
- User Interface: Alphanumeric display, with dedicatedbuttons
- Control:
- GPI in/out, 9-pin D-connector
- RS-422, Sony 9-pin protocol (reserved for future use)
- Size (WxDxH): 17.25" x 12.5" x 1.75" iRU (438.1mm x317.5mm x 44.4mm)
- Weight: 6.5 lb (2.94 kg)
- Power: 100-240 VAC 50/60 Hz (dual, redundant powersupplies), 25W typical; 30W max. 15A max.
- Environment:
- Safe Operating Temperature: 0°-40° C (32°-104° F)
- Safe Storage Temperature (Power OFF): -40°-60° C (-40°-140° F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: < 3,000 meters (< 10,000 feet)
