AJA Video Systems Inc CRV88-9-S-NF
8-lane PCIe 2.0, 8 x SDI, Fanless Version

OUR PART #:  CRV88-9-S-NF

The AJA Video Systems CRV88-9-S-NF is a fanless...
Learn More
Our Price: $2,795.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc CRV88-9-S-NF
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

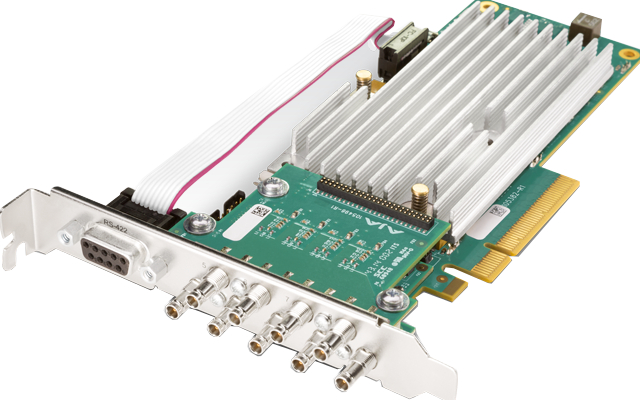

The AJA Video Systems CRV88-9-S-NF is a fanless, low profile PCIe bracket with 2" cables that allows the user to configure each SDI connection individually as input or output and mix formats for up to eight HD or SD channels on a single card. As demand rises for higher resolutions, combine SDI connections into a single 4K/UHD channel, allowing incredible flexibility and futureproofing with playout and ingest servers or channel-in-a-box systems.

AJA Video Systems CRV88-9-S-NF Features:

  • PCIe Express Gen 2.0 8-lane
  • Up to eight independent channels 3G, HD, SD-SDI I/O
  • All SD/HD/2Kx1080/4K video formats
  • 3G input/output for High Frame Rate (HFR) support.
  • 8/10-bit YCbCr and 12-bit RGB frame buffer formats
  • Four independent Mixer/Keyer widgets.
  • Eight independent 16-ch 48kHz SDI embedded audio I/Oengines
  • Analog Color Black or HD Tri-Level Sync
  • 3-year warranty
  • 2" 1.0/2.3 Mini DIN to BNC adapters

AJA Video Systems CRV88-9-S-NF Specifications:

  • Video Formats:
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (HD) 1080i 25, 29.97, 30
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
    • (HD) 720p 50, 50.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Video Input Digital: Eight 3G-SDI BNC
  • Video Output Digital: Eight 3G-SDI BNC
  • Audio Input Digital: 16-Channel 24-bit SDI embedded,48 kHz synchronous
  • Audio Output Digital: 16-Channel 24-bit SDI embedded,48 kHz synchronous
  • Size (w x d x h): .875" x 7.25" x 4.875" (22.23mm ×184.15mm × 123.83mm)
  • Weight: 0.4 lb (0.2 kg)
  • Power: 17 watts typical, 19 watts max
  • Environment:
    • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
    • Airflow across the board for fanless models
      • 100LFM @25deg C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink
