AJA Video Systems Inc CRV44-S-NCF
8-lane PCIe 2.0, 4 x SDI, Fanless Version with No Cables

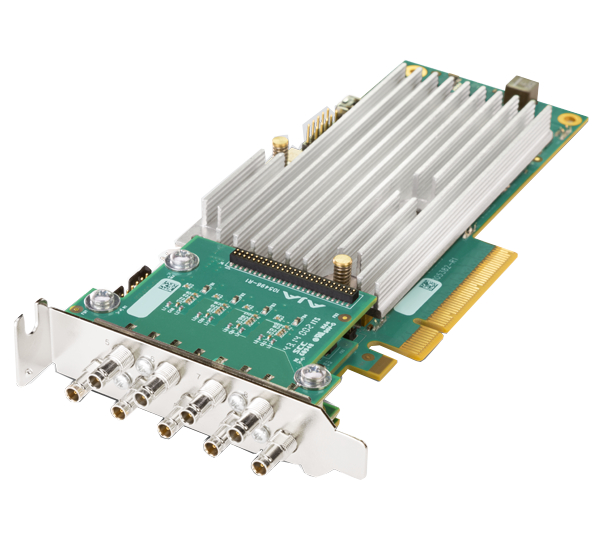

The AJA Video Systems CRV44-S-NCF is a fanless, low profile PCIe bracket with no cables that allows the user to configure each SDI connection individually as input or output and mix formats for up to 4 HD or SD channels on a single card. As demand rises for higher resolutions, combine SDI connections into a single 4K/UHD channel, allowing incredible flexibility and future proofing.

AJA Video Systems CRV44-S-NCF Features:

• Up to four independent bidirectional channels
• 3G-SDI input/output for High Frame Rate (HFR) support
• All 4K/2K/HD/SD video formats
• 8 or 10-bit YCbCr and 12- bit RGB frame buffer formats
• Two independent Mixer/Keyer widgets.
• Four independent 16-Ch 48 kHz SDI embedded audio I/O engines
• Switchable LTC/Reference input connection
• Analog Color Black or HD Tri level Sync
• 8-lane PCI 2.0 interface
• Full height and half height models
• RS-422 on internal header or bracket (on Full heightmodel)
• LTC input on internal header
• 3 year warranty

AJA Video Systems CRV44-S-NCF Specifications:

• Video Formats:
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (HD) 1080i 25, 29.97, 30
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
  • (HD) 720p 50, 50.94, 60
  • (SD) 625i 25
  • (SD) 525i 29.97
• Video Input Digital: Four 3G-SDI BNC
• Video Output Digital: Four 3G-SDI BNC
• Audio Input Digital: 16-Channel 24-bit SDI embedded, 48kHz synchronous
• Audio Output Digital: 16-Channel 24-bit SDI embedded,48 kHz synchronous
• Size (w x d x h): .875" x 7.25" x 4.875" (22.23mm ×184.15mm × 123.83mm)
• Weight: 0.4 lb (0.2 kg)
• Power: 17 watts typical, 19 watts max
• Environment:
  • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
  • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
  • Airflow across the board for fanless models
    • 100LFM @25deg C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink
