Product Overview

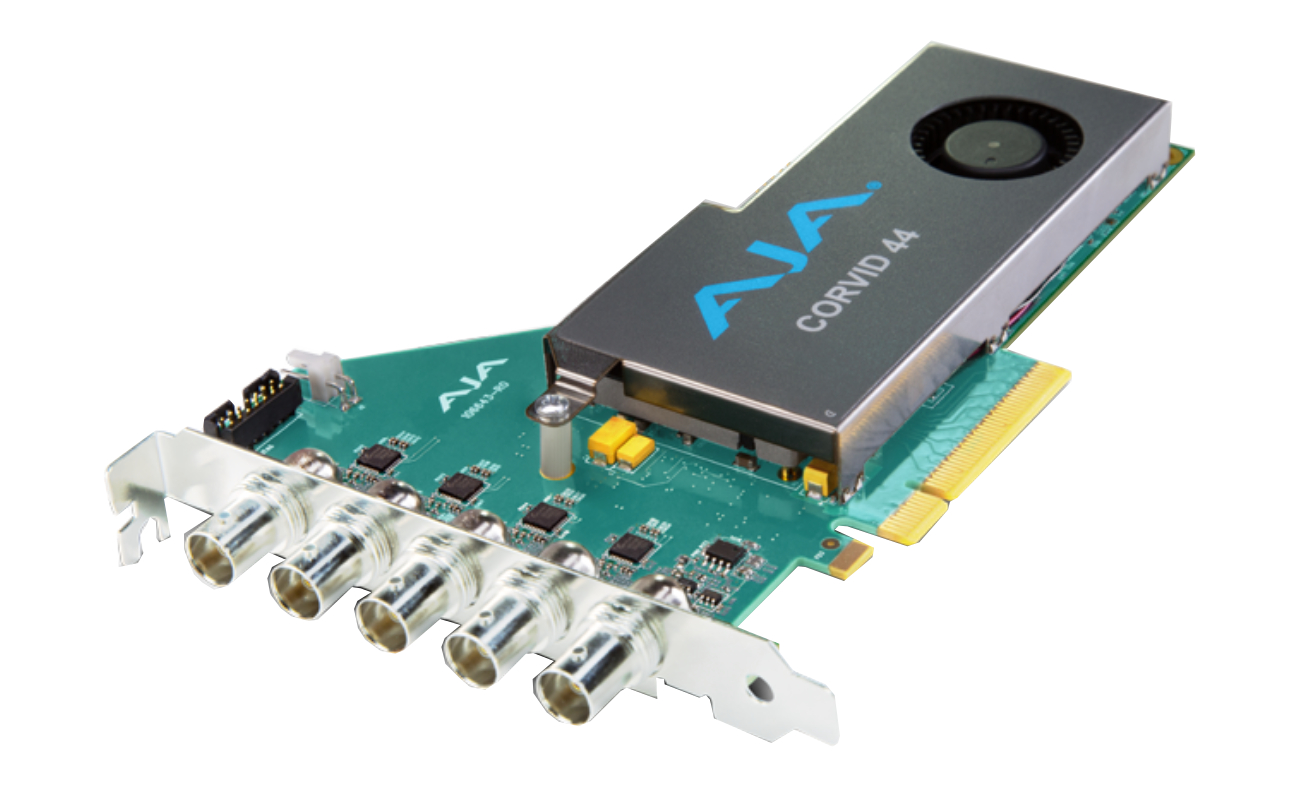

Increase your video and audio I/O capacity with AJA Video Systems' Corvid 44 BNC with 3G-SDI connectivity over full size BNC connectors. Configure each SDI connection individually as input or output and mix formats for up to 4 HD or SD channels on a single card. As demand rises for higher resolutions, combine SDI connections into a single 4K/UHD channel, allowing incredible flexibility and future proofing.
Features
- PCIe Express Gen 2.0 8-lane
- Up to four independent channels 3G, HD, SD-SDI I/O(Channels must use the same master clock. Eg, 29.97 and 59.94)
- All SD/HD/2Kx1080/4K video formats
- 3G input/output for High Frame Rate (HFR) support.
- 8/10-bit YCbCr and 12- bit RGB frame buffer formats
- Two independent Mixer/Keyer widgets
- Four independent 16-ch 48kHz SDI embedded audio I/Oengines
- Analog Color Black or HD Tri-Level Sync
- 3-year warranty
Specifications
- Video Formats:
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
- (HD) 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1080i 25, 29.97, 30
- (HD) 720p 50, 50.94, 60
- (SD) 625i 25
- (SD) 525i 29.97
- Video Input Digital: Four 3G-SDI BNC
- Video Output Digital: Four 3G-SDI BNC
- Audio Input Digital: 16-Channel 24-bit SDI embedded,48 kHz synchronous
- Audio Output Digital: 16-Channel 24-bit SDI embedded,48 kHz synchronous
- Size (WxDxH): 0.727" × 6.6” × 2.713” (18.47mm ×167.65mm × 68.90mm)
- Weight: 0.4 lb (0.2 kg)
- Power: 17 watts typical, 19 watts max
- Environment:
- Safe Operating Temperature: 32°-104°F (0°-40°C)
- Safe Storage Temperature (Power OFF): -40°-140°F (-40°-60°C)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: < 3,000 meters (< 10,000 feet)
- Airflow across the board for fanless models
- 100LFM @25°C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink
