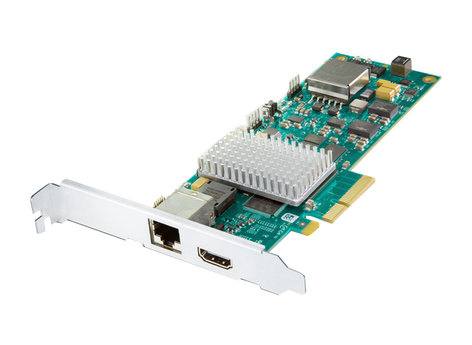

AJA Video Systems Inc CORVID-HB-R
4-lane PCIe 2.0 I/O HDBaseT Receiver Card

OUR PART #:  CORVID-HB-R

The AJA Video Systems Inc. Corvid HB-R uses a single Cat5e/6 cable as input, the Corvid HB-R receives up to 4K/60p video (8-bit 4:2:0) and 8-Channel embedded audio.
Learn More
Our Price: $995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc CORVID-HB-R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA Video Systems Inc. Corvid HB-R uses a single Cat5e/6 cable as input, the Corvid HB-R receives up to 4K/60p video (8-bit 4:2:0) and 8-Channel embedded audio. It also delivers bi-directional VISCA/RS-232 control plus power up to 10W, and Corvid HB-R provides full-time looped HDMI 1.4b output of the signal received via the HDBaseT input. These features also make the Corvid HB-R the perfect desktop and server companion to AJA’s RovoCam, the UltraHD HDBaseT camera.

AJA Video Systems Inc. CORVID-HB-R Features:

  • PCIe Gen 2.0 4-lane
  • Supports up to 4K/60p 8-bit 4:2:0 video
  • 8-Channel HDMI embedded audio I/O
  • Supports 2-Channel discrete mic audio when used with RovoCam
  • Bi-directional VISCA/RS-232 control over HDBaseT
  • Up to 10W power over HDBaseT
  • HDMI 1.4b full-time looped output
  • Supports Linux V4L2 drivers
  • 3-year warranty

AJA Video Systems Inc. CORVID-HB-R Specifications:

  • Video Formats:
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096 x 2160p 50, 59.94, 60 (8-bit 4:2:0)
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160p 50, 59.94, 60 (8-bit 4:2:0)
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048 x 1080p 50, 59.94, 60
    • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1080p 50, 59.94, 60
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 50, 59.94, 60
    • (HD) 720p 50, 59.94, 60
    • (SD) 525i 29.97
    • (SD) 625i 25
  • Digital Video Input:
    • HDMI v1.4 over HDBaseT
      • Video over HDBaseT
        • 24/30/36 bits/pixel, RGB or YUV
        • 300 MHz pixel clock maximum
        • 3.4 Gb TMDS data rate maximum per lane providing an aggregate 10.2Gbps total bandwidth
        • UltraHD/2K/HD/SD
        • No support for HDCP encrypted video
  • Digital Video Output:
    • HDMI Output
      • Active looped output of HDMI received on HDBaseT input
      • No EDID interface
      • No support for HDCP encrypted video
      • Video out electronic copy of video negotiated at CORVID-HB-R HDMI receiver input
  • Digital Audio Input:
    • Audio over HDBaseT
      • 8-Channels embedded audio
      • 2-Channels discrete RovoCam microphone audio
  • RS-232:
    • Serial port over HDBaseT: 115200 Baud interface intended for VISCA camera control
  • USB over HDBaseT: USB Host intended for Camera firmware updates
  • Interface: 4-lane PCIe 2.0
  • Size (W x D x H):
    • Conforms to PCIe Card Electromechanical Specification Rev 1.0A Low Profile Add-in Card
    • Without bracket:  6.7” x 2.7” x 0.7” (170mm x 69mm x 18mm), bracket is standard full height PCIe card size
  • Power: 10-20V, 10W typical for card only, 16W typical when powering Rovocam, 18W max
  • Power Support:
    • Power over HDBaseT
      • Support for up to 10W output maximum via IEEE 802.3AF interface
  • Environment:
    • Safe Operating Temperature: 32°-104°F (0°-40°C)
    • Safe Storage Temperature (Power OFF): -40°-140°F (-40°-60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
