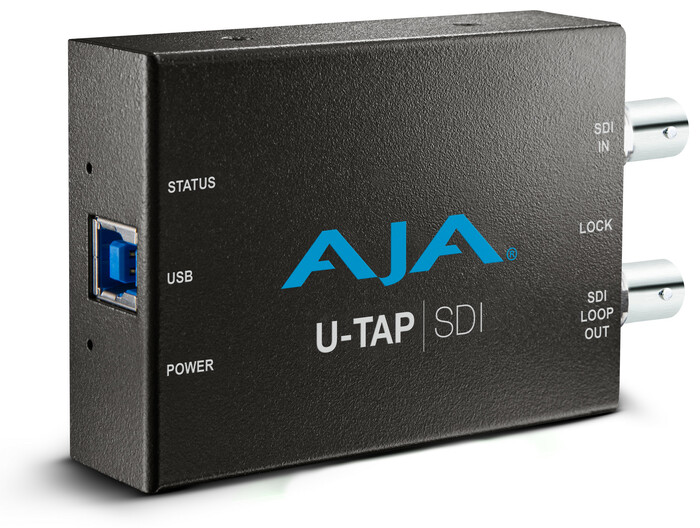

AJA Video Systems Inc U-TAP SDI
HD/SD USB 3.0 Capture Device with 3G-SDI Input

OUR PART #:  U-TAP-SDI

The AJA U-TAP SDI integrates USB 3.0 connectivity, including bus power and the ability to easily and simply bring in video and audio through SDI...
Learn More
Our Price: $345.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc U-TAP SDI
Qty:
In Stock

Similar Products

The AJA U-TAP SDI integrates USB 3.0 connectivity, including bus power and the ability to easily and simply bring in video and audio through SDI, for use with a wide array of software, and with no need for any special installed drivers, to empower your projects anywhere you travel.

U-TAP
Compact and easy to use, the AJA U-TAP units connect directly to your computer system using USB 3.0, which gives the simplest implementation ever, with no need to install special drivers, as well as exceptional software compatibility. These products offer portable, easy, and cost effective solutions for plug and play capture that's compatible with Mac OS X, Windows, and Linux operating systems, as well as a broad range of creative applications. So, from video conferencing, to streaming, to traditional postproduction and much more, U-TAP delivers powerful functionality with no need for any third party driver software.

Pocket Power to Go
U-TAP SDI is super compact—smaller than a smart phone—and is remarkably useful to have with you in the field, on-set, or in-studio, where USB connectivity provides a quick, easy way to obtain SDI sources for capture, and eliminating the need to install additional software drivers. It's small enough to carry anywhere with you, and its bus-powered USB connectivity ensures you'll never have to be looking for a power source.

U-TAP SDI will support frame rates up to 1080p 60, for your HD High Frame Rate (HFR) projects—great for live events and fast moving subjects.

Software Compatibility
U-TAP SDI is UAC and UVC compatible on Windows, Mac, and Linux, so there's no need for additional drivers. This also ensures compatibility with a wide variety of professional software applications, along with seamless integration between the native software and AJA's high quality hardware, allowing you to focus on the work, not the technology.

AJA U-TAP SDI Technical Specifications:

  • Video Formats:
    • Video:
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920 x 1080i 25, 29.97, 30
      • (HD) 1280 x 720p 50, 59.94, 60
      • (SD) 625i 25
      • (SD) 525i 29.97
    • Scaled:
      • 1920 x 1200p 25, 29.97, 30, 50, 59.94, 60
      • 1920 x 1080p 25, 29.97, 30, 50, 59.94, 60
      • 1280 x 720p 25, 29.97, 30, 50, 59.94, 60
      • 1024 x 576p 25, 29.97, 30, 50, 59.94, 60
      • 856 x 480p 25, 29.97, 30, 50, 59.94, 60
      • 768 x 576p 25, 29.97, 30, 50, 59.94, 60
      • 720 x 576p 25, 29.97, 30, 50, 59.94, 60
      • 720 x 480p 25, 29.97, 30, 50, 59.94, 60
      • 640 x 480p 25, 29.97, 30, 50, 59.94, 60
      • 640 x 360p 25, 29.97, 30, 50, 59.94, 60
  • Host Interface: USB 3.0/USB 2.0 UVC/UAC compliant
  • Video Input Digital: 3G-SDI, SMPTE-259/292/424, 4:2:2 (1 x BNC)
  • Video Loop Output: 1 x 3G-SDI (1 x BNC)
  • Audio Input Digital: 2-Channel, SDI embeddedaudio, 48 kHz sample rate
  • Physical:
    • Dimensions (WxDxH): 4.1" x 2.4" x 1.0" (103 x 61 x 25mm)
    • Weight: 0.3 lb (0.2 kg)
  • Power:
    • 5V USB bus-powered
    • 6.5W max
  • Environment:
    • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
    • Operating Relative Humidity: 10-90% non-condensing
    • Operating Altitude: <10,000ft (<3,000m)
