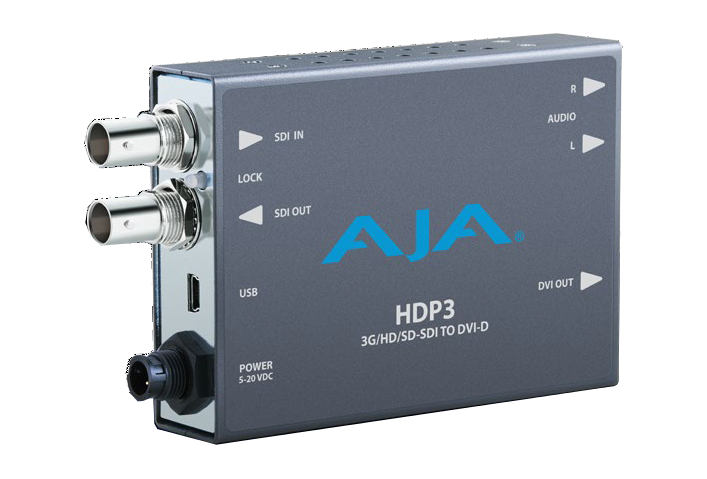

AJA HDP3-R0 3G-SDI to DVI-D and Audio Converter

Designed for general monitoring, the HDP3-R0 from AJA is a miniature 3G/HD/SD-SDI to DVI-D converter for digital display devices (graphics and video), such as LED, LCD, DLP and Plasma monitors (and projectors) with support for 1080p60. Using a high quality scaling engine and deinterlacer, the HDP3 will automatically size 4:3 or 16:9 inputs to many DVI-D monitors. For appropriate monitor configurations, scaling is automatically 1 to 1.

Where appropriate, the HDP3 can automatically adapt the input frame rate for monitor compatibility. In addition, the HDP3 provides 8 channel embedded audio over HDMI, 2 channel analog audio monitoring, and a looping output of the SDI input. AJA Scaling converters provide high quality conversion for an entire source image for a range of needs, whether from 4K to HD, up, down or cross-conversion between SD and HD formats or even HD to DVI conversion for driving DVI monitors from video sources.

Applications

General post-production reference monitoring

Client monitoring

Presentation

Projection

Corporate displays

Kiosk

Features

• HD-SDI/SDI to DVI-D
• HDMI 1.3a support (via DVI-D connector), including: - Deep Color 30-bit video (24-bit also supported) - 2 or 8 channels of embedded audio
• Automatically adapts to popular LCD/ DLP/Plasma monitors (and projectors) up to 1920x1200 and 1080p
• High quality scaling engine for proper display of 4:3 or 16:9 content-even better quality than original HDP
• 1 to 1 scaling for appropriate monitor configurations
• 2-channel RCA analog audio output (user-assignable channels)
• HD-SDI/SDI looping output
• Setup via PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)
• Five year warranty

Specifications

• NOTE: Please refer to the documentation tab for this data.
