DPA Microphones FIO66F34-2-IE1
d:fine Omni In-Ear Broadcast Headset, 2-Ear Mount, 1-In-Ear Monitor, Beige

OUR PART #:  FIO66F34-2-IE1-B

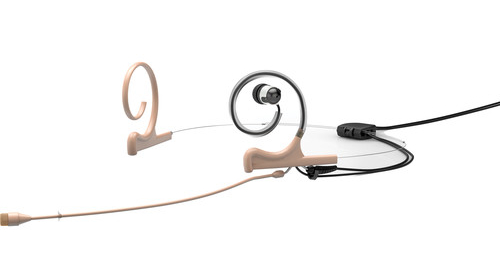

The DPA Microphones FIO66F34-2-IE1-B is a d:fine omnidirectional in-ear headset that features 2-ear mount, one in-ear monitor with hardwired 3.5 mm connector.
Learn More
Our Price: $905.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones FIO66F34-2-IE1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA Microphones FIO66F34-2-IE1-B is a d:fine omnidirectional in-ear headset that features 2-ear mount, one in-ear monitor with hardwired 3.5 mm connector. The FIO66F34-2-IE1-B Omnidirectional Headset Microphone offers clean and transparent sound quality with lots of headroom.

The headset construction is unique. Users can detach the mic boom from the headset mount to switch it to either the left or right side and then reattach it. Humidity, often an issue in theatrical applications, is not a problem. This microphone is constructed with a double-vent protection system and a drop stopper on the microphone boom. Also, the materials inside the mic are water resistant. These design elements make it very difficult for the microphone to fail due to humidity. In addition, the headset surface is matte-gold plated and the ear hooks are covered with a silicone hose.

DPA Microphones FIO66F34-2-IE1 Features:

  • Resistant to humidity
  • Available in three colors and three sizes
  • Modular adapter system fits most professional wirelesssystems
  • Microphone and in-ear monitor integrated in one unique solution

DPA Microphones FIO66F34-2-IE1 Specifications:

  • Directional Pattern: Omnidirectional
  • Principle of Operation: Pressure
  • Cartridge Type: Pre-polarized condenser
  • Frequency Range: 20 Hz - 20 kHz
  • Frequency Range, +/- 2 dB: Soft boost grid: 20 Hz - 20kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dBboost at 12 kHz
  • Sensitivity, Nominal, +/- 3 dB at 1 kHz: 6 mV/Pa; -44dB re. 1 V/Pa
  • Equivalent Noise Level, A-weighted: Typ. 26 dB(A) re.20 µPa (max. 28 dB(A))
  • Equivalent Noise Level, ITU-R BS.468-4: Typ. 38 dB(max. 40 dB)
  • S/N Ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):68 dB (A)
  • Total Harmonic Distortion (THD): < 1% THD up to 123dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
  • Max. SPL, peak before clipping: 144 dB
  • Output Impedance: 30 - 40  Ohm
  • Cable Drive Capability: Up to 300 m (984 ft)
  • Color: Beige
  • Cable Diameter: 1.6 mm (0.06 in)
  • Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
  • Temperature Range: -40°C to 45°C (-40°F to 113°F)
  • Relative Humidity (RH): Up to 90%
