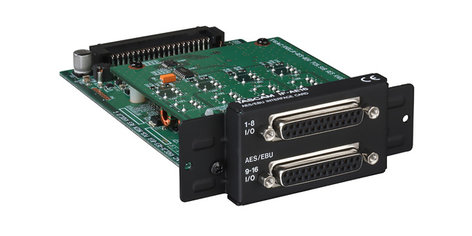

Tascam IF-AE16 6-Channel AES/EBU Interface Card for DA-6400/DA-6400dp Recorders

The IF-AE16 from TASCAM is an optional 16-Channel AES/EBU input/output (I/O) expansion interface card engineered to plug into one of the 2 provided interface slots on the TASCAM DA-6400/DA-6400dp digital recorders (sold separately). Installing 2 AES/EBU interface cards (one in each expansion slot) increases the maximum number of simultaneous I/O to 32 channels – even at 96 kHz/24-bit resolution.

Features

• Capable of sending and receiving up to 16 channels of uncompressed digital audio signals in 44.1/48/88.2/96 kHz, 24-bit formats
• (2) 8-channel D-sub 25-pin AES/EBU digital outputs (channels 1-8 and 9-16)
• Built-in sample rate converter for inputs

Specifications

• Format: AES / EBU
  • 44.1k / 48k / 88.2k / 96kHz, 24-bit (Transmission is at double-speed when 88.2 or 96kHz is selected)
• I/O (1x Fs): 16 (32 I/O supported when 2 cards used)
• Number of channels: 16
• Digital audio input/output: AES / EBU 1-8 I/O, AES / EBU 9-16 I/O
• Connectors: 2 × 8-channel 25-pin D-sub (female)
• Locking screws: No.4-40 UNC (inch type)
• Pin assignments: TASCAM Pin assignments
• Input frequencies:
  • 44.1k / 48k / 88.2k / 96kHz (when sampling rate converter OFF)
  • 32k to 192kHz (when sampling rate converter ON)
• Input format: (*Data format only. Physical formats comply with AES3-2003/IEC60958-4 (AES/EBU))
  • AES3-2003 / IEC60958-4 (AES/EBU)
  • IEC60958-3 (S/PDIF)
• Output format: AES3-2003 / IEC60958-4 (AES/EBU)
• Dimension: 107(W)×40(H)×161.5(D)mm
• Weight: 222g
