DB Technologies LVX8 8" 2-Way Active Speaker, 400W, DSP

OUR PART #: LVX-8 MFR #: LVX-8

Copied to clipboard

LVX active loudspeakers series is the answer to all those fixed installations and live music requirements where sound reinforcement systems must be lightweight, stylish... ...Read more

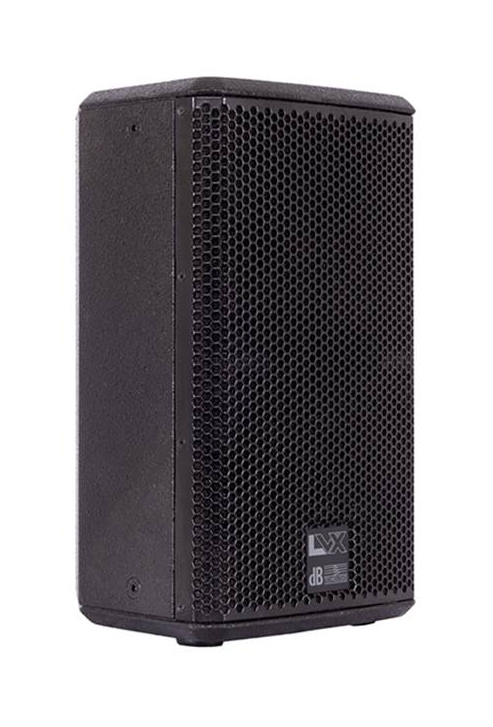

DB Technologies LVX8 8" 2-Way Active Speaker, 400W, DSP Image 1
DB Technologies LVX8 8" 2-Way Active Speaker, 400W, DSP Image 2
DB Technologies LVX8 8" 2-Way Active Speaker, 400W, DSP
Our Price: $823.00
List Price: $977.00
You save 16%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$23/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

LVX active loudspeakers series is the answer to all those fixed installations and live music requirements where sound reinforcement systems must be lightweight, stylish, portable, powerful and in line with the highest professional standards. Coming from the experience gained in designing touring products as the renowned DVX series, the new LVX series offers smart solutions with a special attention to the needs of fixed and portable installations.

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance. Four models available: LVX 8, 10, 12 and 15. The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45°

The LVX series uses DIGIPRO® series digital amplifiers with powers ranging from 400W (LVX 8 and 10) to 800W PRG (LVX 12 and 15). These highly efficient amplifiers provide high power, limited weight and are totally silent due to the low thermal dissipation and no cooling fans required. The digital preamp with DSP controls audio crossover, frequency response, dual active peak-RMS- thermal limiter, and acoustic alignment. A selector enables to select one of two different equalizations - “FLAT” or “PROCESSED” - to provide the right sound in any occasion.

DB Technologies LVX 8 Specifications:

  • Technical Data:
    • Speaker Type: 2-Way Active Speaker
  • Acoustical Data:
    • Frequency Response [-10 dB]: 65 - 20.000 Hz
    • Frequency Response [-6 dB]: 80 - 19.000 Hz
    • Max SPL: 121 dB
    • HF: 1"
    • Directivity: 90 x 70°
    • Horn: Rotatable CD Horn
    • LF: 8"
  • Amplifier:
    • Amp Technology: Digipro® G2
    • Amp Class: Class-D
    • Peak Power: 800W
    • PRG Power: 400 W
  • Processor:
    • Controller: DSP 24bit/48kHz
    • System Presets: Flat, Processed
    • Limiter: Dual Active Peak, RMS, Thermal
    • Crossover Frequency LF-HF: 2050 Hz
    • Slope LF-HF: 24 dB/Octave
  • Mechanics:
    • Housing: MDF
    • Angles Up: Monitor use 40°
    • Handles: 1x top side, recessed
    • Rigging points: 10 x M8
    • Pole Mount: D36 mm
    • Dimensions (W x H x D): 260 x 420 x 260 mm (10.24 x 16.54 x 10.24 in)
    • Weight: 10.1 kg (22.27 lbs)
