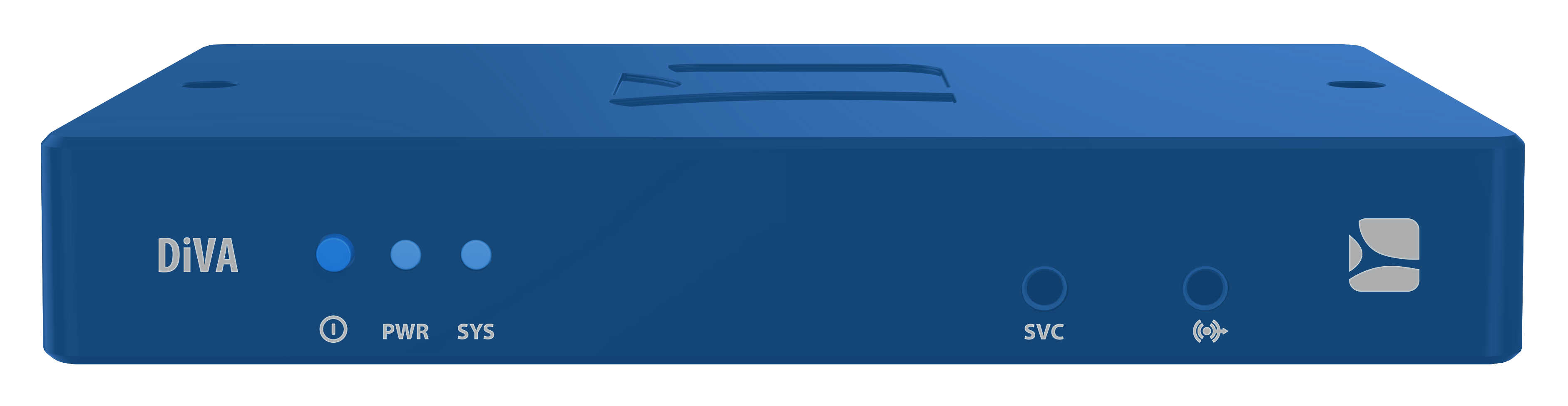

SpinetiX DIVA
Digital Signage Device for Single Screen


Our Price: $768.75
List Price: $769.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The SpinetiX DiVA is an all-in-one digital sinage solution. The DiVA has built-in web-based tools with ready to use Playouts and Apps for a single horizontal or vertical screen.

SpintiX DiVA Specifications:

  • Video: HDMI
  • Audio: Line level, stereo
  • USB port: Two USB 2.0
  • Network: Ethernet 1GbE, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3az
  • Power Supply: Input: 100-240V, 50-60Hz; Output: 5V DC 3.6A max
  • Size (WxHxD): 5.9" x 0.9" x 3.4" (150 x 23 x 86.5 mm)
  • Weight: 12.3 oz (350g)
  • Player Engine:
    • Layer composition: Background plus non-overlapping zones
    • Animation: Built-in playouts, apps
    • Text: Unicode support (international text); Bidirectional (right-to-left, left-to-right)
    • Fonts: Built-in fonts (Western, Cyrillic, Arabic, Greek, Hebrew, Chinese, Japanese, Korean, Thai, Hindi, etc.)
  • Formats:
    • Images: JPEG, PNG
    • Media file formats: MPG, MP4, M4V, MOV, WMV
    • Video codecs: Multi-video decoding capable, 1080p max; H.264/MPEG-4 AVC: HP@L4 MPEG-2: MP@HL MPEG-4: ASP; WM9/VC-1: AP@L3
    • Audio codecs: AAC-LC, HE-AAC; MPEG Layer I, II, III (MP3); WMAv2; AC3
    • Data feeds: Built-in RSS app
  • Display:
    • Aspect ratio: 16:9; Horizontal, vertical
    • Resolution: 1080p (1920x1080), 720p (1280x720) at 50/60 Hz
  • Network:
    • Protocols: DHCP, static IP, Zeroconf; IPv4, IPv6; Bonjour; HTTP
    • Remote configuration: Built-in HTTP server, RPC
    • Content transfer: Web browser upload (file size 2GB max.)
  • Storage: 8GB solid state
  • Processor: DaVinci DM8148 (ARM Cortex-A8 1GHz)
  • Memory: RAM: 1 GB, DDR3-1066; Bandwidth: 4.3GB/s
  • Power consumption: 8W
  • Operating conditions: Ambient temperature 32 - 104ºF / 0 - 40ºC; Relative humidity 10-90% noncondensing; Altitude 10,000ft / 3,000m max.
  • Storage temperature: -4- 122ºF (-20 - 50ºC)
  • Real-time clock (RTC): Accuracy ±1 min./month; Backup by supercap (40 days)
  • Tools: Built-in web-based content creation and scheduling tools
  • Warranty: 3 Year Limited Hardware Warranty
