Juice Goose JG 8LED 1U Power and Light Module

OUR PART #: JG8-LED MFR #: JG8-LED

Copied to clipboard

Part of the the Juice Goose JG Series of power and light modules, JG 8LED is a rack-mount power distributor featuring two slide-out LED light modules. ...Read more

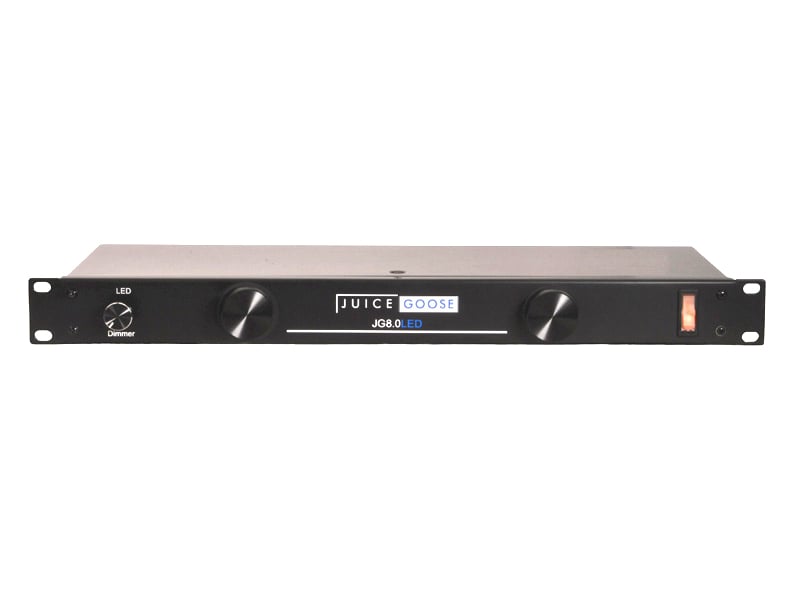

Juice Goose JG 8LED 1U Power And Light Module Image 1
Juice Goose JG 8LED 1U Power And Light Module Image 2
Juice Goose JG 8LED 1U Power And Light Module Image 3
Juice Goose JG 8LED 1U Power And Light Module
Our Price: $184.00
List Price: $216.00
You save 15%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Part of the the Juice Goose JG Series of power and light modules, JG 8LED is a rack-mount power distributor featuring two slide-out LED light modules. The long lasting, cool-to-the-touch LED lights are housed in anodized black aluminum tubes that slide into the chassis when not in use. Each light tube can be rotated and dimmed to control the direction and intensity of the light beam.

The unit also includes 8 switched AC power outlets on the back of the chassis. All are rotated to better accommodate "wall wart" power supplies and provide a full 1800 Watts of power. Discrete components inside provide a base level of equipment protection against AC power spikes without contaminating the ground line.

Specifications

  • Input Voltage: 120 VAC, 60 Hz
  • Technical Current Capacity: 12 Amps (80% of circuit breaker rating)
  • Current Overload Protection: Circuit Breaker, 15 Amp Thermal on Rear
  • Dimensions (H x W x D): 1.75" x 19" x 7" (4.45 x 48.26 x 17.8cm)
  • Weight: 6.5 lbs. (2.95 kg)
  • Chassis: Steel with aluminum light tubes
  • Power Cord: 6ft 16/3 SJT
  • Power Output Connectors: Eight NEMA 5-15, 15 Amp Rating
  • AC Line Filtration: Line and Neutral
  • Voltage Spike Protection: Line and Neutral
  • Note: specifications and further information can be found within the items located under the "Documentation" tab above.
